F28 — Assy Winch

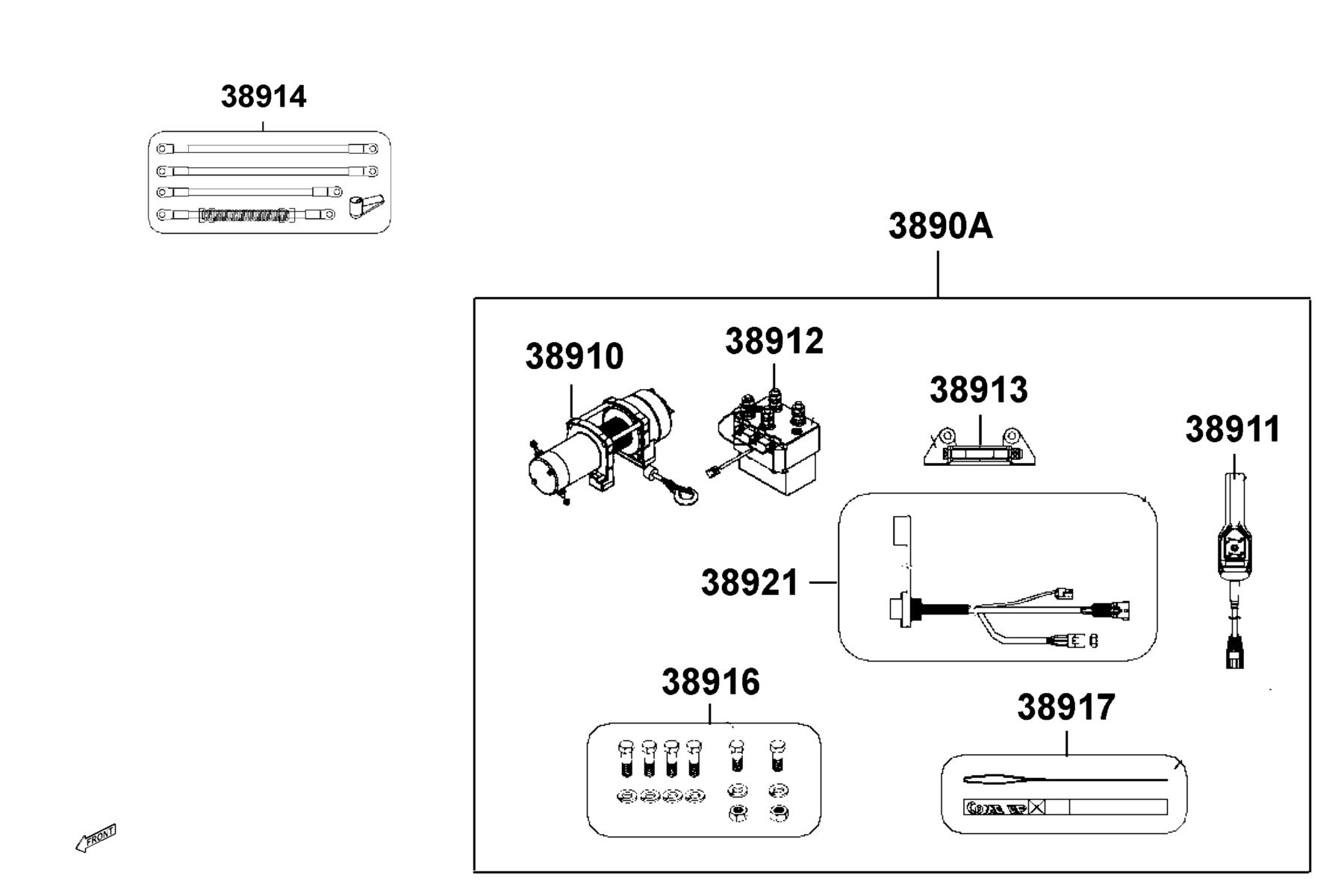

The Assy Winch diagram contains 9 genuine OEM parts for the KYMCO UXV 700i LE (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3890A-LEE8-650 | ASS'Y WINCH | 1 | $759.64 USD | View product → | |
| 2 | 38910-LFE9-E05 | WINCH COMP | 1 | $541.16 USD | View product → | |
| 3 | 38911-LEE8-600 | ROCKER SWITCH CABLE | 1 | $192.81 USD | View product → | |
| 4 | 38912-LFE9-E02 | RELAY ASSY WINCH | 1 | $431.31 USD | View product → | |
| 5 | 38913-LFE9-E02 | ROLLER FAIRLEAD | 1 | $308.52 USD | View product → | |
| 6 | 38914-LEE8-690 | POWER WIRE | 1 | $303.21 USD | View product → | |
| 7 | 38916-LFE9-E05 | HARDWARE WINCH | 1 | $54.66 USD | View product → | |
| 8 | 38917-LFE9-E02 | HOOK PART ACCESSORIES | 1 | $172.77 USD | View product → | |
| 9 | 38921-LEE8-600 | SWITCH WIRE ROCKER | 1 | $192.51 USD | View product → |
