F22 — Carrier Luggage

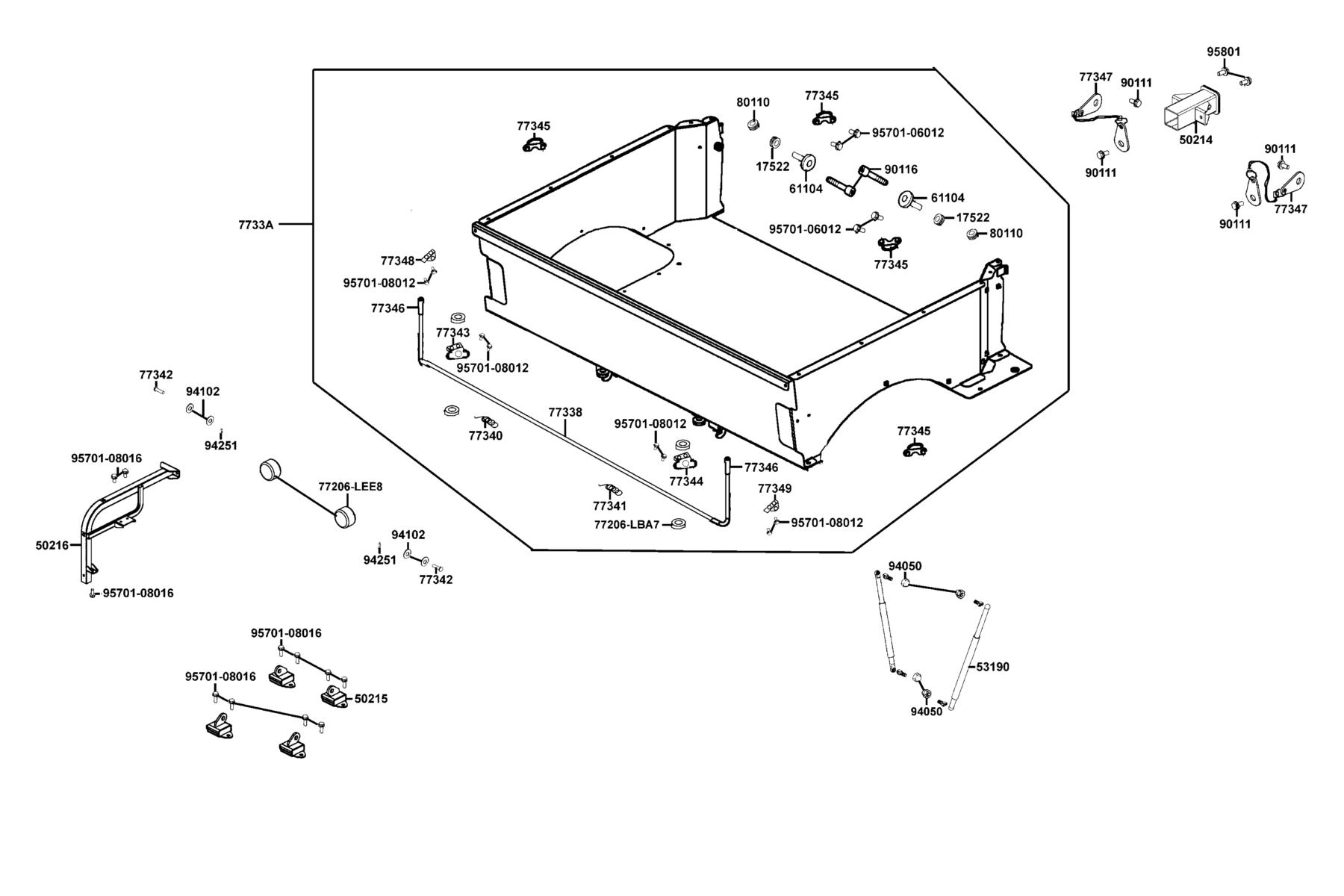

The Carrier Luggage diagram contains 30 genuine OEM parts for the KYMCO UXV 700i LE (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17522-LLB1-900 | RUBBER FUEL TANK | 2 | $9.39 USD | View product → | |
| 2 | 50214-LKC3-E00 | BRKT??? TRACTION | 1 | $158.91 USD | View product → | |
| 3 | 50215-LEE8-E00 | RUBBER DAMPER ENG | 4 | $78.81 USD | View product → | |
| 4 | 50216-LKC3-E01 | SUPPORT PIPE SEAT INSIDE | 1 | $131.52 USD | View product → | |
| 5 | 53190-LEE8-E00 | GAS DAMPER | 2 | $155.73 USD | View product → | |
| 6 | 61104-357-0010 | COLLAR FR FENDER | 2 | $11.19 USD | View product → | |
| 7 | 77206-LBA7-900 | RUBBER SEAT CUSH | 4 | $7.53 USD | View product → | |
| 8 | 77206-LEE8-E00 | RUBBER CARGO BED | 2 | $6.06 USD | View product → | |
| 9 | 77338-LEE8-E00 | BAR CARGO BED | 1 | $113.25 USD | View product → | |
| 10 | 7733A-LKM8-700 | CARGO BED ASSY | 1 | $905.30 USD | View product → | |
| 11 | 77340-LEE8-E00 | SPRING R CARGO BED | 1 | $24.03 USD | View product → | |
| 12 | 77341-LEE8-E00 | SPRING L CARGO BED | 1 | $24.03 USD | View product → | |
| 13 | 77342-LEE8-E00 | PIN CARGO BED | 2 | $18.24 USD | View product → | |
| 14 | 77343-LEE8-E00 | R BRKT OF BAR CARGO BED | 1 | $49.20 USD | View product → | |
| 15 | 77344-LEE8-E00 | L BRKT OF BAR CARGO BED | 1 | $49.20 USD | View product → | |
| 16 | 77345-LEE8-E00 | HOOK CARGO BED | 4 | $23.79 USD | View product → | |
| 17 | 77346-LEE8-E00 | SLEEVE CARGO BED | 2 | $27.39 USD | View product → | |
| 18 | 77347-LEE8-E00 | ROPE CARGO BED | 2 | $48.54 USD | View product → | |
| 19 | 77348-LEE8-E00 | STAY R CARGO BED HOOK | 1 | $35.52 USD | View product → | |
| 20 | 77349-LEE8-E00 | STAY L CARGO BED HOOK | 1 | $35.52 USD | View product → | |
| 21 | 80110-LDB5-900 | RUBBER FENDER | 2 | $3.66 USD | View product → | |
| 22 | 90111-1G87-001 | BOLT FLANGE 6MM | 4 | $10.14 USD | View product → | |
| 23 | 90116-KED9-900 | SCREW PAN 6X24(??????) | 2 | $6.39 USD | View product → | |
| 24 | 94050-08060 | NUT FLANGE 8MM | 4 | $5.31 USD | View product → | |
| 25 | 94102-12800 | WASHER PLAIN 12MM | 4 | $1.86 USD | View product → | |
| 26 | 94251-14000 | PIN LOCK 14MM | 2 | $5.94 USD | View product → | |
| 27 | 95701-06012-06 | BOLT FLANGE 6X12 | 4 | $1.86 USD | View product → | |
| 28 | 95701-08012-06 | BOLT FLANGE 8*12 | 8 | $6.24 USD | View product → | |
| 29 | 95701-08016-06 | BOLT FLANGE 8*16 | 11 | $4.53 USD | View product → | |
| 30 | 95801-10025-06 | BOLT FLANGE 10*25 | 2 | $12.09 USD | View product → |
