F13 — Air Cleaner

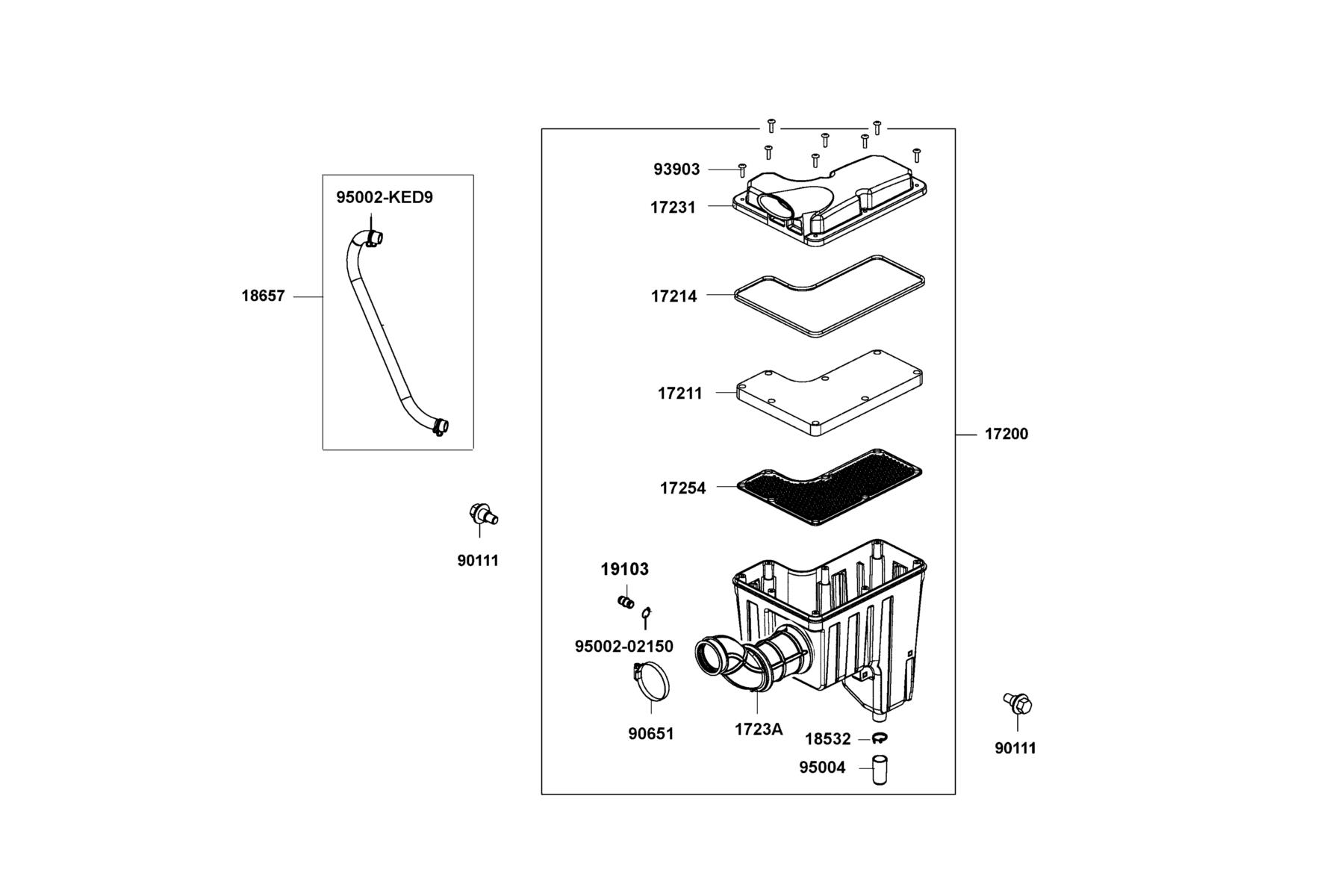

The Air Cleaner diagram contains 15 genuine OEM parts for the KYMCO UXV 700i LE (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17200-AGA6-M01 | AIR/C ASSY | 1 | $186.93 USD | View product → | |
| 2 | 17211-LKM8-E00 | ELEMENT COMP AIR/C | 1 | $122.97 USD | View product → | |
| 3 | 17214-LKM8-E00 | SEAL AIR/C INLET | 1 | $26.37 USD | View product → | |
| 4 | 17231-AKC2-M00 | COVER AIR/C | 1 | $56.76 USD | View product → | |
| 5 | 1723A-LKM8-E00 | CASE ASSY AIR/C | 1 | $198.99 USD | View product → | |
| 6 | 17254-LKM8-E00 | PUNCHING PLATE | 1 | $64.23 USD | View product → | |
| 7 | 18532-6D34-671 | CLIP AIR HOSE 21.5 | 1 | $4.53 USD | View product → | |
| 8 | 18657-LKM8-E00 | TUBE BREATHER | 1 | $39.39 USD | View product → | |
| 9 | 19103-LEC1-M00 | JOINT 3 WAY | 1 | $97.53 USD | View product → | |
| 10 | 90111-1G87-001 | BOLT FLANGE 6MM | 2 | $10.14 USD | View product → | |
| 11 | 90651-LEE8-E00 | BAND 63 | 1 | $37.83 USD | View product → | |
| 12 | 93903-25460 | SCREW TAPPING 5*20 | 8 | $4.26 USD | View product → | |
| 13 | 95002-02150 | CLIP B14.5 TUBE | 1 | $4.92 USD | View product → | |
| 14 | 95002-KED9-M30 | CLAMP D14.8 TUBE | 2 | $10.50 USD | View product → | |
| 15 | 95004-LBA7-900 | TUBE DRAIN | 1 | $16.41 USD | View product → |
