E06 — Driven Pulley

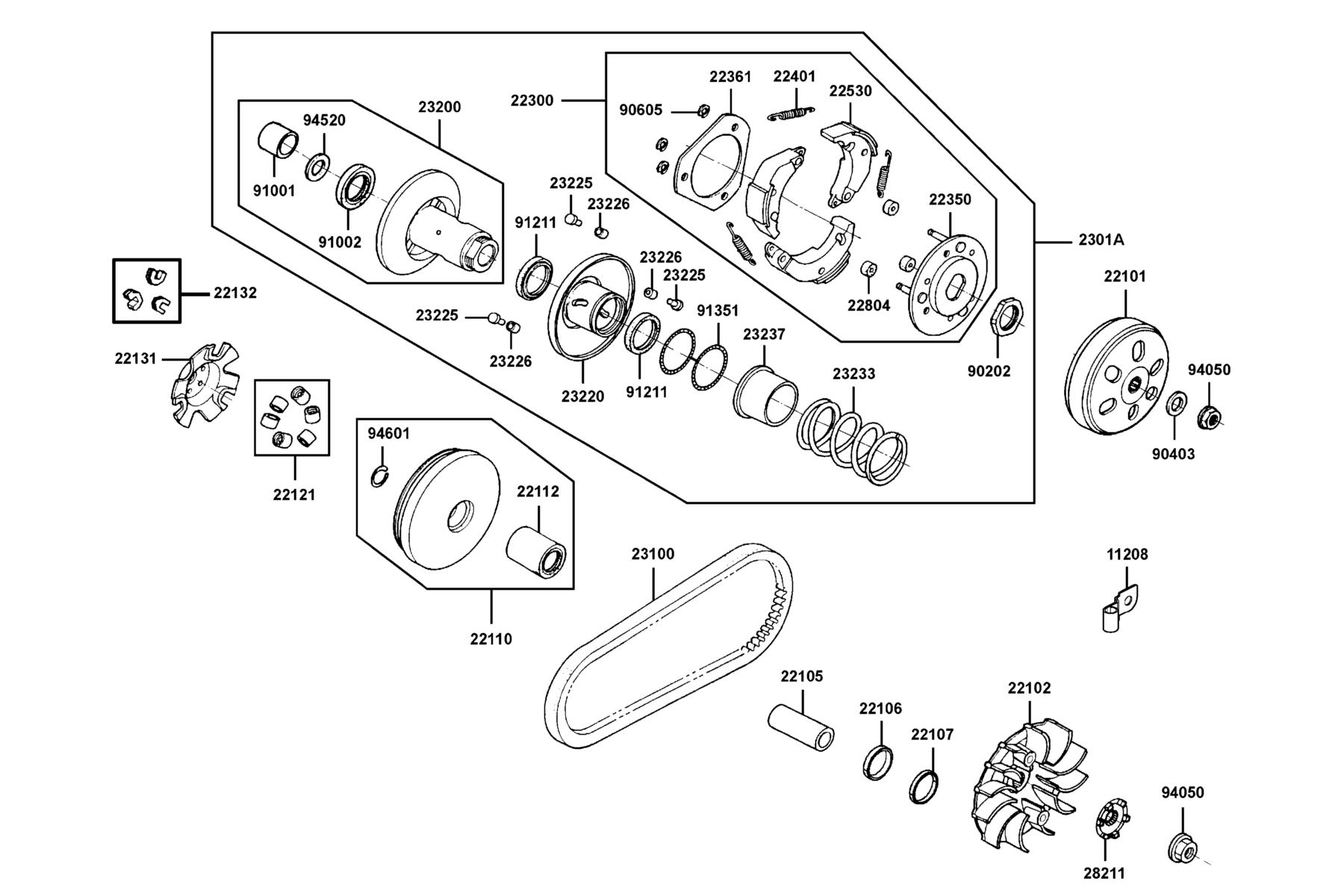

The Driven Pulley diagram contains 36 genuine OEM parts for the KYMCO MXU 150X 2021MY EPA(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11208-LLB1-900 | CLAMPER CARB DRAIN | 1 | $3.60 USD | View product → | |
| 2 | 22101-KEBE-900 | OUTER CLUTCH | 1 | $165.81 USD | View product → | |
| 3 | 22102-KKC3-900 | FACE DRIVE | 1 | $75.60 USD | View product → | |
| 4 | 22105-LLB1-910 | BOSS DRIVE FACE | 1 | $40.98 USD | View product → | |
| 5 | 22106-LLB1-910 | COLLAR DRIVE FACE A | 1 | $15.45 USD | View product → | |
| 6 | 22107-PWA8-900 | COLLAR DRIVE FACE | 1 | $10.50 USD | View product → | |
| 7 | 22110-KKC3-900 | FACE COMP MOVABLE DRIVE | 1 | $101.91 USD | View product → | |
| 8 | 22112-KAAA-900 | COLLAR DRIVE FACE | 1 | $14.01 USD | View product → | |
| 9 | 22121-KAAA-305 | ROLLER SET WEIGHT (1SET:6PCS) | 1 | $56.22 USD | View product → | |
| 10 | 22131-KAAA-900 | PLATE RAMP | 1 | $53.61 USD | View product → | |
| 11 | 22132-KGN7-305 | PIECE SLIDE SET(1SET:3PCS) | 1 | $8.49 USD | View product → | |
| 12 | 22300-LLB1-900 | PLATE ASSY DRIVE | 1 | $122.55 USD | View product → | |
| 13 | 22350-KGN7-671 | PLATE COMP DRIVE | 1 | $148.02 USD | View product → | |
| 14 | 22361-LGE7-E00 | PLATE CLUTCH SIDE | 1 | $13.77 USD | View product → | |
| 15 | 22401-LLB1-900 | SPRING CLUTCH | 3 | $8.67 USD | View product → | |
| 16 | 22530-LLB1-900 | WEIGHT CLUTCH | 3 | $47.91 USD | View product → | |
| 17 | 22804-GGB2-001 | RUBBER CLUTCH DAMPER | 3 | $8.19 USD | View product → | |
| 18 | 2301A-LLB1-900 | PULLEY SUB ASSY | 1 | $322.02 USD | View product → | |
| 19 | 23100-LLB1-90B | BELT DRIVE | 1 | $124.56 USD | View product → | |
| 20 | 23200-KEBE-900 | FACE ASSY DRIVEN | 1 | $173.16 USD | View product → | |
| 21 | 23220-LLB1-900 | FACE COMP MOVABLE DRIVEN | 1 | $160.92 USD | View product → | |
| 22 | 23225-GHC8-004 | PIN ROLLER GUIDE | 3 | $4.92 USD | View product → | |
| 23 | 23226-GHC8-004 | ROLLER GUIDE | 3 | $4.92 USD | View product → | |
| 24 | 23233-KGN7-671 | SPG DRIVEN FACE | 1 | $62.04 USD | View product → | |
| 25 | 23237-KHG8-901 | COLLAR SEAL | 1 | $29.22 USD | View product → | |
| 26 | 28211-KFC8-900 | RATCHET KICK STARTER | 1 | $43.35 USD | View product → | |
| 27 | 90202-KGN7-671 | NUT SPECIAL 28MM | 1 | $15.84 USD | View product → | |
| 28 | 90403-KGN7-671 | WASHER THRUST 28X44X1.5 | 1 | $14.73 USD | View product → | |
| 29 | 90605-1F66-721 | CIR CLIP 7MM | 3 | $4.92 USD | View product → | |
| 30 | 91001-GFY6-90A | BRG NDL 20*29*18 | 1 | $70.02 USD | View product → | |
| 31 | 91002-GGA7-70A | BRG BALL RADIAL 6902U | 1 | $51.27 USD | View product → | |
| 32 | 91211-KEBE-900 | SEAL DRIVEN FACE 34X41X4 | 2 | $37.41 USD | View product → | |
| 33 | 91351-6B42-000 | O-RING PINION CAP | 2 | $14.70 USD | View product → | |
| 34 | 94050-12080 | NUT FLANGE 12MM | 2 | $4.92 USD | View product → | |
| 35 | 94520-28000 | CIR CLIP IN 28 | 1 | $4.92 USD | View product → | |
| 36 | 94601-33000 | CLIP PISTON PIN 33MM | 1 | $4.92 USD | View product → |
