F13 — Exhaust Muffler

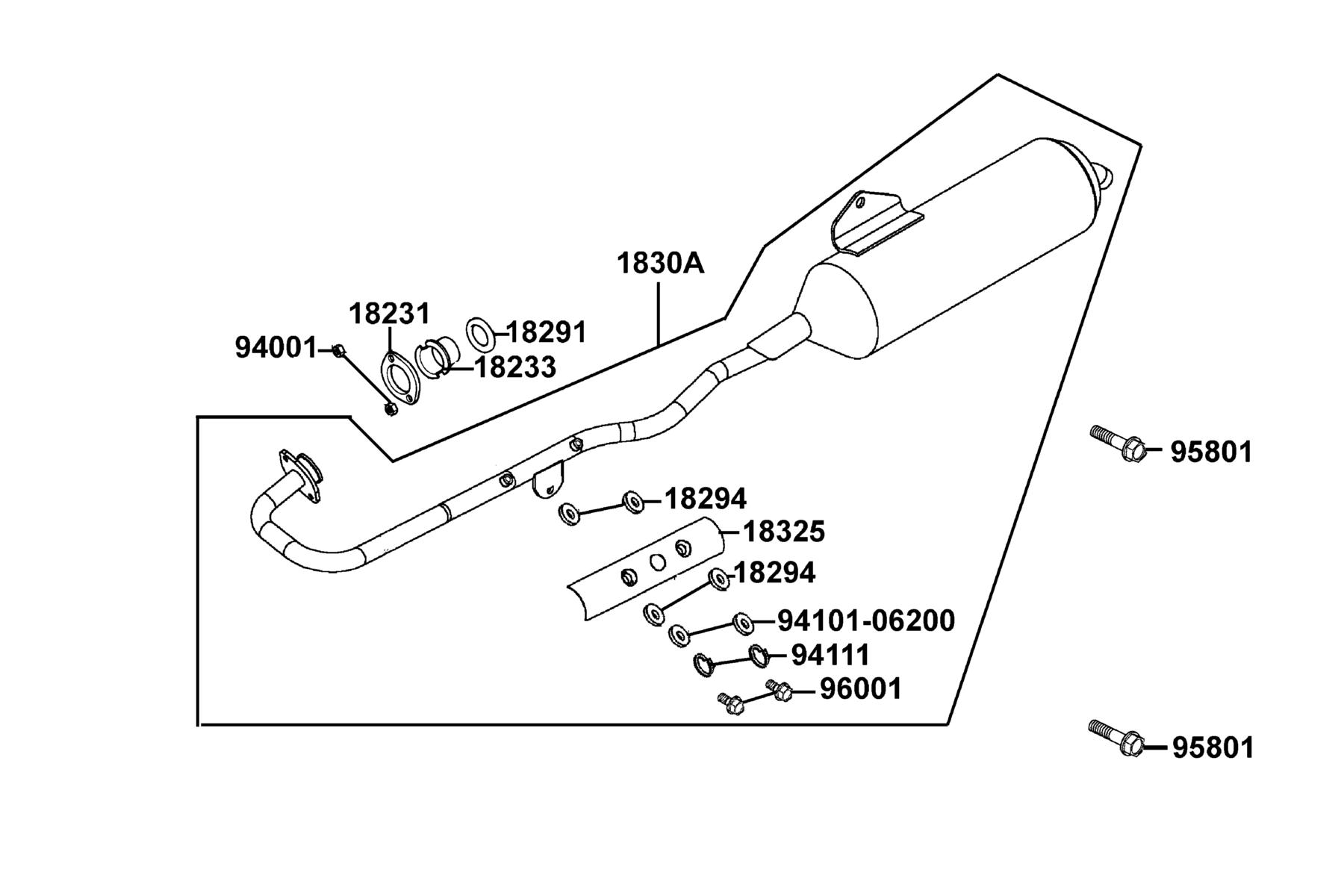

The Exhaust Muffler diagram contains 11 genuine OEM parts for the KYMCO MXU 150X 2021MY EPA(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 18231-3E65-671 | JOINT EXH PIPE | 1 | $23.49 USD | View product → | |
| 2 | 18233-3C83-901 | COLLAR EXHARST PIPE JOINT | 2 | $10.38 USD | View product → | |
| 3 | 18291-LLB1-900 | GASKET EXH PIPE | 1 | $10.50 USD | View product → | |
| 4 | 18294-KTCT-900 | PACKING PROTECTOR | 4 | $6.06 USD | View product → | |
| 5 | 1830A-LLB1-700 | MUFFLER ASSY EXHAUST | 2 | $449.88 USD | View product → | |
| 6 | 18325-LLB1-900 | PROTECTOR EXH PIPE | 1 | $21.54 USD | View product → | |
| 7 | 94001-06080-0S | NUT HEX 6MM | 2 | $4.92 USD | View product → | |
| 8 | 94101-06200 | WASHER PLAIN 6MM | 2 | $4.92 USD | View product → | |
| 9 | 94111-06800 | WASHER SPRING 6MM | 2 | $4.92 USD | View product → | |
| 10 | 95801-08028-06 | BOLT FLANGE 8*28 | 2 | $4.53 USD | View product → | |
| 11 | 96001-06012-02 | BOLT FLANGE SH 6*12 (Cr) | 2 | $2.61 USD | View product → |
