F07 — Rear Wheel

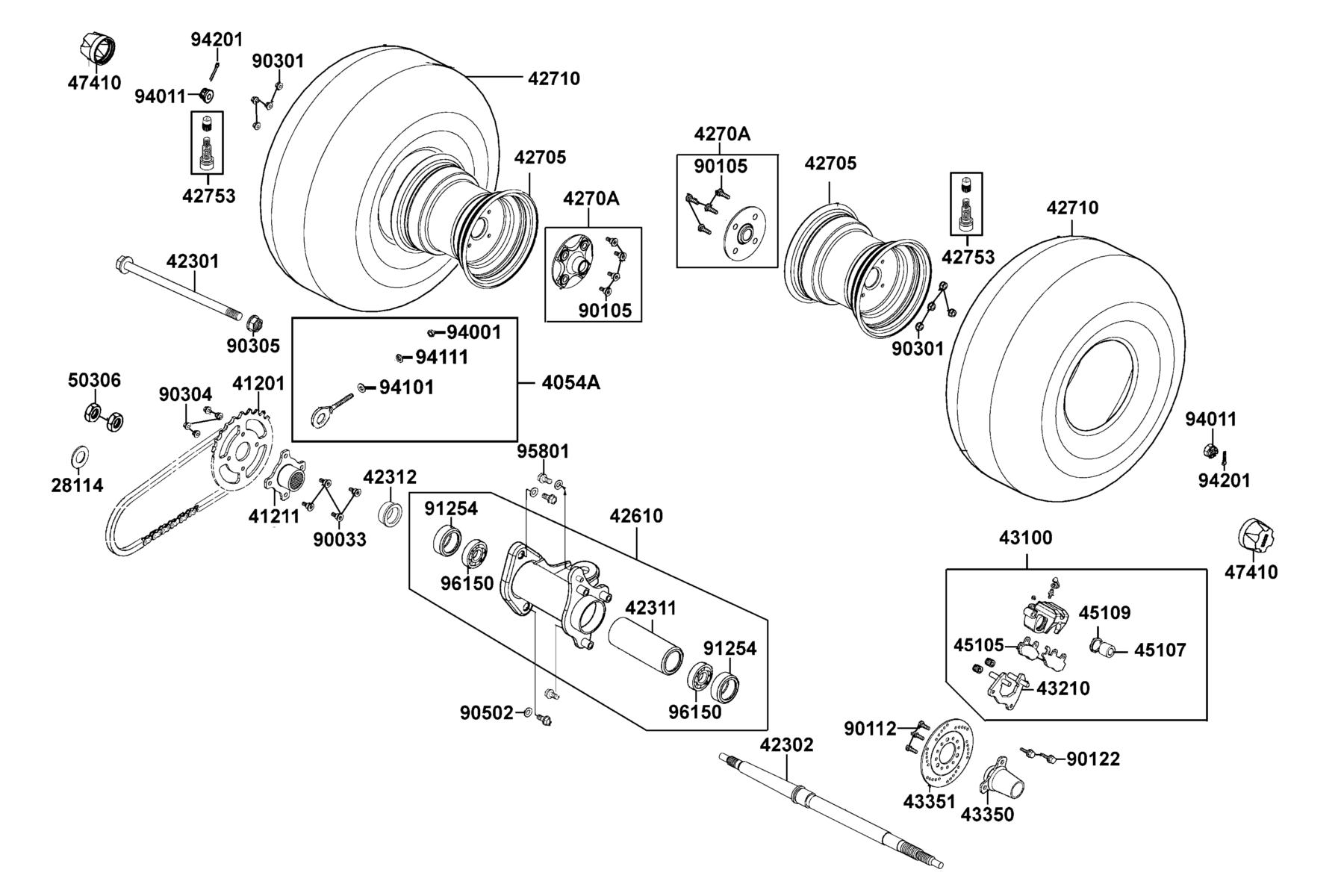

The Rear Wheel diagram contains 38 genuine OEM parts for the KYMCO MXU 150X 2021MY EPA(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 28114-GAE1-94A | DISK SPRING | 1 | $16.08 USD | View product → | |
| 2 | 4054A-LLB1-900 | DRIVE CHAIN ADJUSTER ASSY | 1 | $8.67 USD | View product → | |
| 3 | 41201-LLB1-E00 | SPRKT FINAL DRIVEN | 1 | $149.70 USD | View product → | |
| 4 | 41211-LLB1-900 | HOLDER SPROCKET | 1 | $45.42 USD | View product → | |
| 5 | 42301-LLB1-900 | AXLE RR FORK M14*265MM | 1 | $39.72 USD | View product → | |
| 6 | 42302-LCA4-E00 | SHAFT RR WHEEL | 1 | $299.22 USD | View product → | |
| 7 | 42311-LLB1-900 | COLLAR RR HUB | 1 | $32.58 USD | View product → | |
| 8 | 42312-LLB1-900 | COLLAR RR SIDE | 1 | $22.74 USD | View product → | |
| 9 | 42610-LLB1-E01-N1S | HUB ASSY RR | 1 | $170.85 USD | View product → | |
| 10 | 42705-LCA5-E00-N1S | RIM COMP RR WHEEL | 2 | $177.06 USD | View product → | |
| 11 | 4270A-LCA5-E00 | CONNECTOR ASSY RR | 2 | $149.43 USD | View product → | |
| 12 | 42710-LCA4-M0A | TIRE ASSY RR AT22*10-10 4P TL PATHFINDER/KEND | 1 | $403.14 USD | View product → | |
| 13 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → | |
| 14 | 43100-LLB1-800-NJA | CALIPER ASSY RR (Silver) | 1 | $251.01 USD | View product → | |
| 15 | 43210-LLB1-305 | BRACKET RR | 1 | $86.76 USD | View product → | |
| 16 | 43350-LLB1-800 | BRACKET BRAKE DISK | 1 | $103.02 USD | View product → | |
| 17 | 43351-KEBE-900 | DISK RR BRAKE | 1 | $123.27 USD | View product → | |
| 18 | 45107-KFA6-900 | PISTON C/P (??33.96MM) | 1 | $31.17 USD | View product → | |
| 19 | 45109-KFA6-900 | DUST SEAL | 1 | $4.92 USD | View product → | |
| 20 | 47410-LCA5-E00 | CAP WHEEL SHAFT | 2 | $1.26 USD | View product → | |
| 21 | 50306-LLB1-900 | NUT REAR SHAFT | 2 | $25.56 USD | View product → | |
| 22 | 90033-LLB1-900 | BOLT STUD 10*20 | 4 | $5.31 USD | View product → | |
| 23 | 90105-LBA7-900 | BOLT CONNECTOR ( STUD 10X36 ) | 8 | $13.17 USD | View product → | |
| 24 | 90112-LBD4-800 | BOLT DISK | 3 | $11.91 USD | View product → | |
| 25 | 90122-LLB1-800 | BOLT FLANGE 8*28 | 2 | $7.53 USD | View product → | |
| 26 | 90301-LBA7-900 | NUT WHEEL M10 | 8 | $7.71 USD | View product → | |
| 27 | 90304-GLW0-90A | NUT U FLANGE 10MM | 4 | $9.39 USD | View product → | |
| 28 | 90305-GHE8-004 | NUT U 14MM | 1 | $29.10 USD | View product → | |
| 29 | 90502-LLB1-900 | WASHER 12.2*28*4 | 3 | $4.17 USD | View product → | |
| 30 | 91254-LLB1-900 | SEAL DUST | 2 | $37.77 USD | View product → | |
| 31 | 94001-08080-0S | NUT HEX 8MM | 1 | $1.86 USD | View product → | |
| 32 | 94011-LBA7-900 | NUT FLANGE CASTLE 16MM | 2 | $31.44 USD | View product → | |
| 33 | 94101-08800 | WASHER PLAIN 8MM | 1 | $1.86 USD | View product → | |
| 34 | 94111-08800 | WASHER SPG 8MM | 1 | $4.92 USD | View product → | |
| 35 | 94201-30300 | PIN SPLIT 3*30 | 2 | $4.92 USD | View product → | |
| 36 | 95801-LLB1-900 | BOLT FLANGE 12X28 | 4 | $9.84 USD | View product → | |
| 37 | 96150-69070-10 | BEARING BALL RADIAL 6907 | 2 | $96.30 USD | View product → | |
| 38 | FA305R | PAD ASSY (A+B) | 1 | $75.57 USD | View product → |
