F06 — Front Wheel

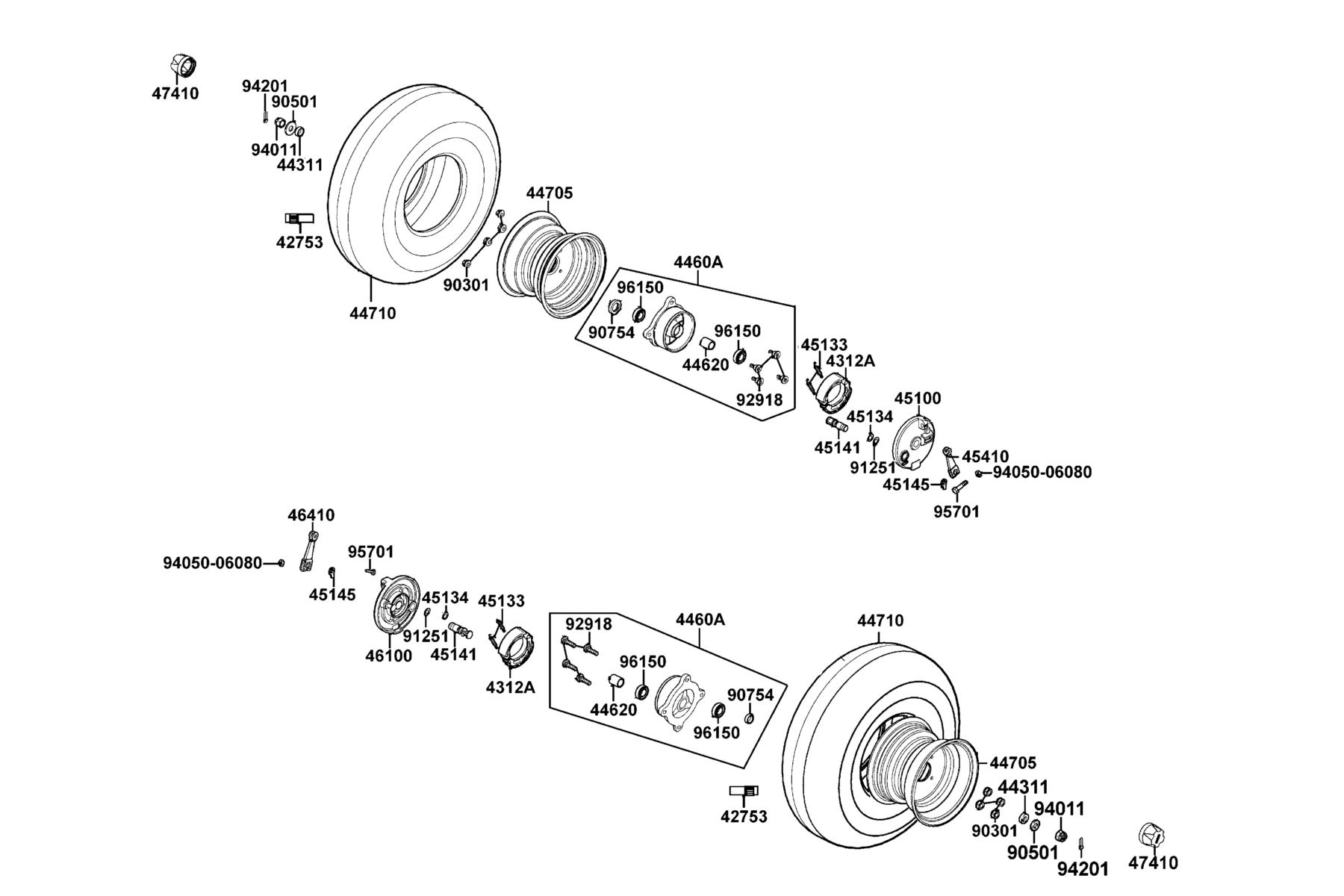

The Front Wheel diagram contains 26 genuine OEM parts for the KYMCO MXU 150X 2021MY EPA(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → | |
| 2 | 4312A-KXCX-900 | SHOE ASSY RR BRK | 2 | $39.36 USD | View product → | |
| 3 | 44311-LLB1-900 | COLLAR FR WHEEL SIDE | 2 | $6.78 USD | View product → | |
| 4 | 4460A-LCA4-E00 | HUB ASSY FR | 2 | $204.87 USD | View product → | |
| 5 | 44620-LLB1-900 | COLLAR FR DIST | 2 | $21.54 USD | View product → | |
| 6 | 44705-LCA5-E00-N1S | RIM COMP FR WHEEL | 2 | $39.96 USD | View product → | |
| 7 | 44710-LCA4-M0A | TIRE ASSY FR AT21*7-10 4P TL PATHFINDER/KENDA | 1 | $433.83 USD | View product → | |
| 8 | 45100-LLB1-900-NJA | PANEL COMP FR RH (Silver) | 1 | $87.87 USD | View product → | |
| 9 | 45133-0H28-001 | SPRING BRAKE SHOE | 4 | $3.87 USD | View product → | |
| 10 | 45134-2L50-001 | BRAKE CAM DUST SEAL | 2 | $4.92 USD | View product → | |
| 11 | 45141-LLB1-900 | CAM FR BRAKE | 2 | $32.61 USD | View product → | |
| 12 | 45145-LLB1-900 | INDICATOR FR BRK | 2 | $4.92 USD | View product → | |
| 13 | 45410-LLB1-900 | ARM FR BRK RH | 1 | $18.42 USD | View product → | |
| 14 | 46100-LLB1-900-NJA | PANEL COMP FR LH (Silver) | 1 | $87.87 USD | View product → | |
| 15 | 46410-LLB1-900 | ARM FR BRK LH | 1 | $16.59 USD | View product → | |
| 16 | 47410-LCA5-E00 | CAP WHEEL SHAFT | 2 | $1.26 USD | View product → | |
| 17 | 90301-LBA7-900 | NUT WHEEL M10 | 8 | $7.71 USD | View product → | |
| 18 | 90501-LCA4-E00 | WASHER 14MM | 2 | $12.09 USD | View product → | |
| 19 | 90754-LLB1-900 | DUST SEAL 22*35*7 | 2 | $0.93 USD | View product → | |
| 20 | 91251-GHC8-004 | SEAL OIL 41*51*5 | 2 | $7.17 USD | View product → | |
| 21 | 92918-LCA4-E00 | BOLT STUD II 10*21 | 8 | $7.17 USD | View product → | |
| 22 | 94011-LLB1-900 | NUT FLANGE CASTLE 14MM | 2 | $2.19 USD | View product → | |
| 23 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 24 | 94201-30300 | PIN SPLIT 3*30 | 2 | $4.92 USD | View product → | |
| 25 | 95701-06028-06 | BOLT FLANGE 6X28 | 1 | $0.87 USD | View product → | |
