E05 — Cover Left Crank Case

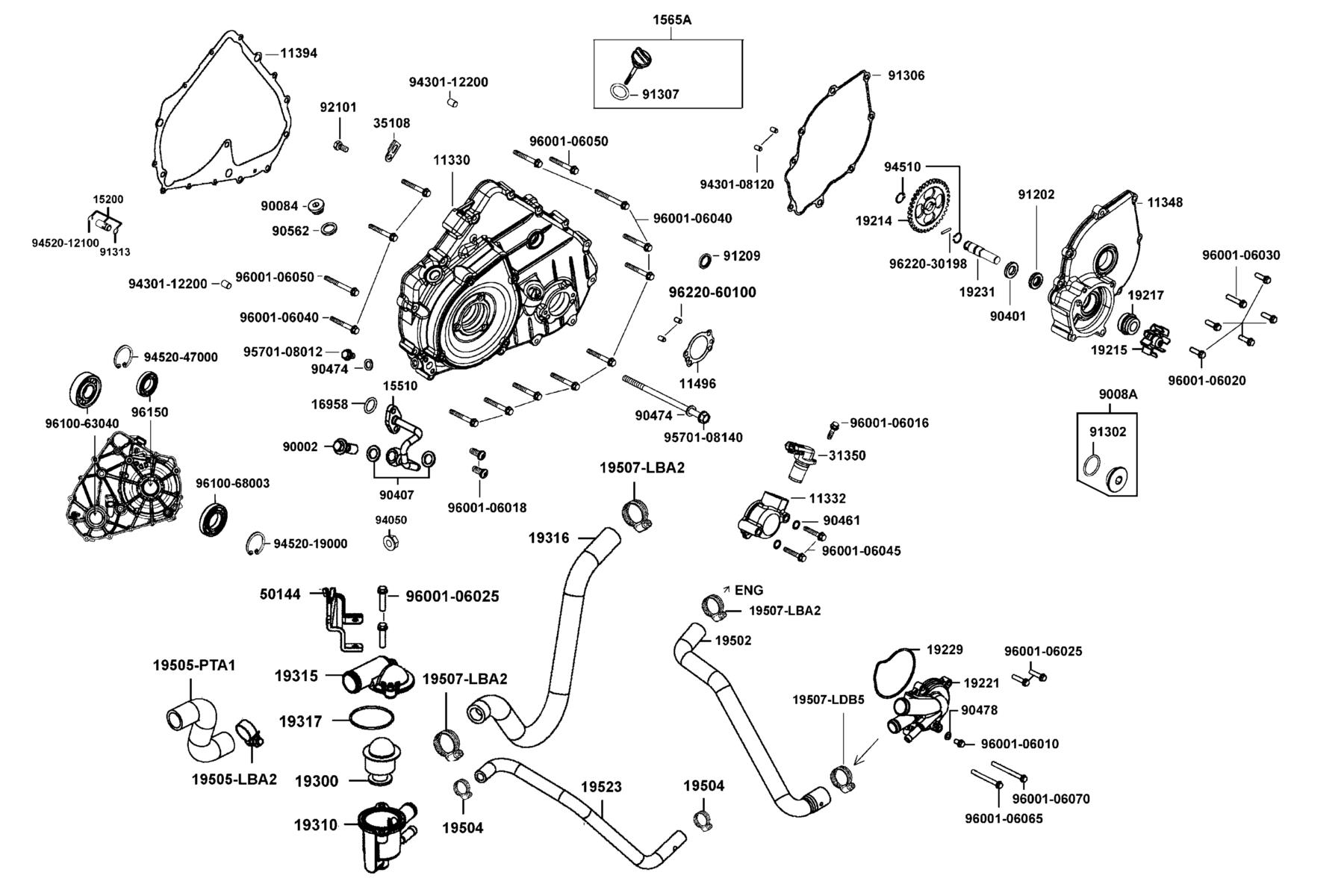

The Cover Left Crank Case diagram contains 70 genuine OEM parts for the KYMCO MAXXER 450i. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11330-PTA1-900 | COVER LEFT CRANK CASE | 1 | $466.47 USD | View product → | |
| 2 | 11332-PWB1-900 | HOUSING SPEED SENSOR | 1 | $46.95 USD | View product → | |
| 3 | 11348-PTA1-900 | COVER L COVER | 1 | $155.82 USD | View product → | |
| 4 | 11394-PWB1-900 | GASKET L COVER | 1 | $75.36 USD | View product → | |
| 5 | 11496-PWB1-900 | GASKET SENSOR HOUSING | 1 | $6.06 USD | View product → | |
| 6 | 15200-PWB1-900 | OIL RELIEF VALVE ASSY | 1 | $85.71 USD | View product → | |
| 7 | 15510-PTA1-900 | PIPE COMP OIL | 1 | $114.48 USD | View product → | |
| 8 | 1565A-PWB1-900 | GAUGE ASSY OIL LEVEL | 1 | $9.06 USD | View product → | |
| 9 | 16958-PWB1-910 | O-RING 10.77X2.62 | 1 | $4.26 USD | View product → | |
| 10 | 19214-PTA1-900 | GEAR WATER PUMP DRIVEN | 1 | $139.35 USD | View product → | |
| 11 | 19215-LBA2-E00 | IMPELLER WATER PUMP | 1 | $48.99 USD | View product → | |
| 12 | 19217-PRB9-E01 | SEAL MECHANICAL | 1 | $94.68 USD | View product → | |
| 13 | 19229-LDB5-E00 | RING WATER PUMP | 1 | $25.65 USD | View product → | |
| 14 | 19231-PTA1-900 | SHAFT WATER PUMP | 1 | $64.23 USD | View product → | |
| 15 | 19300-LBA2-E00 | THERMOSTAT ASSY | 1 | $129.00 USD | View product → | |
| 16 | 19310-LDB5-E00 | CASE COMP THERMOSTAT | 1 | $80.70 USD | View product → | |
| 17 | 19315-LBA2-E00 | COVER THERMOSTAT | 1 | $39.00 USD | View product → | |
| 18 | 19316-PTA1-900 | HOSE THERMOATAT A | 1 | $57.84 USD | View product → | |
| 19 | 19317-LBA2-E00 | RING 48.3X2 | 1 | $9.39 USD | View product → | |
| 20 | 19502-PTA1-900 | HOSE WATER B | 1 | $57.90 USD | View product → | |
| 21 | 19504-LBA2-E00 | CLAMP D16.8 | 1 | $13.95 USD | View product → | |
| 22 | 19505-LBA2-E00 | CLAMP WATER HOSE | 1 | $15.06 USD | View product → | |
| 23 | 19505-PTA1-900 | HOSE WATER | 1 | $30.03 USD | View product → | |
| 24 | 19507-LBA2-E00 | CLAMP D 27.5 | 3 | $11.31 USD | View product → | |
| 25 | 19507-PRA1-E00 | CLAMP D28(ZNS3) | 1 | — | Part details → | |
| 26 | 19523-PTA1-900 | HOSE THERMOATAT B | 1 | $40.38 USD | View product → | |
| 27 | 31350-LDB5-E0A | SENSOR SPEED | 1 | $150.54 USD | View product → | |
| 28 | 35108-PWB1-900 | STAY B ACG STATOR | 1 | $8.28 USD | View product → | |
| 29 | 50144-PTA1-900 | BRKT THERMOSTAT STAY | 1 | $25.65 USD | View product → | |
| 30 | 90002-KKAK-900 | BOLT B OIL PASS | 1 | $9.33 USD | View product → | |
| 31 | 90084-PWB1-900 | CAP ACG | 1 | $19.92 USD | View product → | |
| 32 | 9008A-PTA1-900 | CAP ASSY | 1 | $41.73 USD | View product → | |
| 33 | 90401-PTA1-900 | WASHER.THRUST 14MM | 1 | $5.94 USD | View product → | |
| 34 | 90407-KAM1-001 | SEALING WASHER B OIL PIPE JOIN | 2 | $1.86 USD | View product → | |
| 35 | 90461-PWB1-900 | WASHER SEALING | 2 | $6.06 USD | View product → | |
| 36 | 90474-3C33-001 | WASHER 8MM | 2 | $2.85 USD | View product → | |
| 37 | 90478-7L00-001 | WASHER A 6MM | 1 | $4.92 USD | View product → | |
| 38 | 90562-PWB1-900 | WASHER 16X22X2 | 1 | $5.31 USD | View product → | |
| 39 | 91202-KGB4-C00 | OIL SEAL 13.7*24*5 | 1 | $14.70 USD | View product → | |
| 40 | 91209-PWB1-900 | OIL SEAL 12X22X9 | 1 | $10.14 USD | View product → | |
| 41 | 91302-5G67-004 | O-RING 27.4*2.4 | 1 | $10.14 USD | View product → | |
| 42 | 91306-PTA1-900 | GASKET.STARTING COVER | 1 | $49.02 USD | View product → | |
| 43 | 91307-0E35-001 | O RING 18*3 | 1 | $4.92 USD | View product → | |
| 44 | 91313-KED9-900 | O-RING 15.5*1.5 | 1 | $2.61 USD | View product → | |
| 45 | 92101-05012-0G | BOLT HEX 5X12 | 1 | $11.46 USD | View product → | |
| 46 | 94050-06060 | NUT FLANGE 6MM | 1 | $4.92 USD | View product → | |
| 47 | 94301-08120 | DOWEL PIN 8*12 | 2 | $4.53 USD | View product → | |
| 48 | 94301-12200 | DOWEL PIN 12*20 | 2 | $6.39 USD | View product → | |
| 49 | 94510-14000 | CIR CLIP EX 14 | 1 | $4.92 USD | View product → | |
| 50 | 94520-12100 | CIR CLIP IN 12 | 1 | $3.78 USD | View product → | |
| 51 | 94520-19000 | CIR CLIP IN 19 | 1 | $10.14 USD | View product → | |
| 52 | 94520-47000 | CIR CLIP IN 47 | 1 | $11.31 USD | View product → | |
| 53 | 95701-08012-06 | BOLT FLANGE 8*12 | 1 | $6.24 USD | View product → | |
| 54 | 95701-08140-06 | BOLT FLANGE 8*140 | 1 | $30.90 USD | View product → | |
| 55 | 96001-06010-00 | BOLT FLANGE SH 6X10 | 1 | $1.65 USD | View product → | |
| 56 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → | |
| 57 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 2 | $12.12 USD | View product → | |
| 58 | 96001-06020-06 | BOLT FLANGE SH 6*20 | 5 | $3.27 USD | View product → | |
| 59 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → | |
| 60 | 96001-06030-06 | BOLT FLANGE SH 6X30 | 2 | $4.92 USD | View product → | |
| 61 | 96001-06040-06 | BOLT FLANGE SH 6*40 | 12 | $12.12 USD | View product → | |
| 62 | 96001-06045-06 | BOLT FLANGE SH 6*45 | 2 | $7.23 USD | View product → | |
| 63 | 96001-06050-06 | BOLT FLANGE SH 6*50 | 2 | $12.12 USD | View product → | |
| 64 | 96001-06065-06 | BOLT FLANGE SH 6X65 | 1 | $12.72 USD | View product → | |
| 65 | 96001-06070-06 | BOLT FLANGE SH 6*70 | 1 | $5.88 USD | View product → | |
| 66 | 96100-63040-00 | BRG BALL RADIAL 6304 | 1 | $53.61 USD | View product → | |
| 67 | 96100-68003-00 | BEARING BALL RADIAL 6800 | 1 | $56.19 USD | View product → | |
| 68 | 96150-PWB1-90B | BEARING CONRAD S/R(16005) | 1 | — | Part details → | |
| 69 | 96220-30198 | ROLLER. 3*19.8 | 1 | $4.92 USD | View product → | |
| 70 | 96220-60100 | ROLLER 6X10 | 2 | $4.92 USD | View product → |
