F09 — Seat

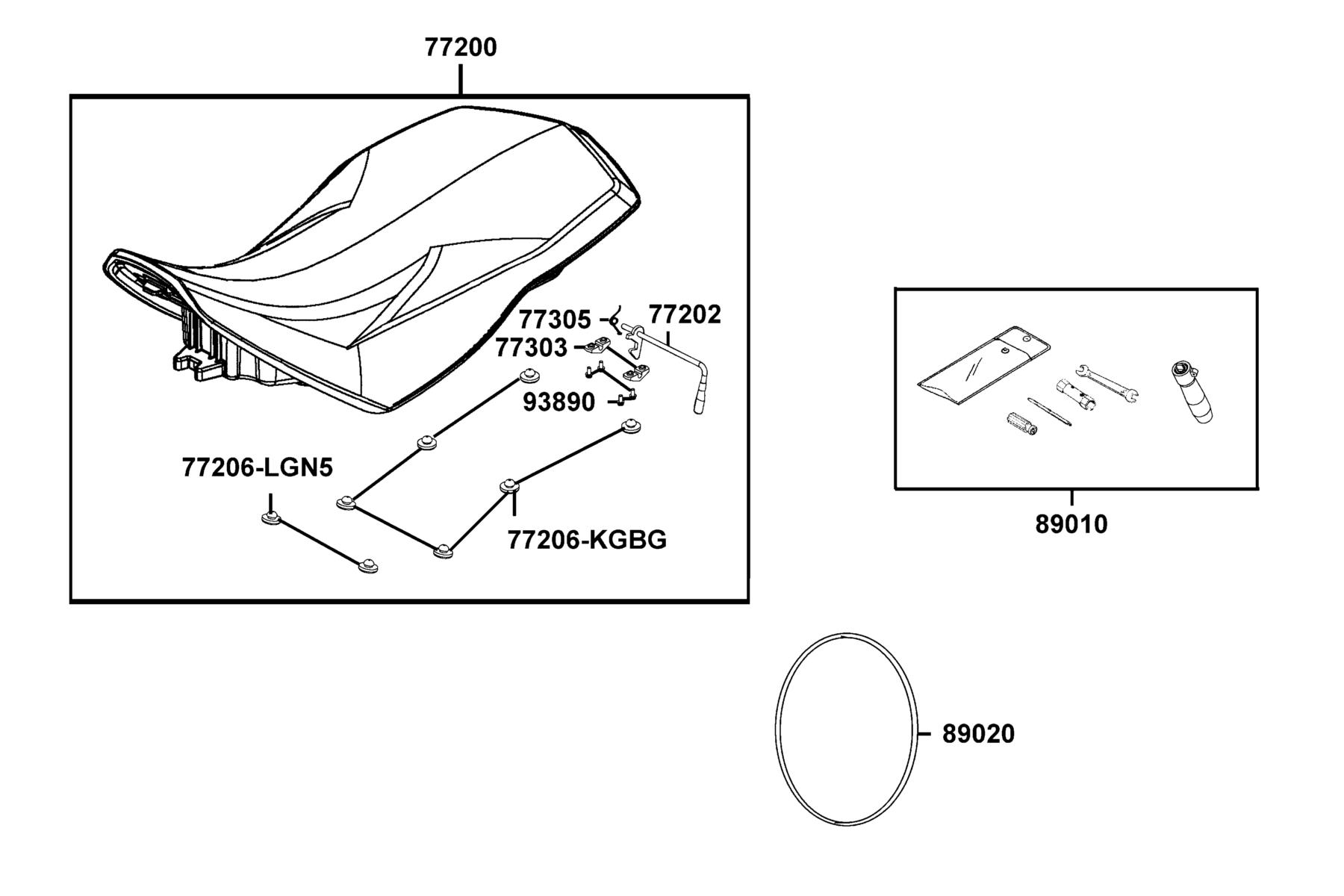

The Seat diagram contains 9 genuine OEM parts for the KYMCO MAXXER 450i. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 77200-LGN5-900-T01 | SEAT ASSY(01Y-OBC) | 1 | $290.91 USD | View product → | |
| 2 | 77202-LGN5-E00 | LATCH COMP SEAT | 1 | $45.36 USD | View product → | |
| 3 | 77206-KGBG-900 | RUBBER SEAT CUSH | 6 | $7.53 USD | View product → | |
| 4 | 77206-LGN5-E00 | BUMPER SEAT | 2 | $14.31 USD | View product → | |
| 5 | 77303-KFA6-900 | HOLDER HOOK BAR | 2 | $6.06 USD | View product → | |
| 6 | 77305-KFA6-900 | SPRING HOOK BAR | 1 | $4.17 USD | View product → | |
| 7 | 89010-LGN5-E00 | TOOL SET | 1 | $127.83 USD | View product → | |
| 8 | 89020-KKC4-900 | BAND TOOL SET | 1 | $3.00 USD | View product → | |
| 9 | 93890-LDB5-E00 | BOLT M4 | 4 | $4.92 USD | View product → |
