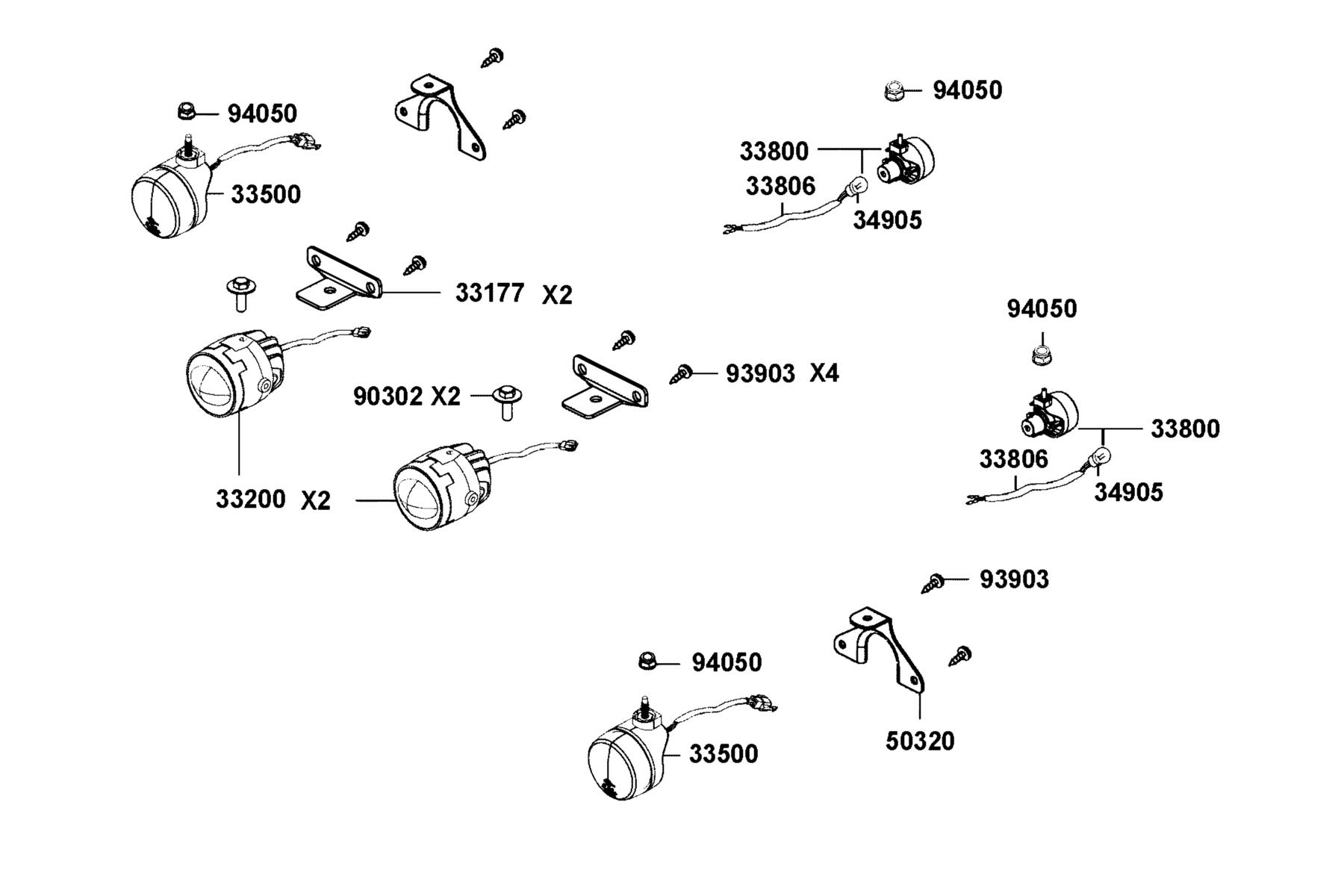

F18 — Winker Assy Fr
The Winker Assy Fr diagram contains 10 genuine OEM parts for the KYMCO MAXXER 450i. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33177-LGC7-M04 | CLIP LIGHT COVER | 1 | — | Part details → | |
| 2 | 33200-AHA9-E01 | LIGHT ASS'Y HEAD HIGH BEAM | 1 | — | Part details → | |
| 3 | 33500-AHA9-E00 | LIGHT ASSY FR POSITION | 2 | $114.51 USD | View product → | |
| 4 | 33800-LGN5-900 | LIGHT ASSY REVERSE | 1 | $132.18 USD | View product → | |
| 5 | 33806-LGN5-900 | SOCKET COMP R/L | 2 | $63.48 USD | View product → | |
| 6 | 34905-LCA5-900 | BULB POSITION 12V5W | 2 | $32.10 USD | View product → | |
| 7 | 50320-PRB3-900 | STAY WINKER | 1 | $15.72 USD | View product → | |
| 8 | 90302-LLB1-E00 | BOLT-WASH 5X12 | 2 | $2.61 USD | View product → | |
| 9 | 93903-35360 | SCREW TAPPING 5*16 | 8 | $3.78 USD | View product → | |
| 10 | 94050-05060 | NUT FLANGE 5MM | 4 | $4.92 USD | View product → |
