F14 — Exhaust Muffler

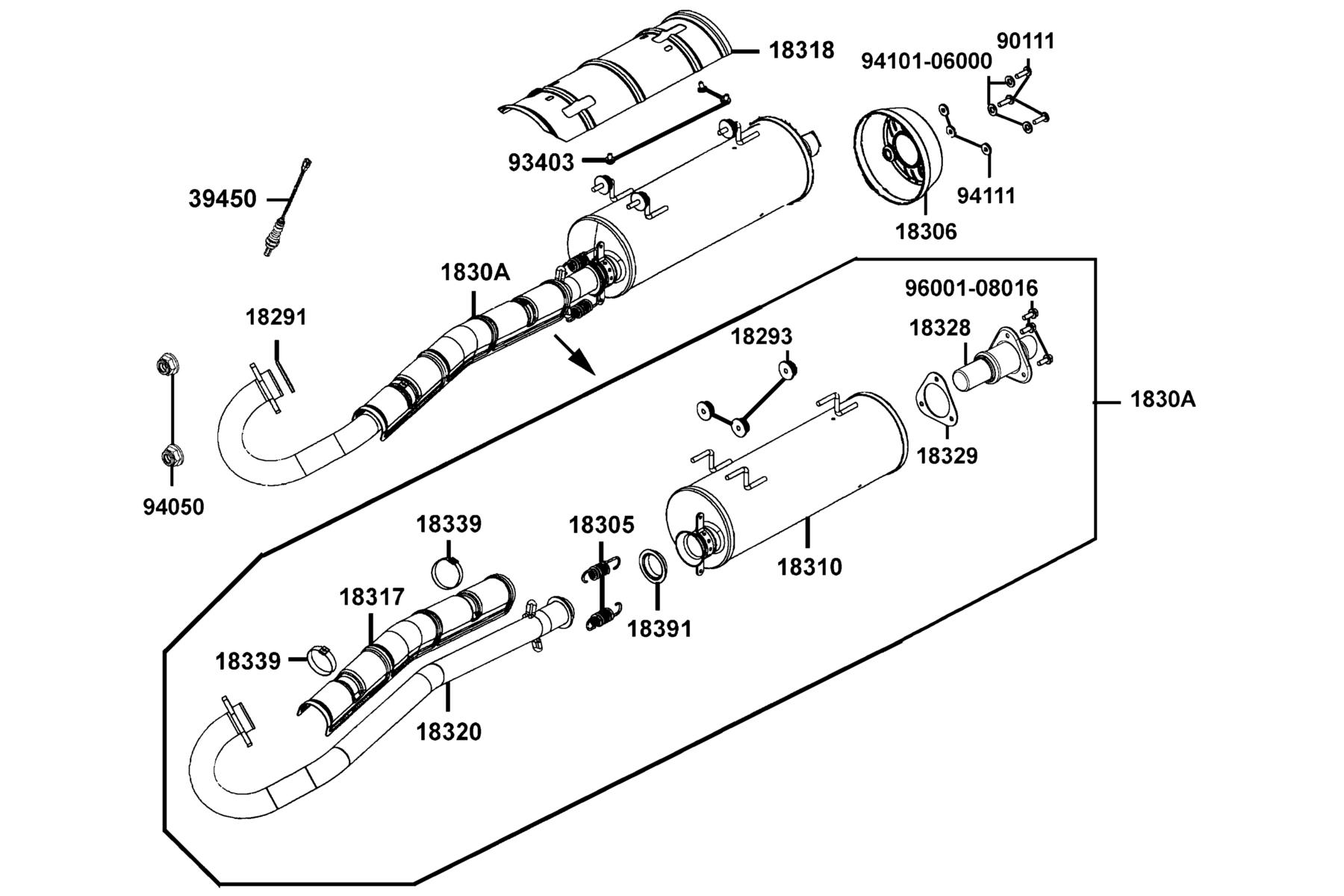

The Exhaust Muffler diagram contains 20 genuine OEM parts for the KYMCO MAXXER 450i. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 18291-PTA1-900 | SEAL EXHAUST PIPE | 1 | $25.65 USD | View product → | |
| 2 | 18293-PWB1-900 | GROMMENT MUFFLER | 3 | $22.98 USD | View product → | |
| 3 | 18305-PWB1-900 | SPRING EXTENSION | 2 | $20.91 USD | View product → | |
| 4 | 18306-LGC7-E00-HZF | TAIL CAP MUFFLER | 1 | $155.88 USD | View product → | |
| 5 | 1830A-LGC7-M00 | MUFFLER ASSY EXH | 1 | $549.82 USD | View product → | |
| 6 | 18310-LGC7-900 | MUFFLER BODY - WELDMENT | 1 | $389.34 USD | View product → | |
| 7 | 18317-PRB2-300 | SHIELD EXHAUST PIPE | 1 | $109.08 USD | View product → | |
| 8 | 18318-PWB1-900 | COVER MUFFLER | 1 | $83.31 USD | View product → | |
| 9 | 18320-PRB2-300 | PIPE COMP EXHAUST | 1 | $206.91 USD | View product → | |
| 10 | 18328-LFA5-910 | SPARK ARRESTER - WELDMENT | 1 | $167.91 USD | View product → | |
| 11 | 18329-PWB1-700 | GASKET.SPARK ARRESTER | 1 | $26.64 USD | View product → | |
| 12 | 18339-PWB1-900 | BAND EXHAUST PIPE SHIELD | 2 | $49.68 USD | View product → | |
| 13 | 18391-PTA1-900 | GASKET EXH TAILPIPE | 1 | $120.90 USD | View product → | |
| 14 | 39450-ZVA6-M00 | O2 SENSOR | 1 | $322.38 USD | View product → | |
| 15 | 90111-LEC8-E01 | SCREW.PAN 6X14(CG) | 3 | $4.38 USD | View product → | |
| 16 | 93403-PWB1-900 | BOLT-WASHER 6X12 | 3 | $10.50 USD | View product → | |
| 17 | 94050-08080 | NUT FLANGE 8MM | 2 | $4.92 USD | View product → | |
| 18 | 94101-06000 | WASHER PLAIN 6MM | 3 | $4.92 USD | View product → | |
| 19 | 94111-06800 | WASHER SPRING 6MM | 3 | $4.92 USD | View product → | |
| 20 | 96001-08016-08 | BOLT FLANGE SH 8X16 | 3 | $4.59 USD | View product → |
