E04 — Right Crankcase Cover

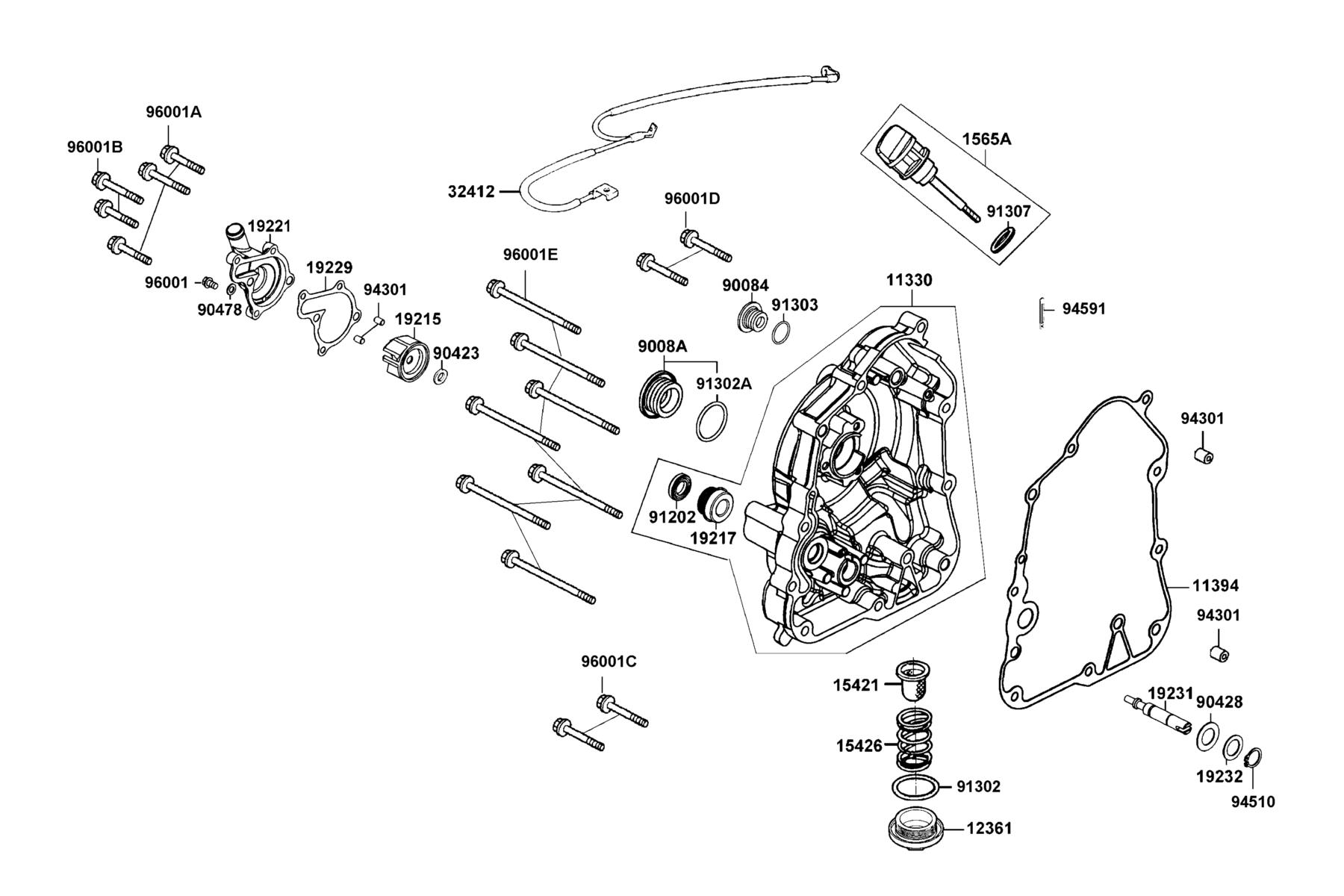

The Right Crankcase Cover diagram contains 32 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11330-LFA7-E00-MLA | COVER COMP R CRANK CASE | 1 | $214.02 USD | View product → | |
| 2 | 11394-LFA7-E00 | GASKET，R. COVER A | 1 | — | Part details → | |
| 3 | 12361-GFY6-901 | HOLE CAP TAPPET ADJUSTING | 1 | $11.70 USD | View product → | |
| 4 | 15421-1G07-001 | SCREEN OIL FILTER | 1 | $15.06 USD | View product → | |
| 5 | 15426-GAE1-921 | SPG OIL FILTER SCREEN | 1 | $5.67 USD | View product → | |
| 6 | 1565A-KUDU-900 | GAUGE OIL LEVEL ASSY | 1 | $18.48 USD | View product → | |
| 7 | 19215-KHE7-900 | IMPELLER WATER PUMP | 1 | $37.95 USD | View product → | |
| 8 | 19217-ZPA3-E01 | SEAL MECHANICAL | 1 | $72.24 USD | View product → | |
| 9 | 19221-LFA7-E00-NEA | COVER WATER PUMP | 1 | $53.76 USD | View product → | |
| 10 | 19229-LFA7-E00 | GASKET WATER PUMP | 1 | $15.42 USD | View product → | |
| 11 | 19231-LFA7-E00 | SHAFT，WATER PUMP | 1 | — | Part details → | |
| 12 | 19232-LBA2-E00 | WASHER 21*13.8*1.5 | 1 | $12.09 USD | View product → | |
| 13 | 32412-BAA7-E00 | CABLE,EARTH | 1 | — | Part details → | |
| 14 | 90084-KKF9-901-NEA | CAP ACG | 1 | $18.57 USD | View product → | |
| 15 | 9008A-PTA1-900-NEA | CAP ASSY | 1 | $21.60 USD | View product → | |
| 16 | 90423-KKJ9-001 | WASHER 7.2*13*1.2 | 1 | $4.59 USD | View product → | |
| 17 | 90428-9H58-001 | WASHER THRUST 14MM B | 1 | $9.78 USD | View product → | |
| 18 | 90478-7L00-001 | WASHER A 6MM | 1 | $4.92 USD | View product → | |
| 19 | 91202-LKG2-900 | OIL SEAL 13.7*24*5 | 1 | $38.94 USD | View product → | |
| 20 | 91302-001-0210 | O-RING 30.8M/M | 1 | $6.72 USD | View product → | |
| 21 | 91302-5G67-004 | O-RING 27.4*2.4 | 1 | $10.14 USD | View product → | |
| 22 | 91303-3G77-001 | O-RING 13.8*2.5 | 1 | $4.92 USD | View product → | |
| 23 | 91307-0E35-001 | O RING 18*3 | 1 | $4.92 USD | View product → | |
| 24 | 94301-08140 | DOWEL PIN 8*14 | 4 | $3.00 USD | View product → | |
| 25 | 94510-14000 | CIR CLIP EX 14 | 1 | $4.92 USD | View product → | |
| 26 | 94591-KFBF-900 | CLIP 2*70 | 1 | $3.78 USD | View product → | |
| 27 | 96001-06010-00 | BOLT FLANGE SH 6X10 | 1 | $1.65 USD | View product → | |
| 28 | 96001-06022-06 | BOLT FLANGE SH 6X22 | 3 | $4.26 USD | View product → | |
| 29 | 96001-06028-06 | BOLT FLANGE SH 6*28 | 1 | $1.95 USD | View product → | |
| 30 | 96001-06030-06 | BOLT FLANGE SH 6X30 | 2 | $4.92 USD | View product → | |
| 31 | 96001-06040-06 | BOLT FLANGE SH 6*40 | 2 | $12.12 USD | View product → | |
| 32 | 96001-06120-06 | BOLT FLANGE SH 6*120 | 7 | $3.54 USD | View product → |
