F08 — Rear Wheel

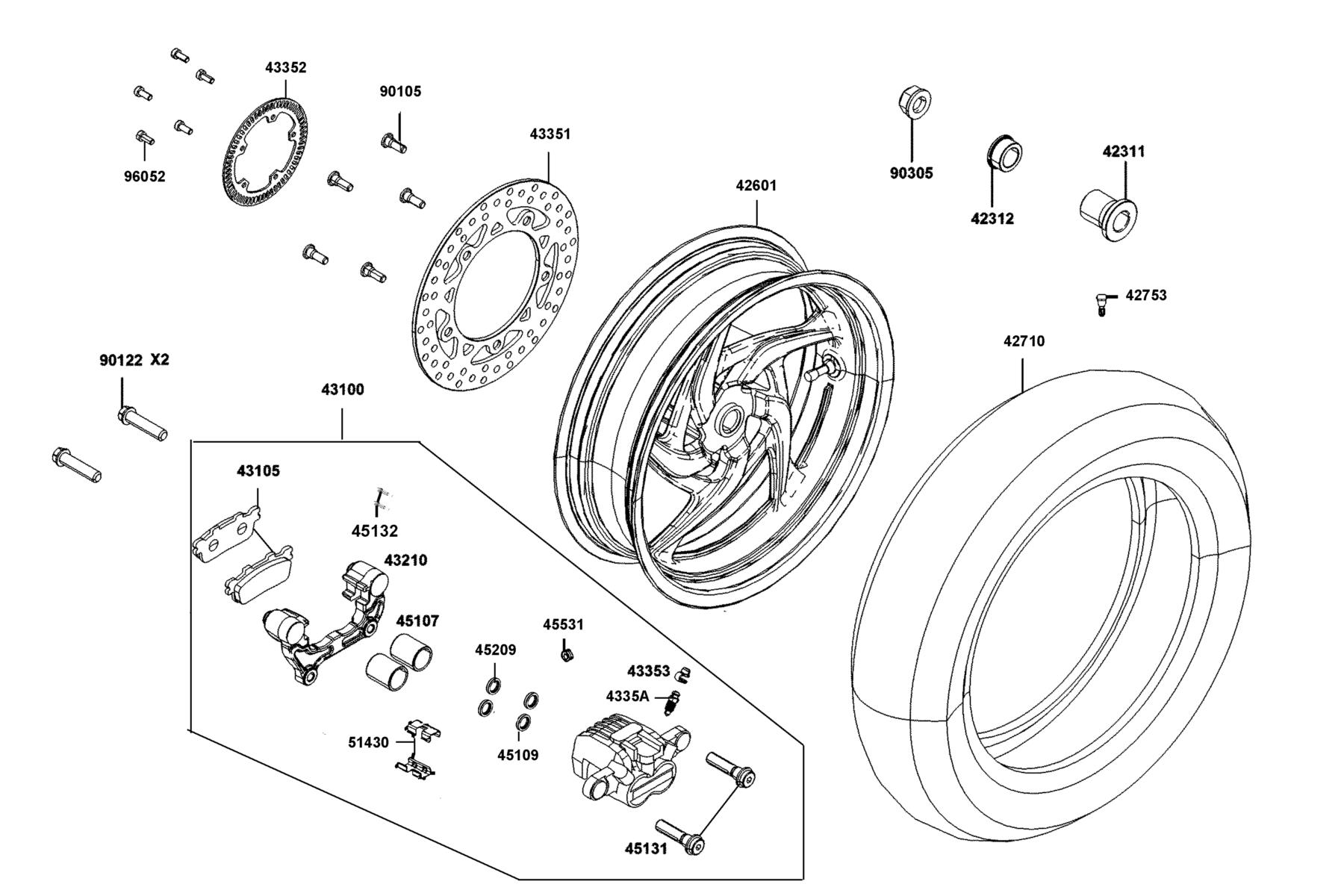

The Rear Wheel diagram contains 24 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42311-LEA7-E00 | COLLAR RR AXLE SIDE A | 1 | $49.26 USD | View product → | |
| 2 | 42312-LEA7-E00 | COLLAR RR AXLE SIDE | 1 | $40.38 USD | View product → | |
| 3 | 42601-BAA7-E00-N1A | WHEEL COMP RR | 1 | $302.58 USD | View product → | |
| 4 | 42710-BAA7-E00 | TIRE ASSY RR 140/70-14 | 1 | — | Part details → | |
| 5 | 42753-KNBN-90B | VALVE RIM (TR412) | 1 | $17.70 USD | View product → | |
| 6 | 43100-BAA5-E00-NEA | CALIPER ASSY RR | 1 | $485.85 USD | View product → | |
| 7 | 43105-LGE5-305 | PAD SET | 1 | $162.06 USD | View product → | |
| 8 | 43210-BAA5-E00-NEA | BRACKET RR | 1 | $79.17 USD | View product → | |
| 9 | 43351-BAA7-E00 | DISK RR BRK | 1 | $146.10 USD | View product → | |
| 10 | 43352-BAA7-E00 | TOOTHED RING REAR SENSOR | 1 | — | Part details → | |
| 11 | 43353-KED9-900 | CAP BLEEDER | 1 | $5.67 USD | View product → | |
| 12 | 4335A-LBA2-E01 | BLEEDER ASSY | 1 | $39.72 USD | View product → | |
| 13 | 45107-MEN5-007 | PISTON C/P ((??25.4MM) | 2 | $80.52 USD | View product → | |
| 14 | 45109-GBE2-007 | DUST SEAL | 2 | $14.31 USD | View product → | |
| 15 | 45131-LDH1-E00 | PIN BOLT | 2 | $36.24 USD | View product → | |
| 16 | 45132-LDH1-E00 | BOOT | 2 | $23.40 USD | View product → | |
| 17 | 45209-GBE2-007 | SEAL PISTON | 2 | $21.84 USD | View product → | |
| 18 | 45531-GAR1-951 | PLUG | 1 | $7.17 USD | View product → | |
| 19 | 51430-LGE5-E02 | SLIDE PAD | 2 | $23.13 USD | View product → | |
| 20 | 90105-KCR3-001 | BOLT FR DISK 8*24 | 5 | $11.94 USD | View product → | |
| 21 | 90105-KCR3-001-invalid | BOLT FR DISK 8*24 | 5 | $15.51 USD | View product → | |
| 22 | 90122-LEA7-E00 | BOLT FLANGE 10X42 | 2 | $25.65 USD | View product → | |
| 23 | 90305-KKAK-900 | NUT U 16MM | 1 | $22.38 USD | View product → | |
| 24 | 96052-PRA1-E00 | BOLT M5*16 | 5 | $0.87 USD | View product → |
