E05 — Pulley

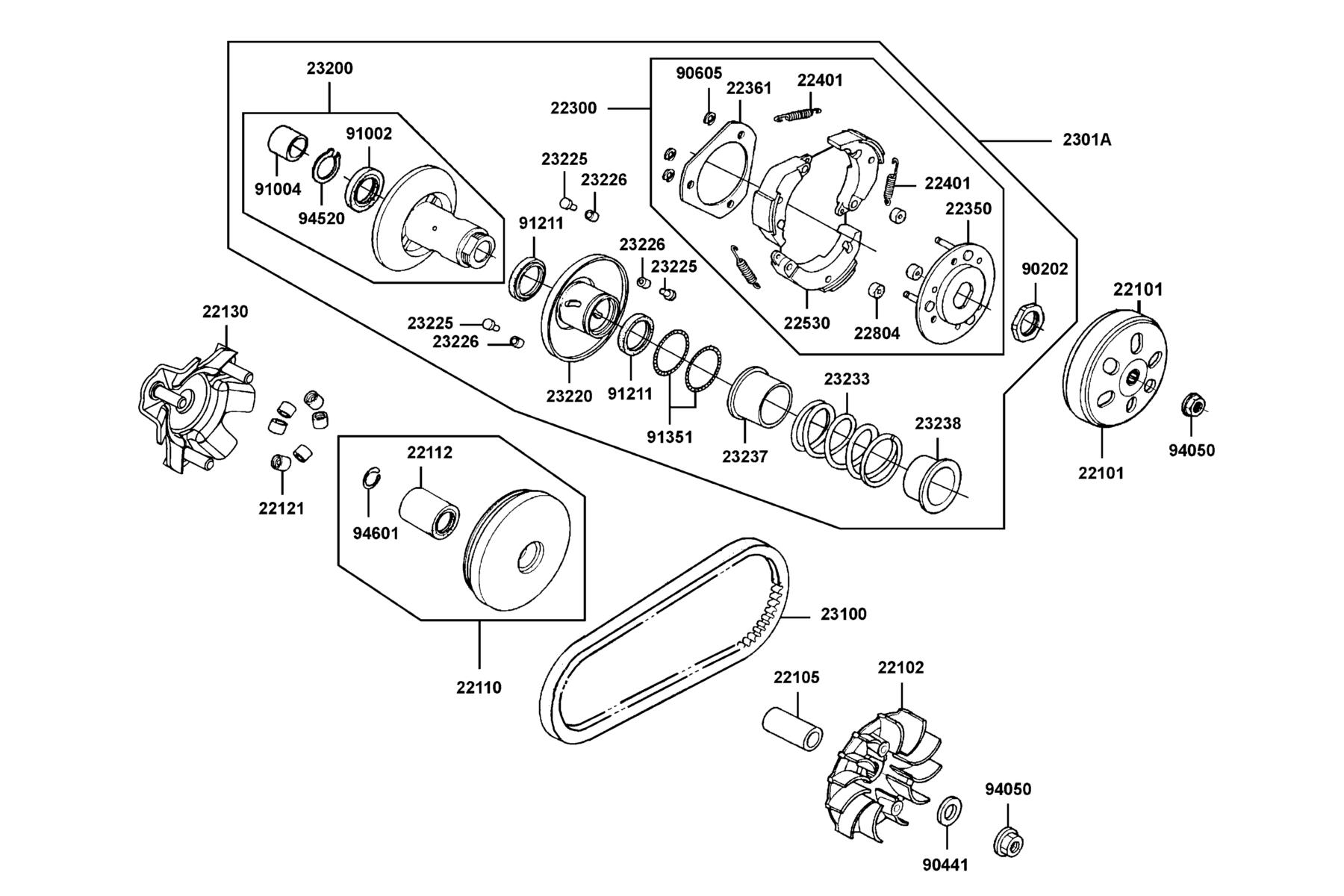

The Pulley diagram contains 32 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 22101-KEBE-900 | OUTER CLUTCH | 1 | $165.81 USD | View product → | |
| 2 | 22102-ACJ1-E00 | FACE COMP DRIVE | 1 | $185.40 USD | View product → | |
| 3 | 22105-ACH7-600 | BOSS DRIVE FACE | 1 | $56.67 USD | View product → | |
| 4 | 22110-AAG1-900 | FACE COMP. MOVABLE DRIVE | 1 | — | Part details → | |
| 5 | 22112-KAAA-900 | COLLAR DRIVE FACE | 1 | $14.01 USD | View product → | |
| 6 | 22121-KKE3-305 | ROLLER SET WEIGHT (1SET:6PCS) | 1 | $58.35 USD | View product → | |
| 7 | 22130-AAG1-910 | RAMP PLATE COMP | 1 | — | Part details → | |
| 8 | 22300-ACJ1-E00 | PLATE ASSY DRIVE | 1 | $179.67 USD | View product → | |
| 9 | 22350-LEA6-900 | PLATE COMP DRIVE | 1 | $77.07 USD | View product → | |
| 10 | 22361-KGN7-671 | PLATE CLUTCH SIDE | 1 | $19.80 USD | View product → | |
| 11 | 22401-LLB1-900 | SPRING CLUTCH | 3 | $8.67 USD | View product → | |
| 12 | 22530-LKG2-900 | WEIGHT. CLUTCH | 3 | $49.68 USD | View product → | |
| 13 | 22804-GGB2-001 | RUBBER CLUTCH DAMPER | 3 | $8.19 USD | View product → | |
| 14 | 2301A-BAA5-E00 | PULLEY SUB ASSY | 1 | $338.70 USD | View product → | |
| 15 | 23100-ACJ1-E00 | BELT DRIVE | 1 | $163.77 USD | View product → | |
| 16 | 23200-AAG1-900 | FACE ASSY DRIVEN | 1 | $175.38 USD | View product → | |
| 17 | 23220-AAG1-900 | FACE COMP MOVABLE DRIVEN | 1 | $147.39 USD | View product → | |
| 18 | 23225-GHC8-004 | PIN ROLLER GUIDE | 3 | $4.92 USD | View product → | |
| 19 | 23226-GHC8-004 | ROLLER GUIDE | 3 | $4.92 USD | View product → | |
| 20 | 23233-BAA5-E00 | SPG DRIVEN FACE | 1 | $52.29 USD | View product → | |
| 21 | 23237-GFY6-941 | COLLAR SEAL | 1 | $29.52 USD | View product → | |
| 22 | 23238-LKE7-900 | COLLAR SPG | 1 | $45.60 USD | View product → | |
| 23 | 90202-KGN7-671 | NUT SPECIAL 28MM | 1 | $15.84 USD | View product → | |
| 24 | 90441-GFY6-941 | WASHER 12.2*29*2.5 | 1 | $8.67 USD | View product → | |
| 25 | 90605-1F66-721 | CIR CLIP 7MM | 3 | $4.92 USD | View product → | |
| 26 | 91002-GGA7-70A | BRG BALL RADIAL 6902U | 1 | $51.27 USD | View product → | |
| 27 | 91004-KHE7-900 | BRG NDL 22X29X18 | 1 | $97.77 USD | View product → | |
| 28 | 91211-KEBE-900 | SEAL DRIVEN FACE 34X41X4 | 2 | $37.41 USD | View product → | |
| 29 | 91351-6B42-000 | O-RING PINION CAP | 2 | $14.70 USD | View product → | |
| 30 | 94050-12080 | NUT FLANGE 12MM | 2 | $4.92 USD | View product → | |
| 31 | 94520-28000 | CIR CLIP IN 28 | 1 | $4.92 USD | View product → | |
| 32 | 94601-33000 | CLIP PISTON PIN 33MM | 1 | $4.92 USD | View product → |
