F12 — Body Cover●Luggage Box

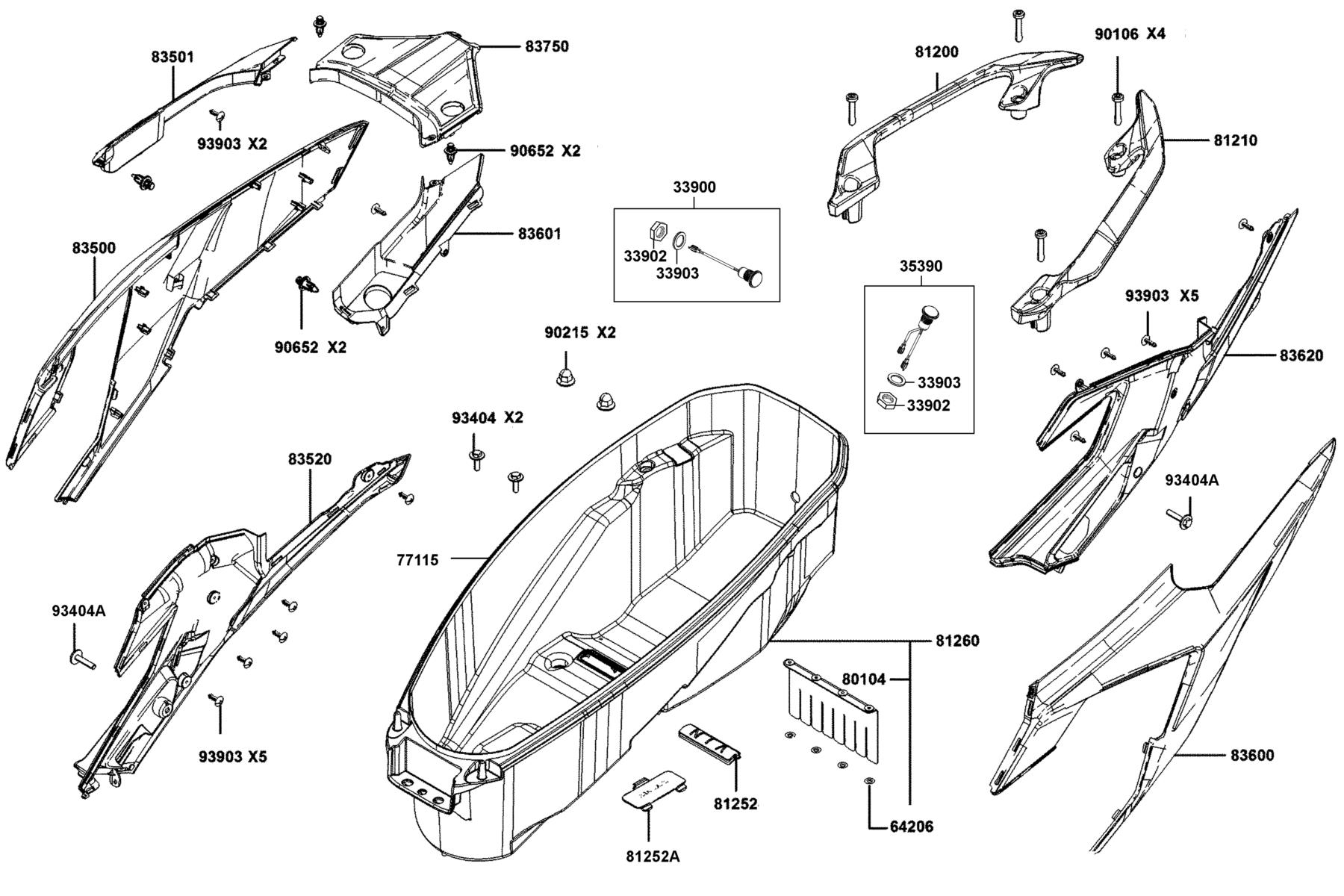

The Body Cover●Luggage Box diagram contains 25 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33900-BAA7-E00 | LIGHT ASSY LUGGAGE BOX | 1 | $76.17 USD | View product → | |
| 2 | 33902-LHG7-E00 | NUT SCREW | 1 | $18.87 USD | View product → | |
| 3 | 33903-LHG7-E00 | PACKING | 1 | $13.11 USD | View product → | |
| 4 | 35390-AEE2-600 | SENSOR LUGGAGE BOX LIGHT | 1 | $165.18 USD | View product → | |
| 5 | 64206-MLJ0-001 | NUT SPEED 4MM | 4 | $3.96 USD | View product → | |
| 6 | 77115-BAA7-E00 | RUBBER SEAL | 1 | $114.84 USD | View product → | |
| 7 | 80104-LBA2-E00 | PLATE C SPLASH GUARD | 1 | $37.02 USD | View product → | |
| 8 | 81200-BAA7-E00-CYP | CARRIER R REAR | 1 | $173.67 USD | View product → | |
| 9 | 81210-BAA7-E00-CYP | CARRIER L REAR | 1 | $169.53 USD | View product → | |
| 10 | 81252-KKE5-E00 | PLUG LUGGAGE BOX | 1 | $11.55 USD | View product → | |
| 11 | 81252-LEA7-E00 | COVER P.D.A. MAINT | 1 | $11.55 USD | View product → | |
| 12 | 81260-BAA7-E00 | BOX ASSY LUGGAGE | 1 | $147.84 USD | View product → | |
| 13 | 83500-BAA7-E00-CYP | COVER A R BODY | 1 | — | Part details → | |
| 14 | 83501-BAA7-E00-N1R | COVER B R BODY (Black) | 1 | $36.15 USD | View product → | |
| 15 | 83520-BAA7-E00-N1R | BOARD B R SIDE (Black) | 1 | — | Part details → | |
| 16 | 83600-BAA7-E00-CYP | COVER A L BODY | 1 | $172.05 USD | View product → | |
| 17 | 83601-BAA7-E00-N1R | COVER B L BODY (Black) | 1 | — | Part details → | |
| 18 | 83620-BAA7-E00-N1R | BOARD B L SIDE (Black) | 1 | — | Part details → | |
| 19 | 83750-BAA7-E00-N1R | COVER RR CENTER (Black) | 1 | — | Part details → | |
| 20 | 90106-KKE5-E00 | BOLT SPECIAL M8*45 | 4 | $25.89 USD | View product → | |
| 21 | 90215-AKD3-900 | NUT CAP 6MM | 2 | $6.06 USD | View product → | |
| 22 | 90652-LFB5-900 | CLIP MUDGUARD | 4 | $7.17 USD | View product → | |
| 23 | 93404-06012-07G | 0 | 2 | $1.32 USD | View product → | |
| 24 | 93404-06016-07G | BOLT WASHER 6*16 (KG) | 2 | $2.31 USD | View product → | |
| 25 | 93903-24360 | SCREW TAPPING 4*12 | 12 | $4.92 USD | View product → |
