E06 — Starting Motor ● Oil Pump●Generator

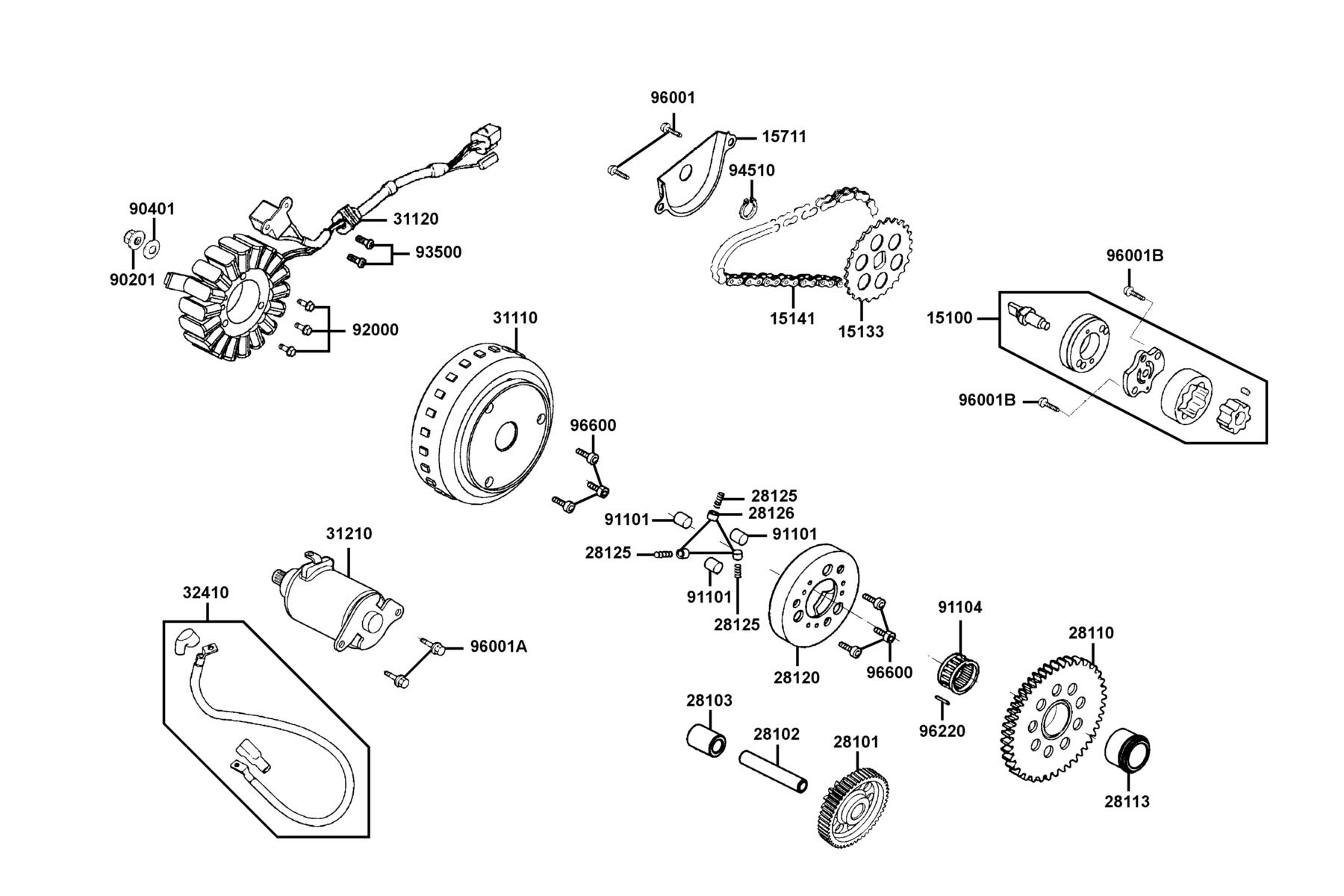

The Starting Motor ● Oil Pump●Generator diagram contains 30 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 15100-KEBE-900 | PUMP ASSY OIL | 1 | $123.54 USD | View product → | |
| 2 | 15133-KAM1-001 | SPROCKET OIL PUMP DRIVE | 1 | $28.98 USD | View product → | |
| 3 | 15141-KKJ9-004 | CHAIN OIL PUMP | 1 | $38.64 USD | View product → | |
| 4 | 15711-LFA7-E00 | SEPARATER OIL | 1 | $13.38 USD | View product → | |
| 5 | 28101-KKJ9-011 | GEAR STARTER REDUCTION | 1 | $84.60 USD | View product → | |
| 6 | 28102-LFA7-E00 | SHAFT STARTER REDUCTION GEAR | 1 | $11.70 USD | View product → | |
| 7 | 28103-LFA7-E00 | COLLAR 9x15.5x21.1 | 1 | — | Part details → | |
| 8 | 28110-LFA7-E00 | GEAR COMP STARTING CLUTCH | 1 | $141.30 USD | View product → | |
| 9 | 28113-LFA7-E00 | BUSH STARTING GEAR | 1 | — | Part details → | |
| 10 | 28120-KEBE-305 | OUTER COMP STARTING CLUTCH | 1 | $166.56 USD | View product → | |
| 11 | 28125-4F26-001 | SPRING ROLLER STARTER CLUTCH | 3 | $3.84 USD | View product → | |
| 12 | 28125-4F26-001(wrong) | SPRING ROLLER STARTER CLUTCH | 3 | $4.98 USD | View product → | |
| 13 | 28126-KUDU-900 | CAP STARTING ROLLER SPRING | 3 | $11.31 USD | View product → | |
| 14 | 31110-LFA7-E0B | FLYWHEEL COMP (D402) | 1 | $183.96 USD | View product → | |
| 15 | 31120-AAG3-E00 | STATOR COMP (D402) | 1 | $179.01 USD | View product → | |
| 16 | 31210-LEB1-90A | MOTOR UNIT START | 1 | $229.08 USD | View product → | |
| 17 | 32410-BAA5-E00 | CABLE START MOTOR | 1 | $52.29 USD | View product → | |
| 18 | 90201-KHR8-75A | NUT FLANGE 14MM | 1 | $9.39 USD | View product → | |
| 19 | 90401-KKJ9-001 | WASHER THRUST 14*28*2 | 1 | $5.67 USD | View product → | |
| 20 | 91101-1K79-711 | ROLLER 10*10 | 3 | $6.78 USD | View product → | |
| 21 | 91104-GFY6-90C-B | BRG NEEDLE 28X32X17 blue(-0.002~-0.004) | 1 | $45.78 USD | View product → | |
| 22 | 91104-GFY6-90C-R | BRG NEEDLE 28X32X17 red(0~-0.002) | 1 | $41.25 USD | View product → | |
| 23 | 92000-LEA6-900 | BOLT HEX 5*40 | 3 | $12.09 USD | View product → | |
| 24 | 93500-05016-0F | SCREW PAN 5*16 | 2 | $11.79 USD | View product → | |
| 25 | 94510-10000 | CIR CLIP EX 10MM | 1 | $4.92 USD | View product → | |
| 26 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → | |
| 27 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 1 | $12.12 USD | View product → | |
| 28 | 96001-06028-06 | BOLT FLANGE SH 6*28 | 1 | $1.95 USD | View product → | |
| 29 | 96220-60100 | ROLLER 6X10 | 1 | $4.92 USD | View product → | |
| 30 | 96600-08015-16 | SOCKET BOLT 8*15 | 1 | $21.60 USD | View product → |
