F15 — Stand

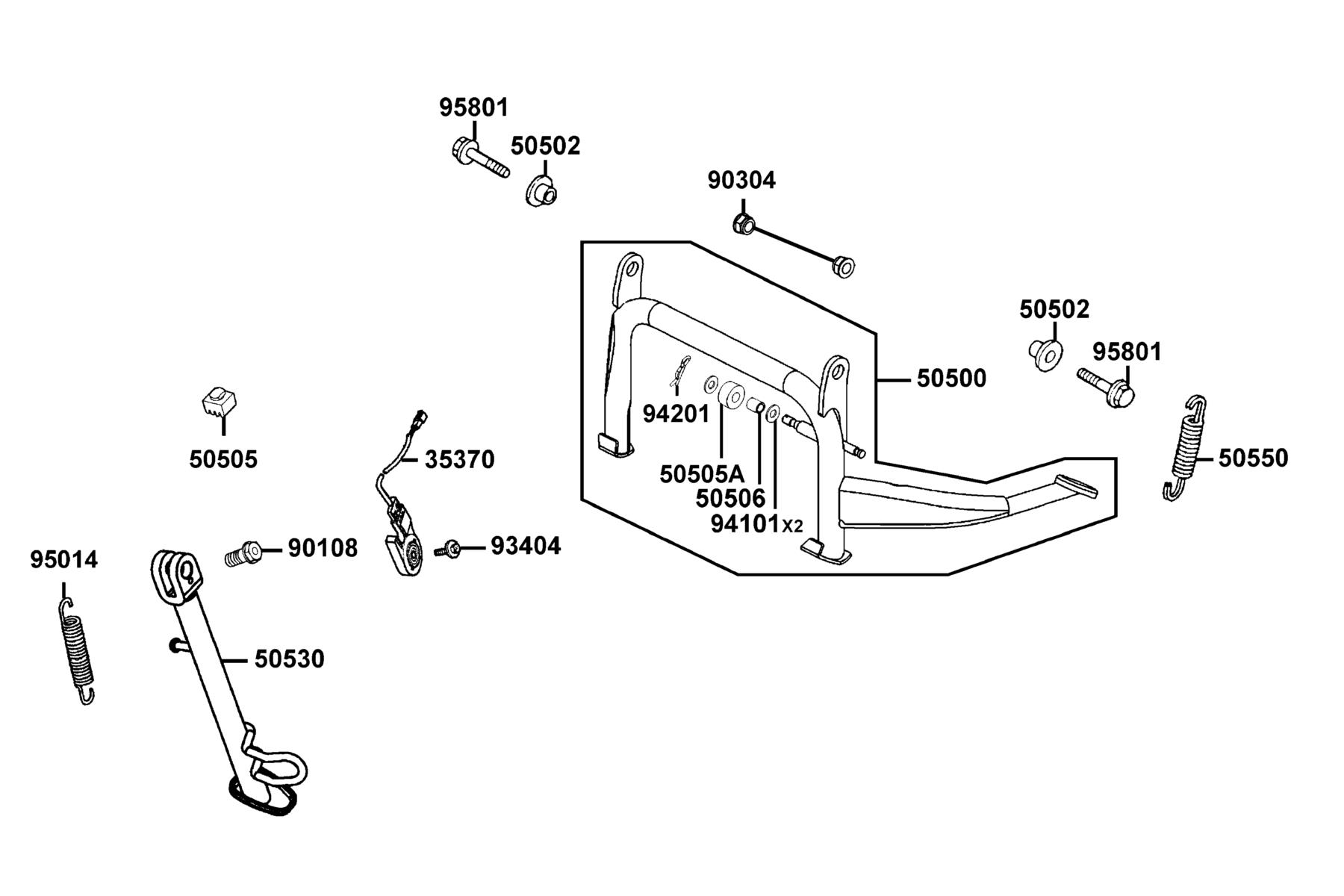

The Stand diagram contains 15 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 35370-BAA7-E00 | SW UNIT SIDE STAND | 1 | $91.14 USD | View product → | |
| 2 | 50500-BAA5-E00 | STAND MAIN COMP | 1 | — | Part details → | |
| 3 | 50502-LDF7-E10 | COLLAR MAIN STAND | 2 | $15.51 USD | View product → | |
| 4 | 50505-KEBE-900 | STOPPER RUBBER | 1 | $4.92 USD | View product → | |
| 5 | 50505-LEA7-E00 | STOPPER RUBBER | 1 | $16.68 USD | View product → | |
| 6 | 50506-KHE7-E00 | COLLAR STOPPER RUBBER | 1 | $9.78 USD | View product → | |
| 7 | 50530-BAA7-E00 | BAR SIDE STAND | 1 | $61.38 USD | View product → | |
| 8 | 50550-KKC2-E00 | SPG ASSY MAIN STAND | 1 | $27.42 USD | View product → | |
| 9 | 90108-KKC4-900 | SCREW SIDE STAND PIVOT | 1 | $15.06 USD | View product → | |
| 10 | 90304-LEA1-900 | NUT U FLANGE 10MM | 2 | $11.31 USD | View product → | |
| 11 | 93404-06016-07G | BOLT WASHER 6*16 (KG) | 1 | $2.31 USD | View product → | |
| 12 | 94101-08600 | WASH PLAIN 8MM | 2 | $2.25 USD | View product → | |
| 13 | 94201-20201 | PIN SPLIT 2.0*20 **20200 C.V. | 1 | — | Part details → | |
| 14 | 95014-72204 | SPG B1 SIDE STAND | 1 | $6.54 USD | View product → | |
| 15 | 95801-10030-06 | BOLT FLANGE 10X30 | 2 | $16.68 USD | View product → |
