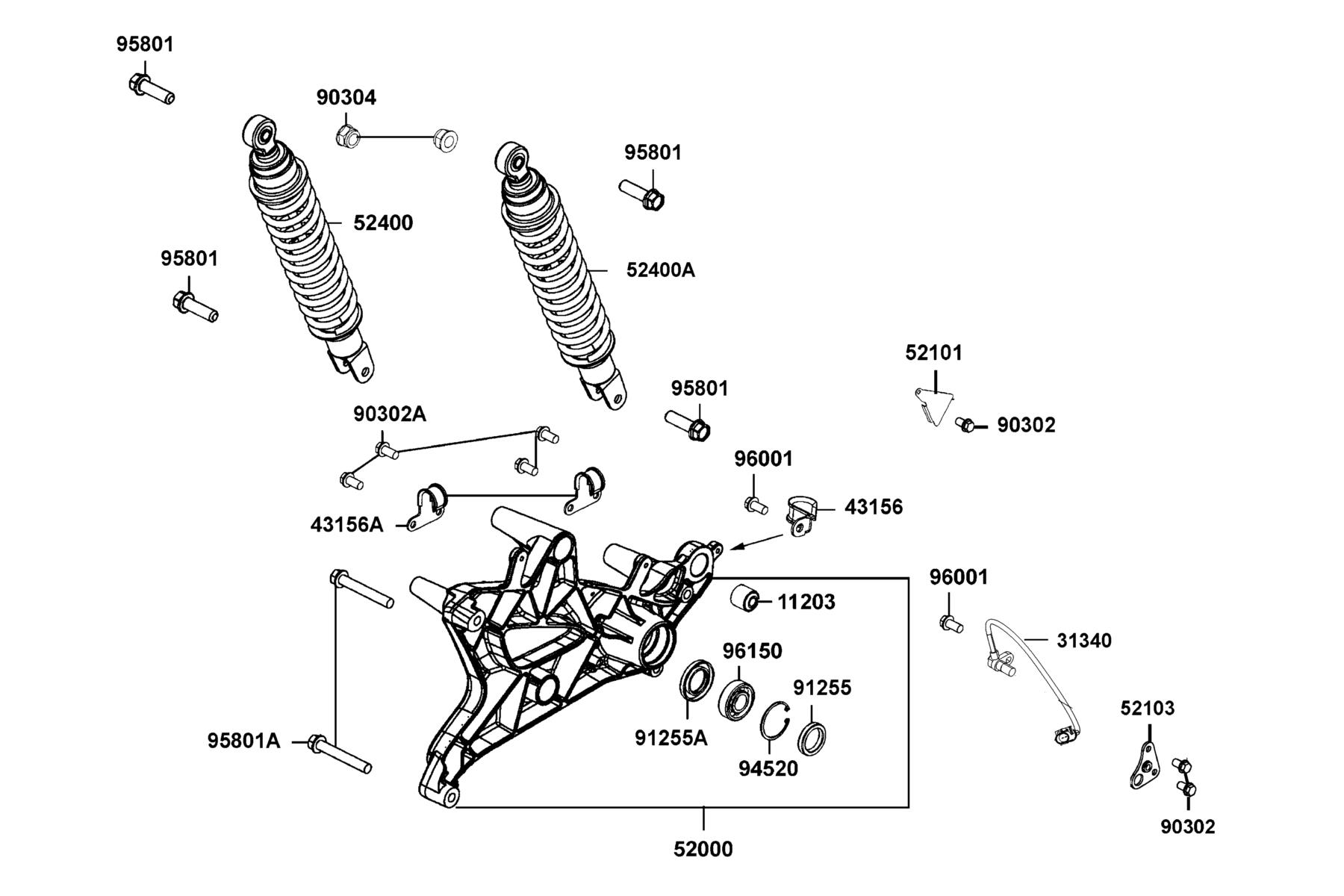

F16 — Rear Cushion
The Rear Cushion diagram contains 19 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11203-LBA2-E00 | RUB BUSH L CASE | 1 | $27.30 USD | View product → | |
| 2 | 31340-LFH1-E00 | SENSOR RR WHEEL SPEED | 1 | $168.96 USD | View product → | |
| 3 | 43156-LDB2-900 | CLAMPER HOSE RR | 1 | $10.53 USD | View product → | |
| 4 | 43156-LEA7-E00 | CLAMPER HOSE RR | 1 | $25.65 USD | View product → | |
| 5 | 52000-BAA5-E00-NEA | FORK ASSY RR | 1 | $326.46 USD | View product → | |
| 6 | 52101-LGE5-E01 | STAY RR SPEED SENSOR | 1 | — | Part details → | |
| 7 | 52103-LEA7-E01 | STAY ABS SENSOR | 1 | — | Part details → | |
| 8 | 52400-BAA5-E00-NES | CUSHION ASSY RR R | 1 | $197.16 USD | View product → | |
| 9 | 52400-BAA7-E00-NES | CUSHION ASSY RR | 1 | $268.05 USD | View product → | |
| 10 | 90302-LBF2-900 | BOLT-WASH M5X10 | 3 | $5.67 USD | View product → | |
| 11 | 90302-LLB1-E00 | BOLT-WASH 5X12 | 4 | $2.61 USD | View product → | |
| 12 | 90304-LEA1-900 | NUT U FLANGE 10MM | 2 | $11.31 USD | View product → | |
| 13 | 91255-LGE5-E00 | OIL SEAL 30*48*7 | 1 | $19.26 USD | View product → | |
| 14 | 91255-LLB1-900 | OIL SEAL 30*40*7 | 1 | $25.95 USD | View product → | |
| 15 | 94520-47000 | CIR CLIP IN 47 | 1 | $11.31 USD | View product → | |
| 16 | 95801-10040-06 | BOLT FLANGE 10X40 | 4 | $21.60 USD | View product → | |
| 17 | 95801-10075-06 | BOLT FLANGE 10x75 | 2 | $8.73 USD | View product → | |
| 18 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 2 | $1.95 USD | View product → | |
| 19 | 96150-62040-10 | BEARING BALL RADIAL 6204 | 1 | $54.18 USD | View product → |
