F19 — Wire Harness

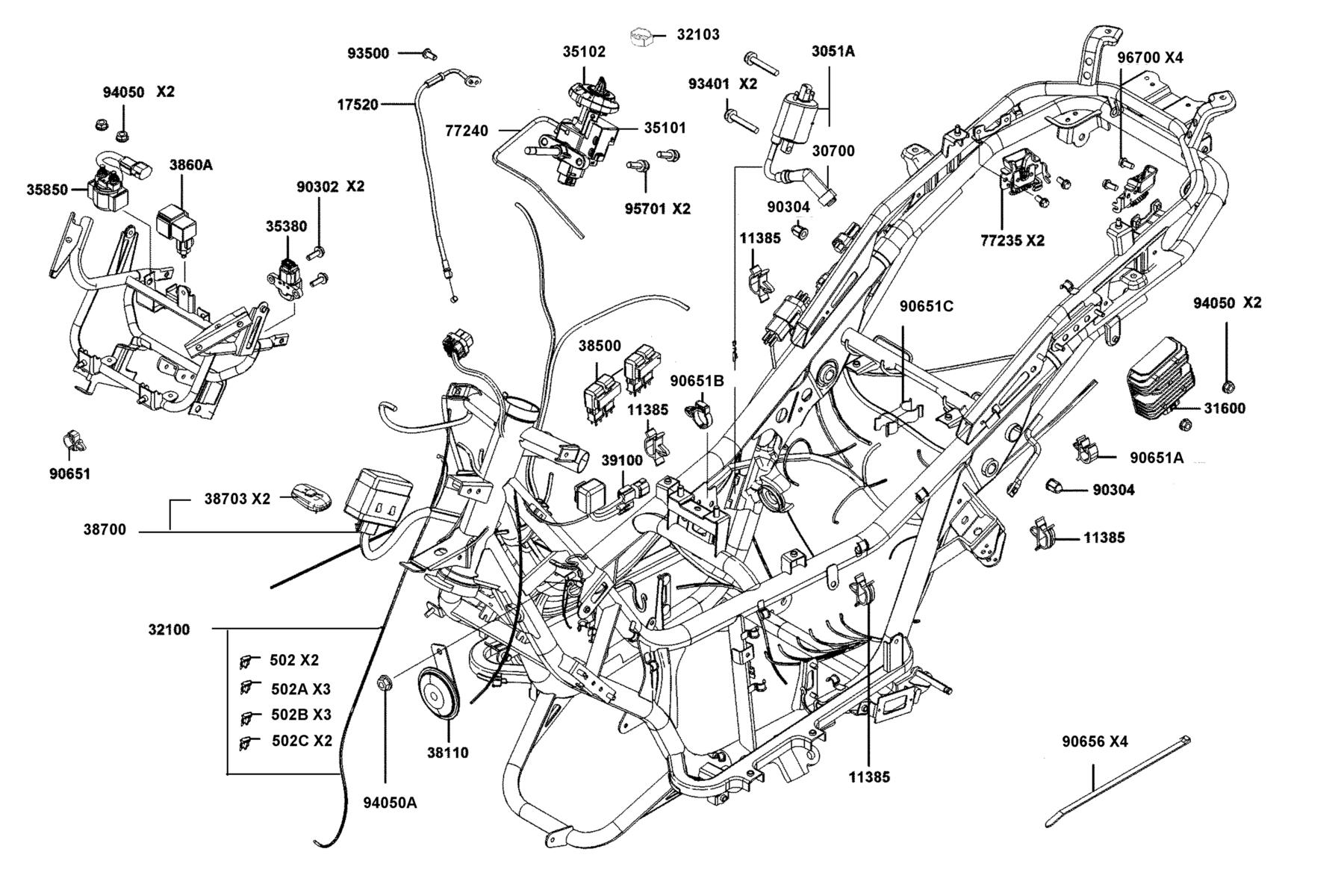

The Wire Harness diagram contains 36 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11385-KGBG-900 | CLIP VACUUM TUBE | 4 | $4.26 USD | View product → | |
| 2 | 17520-BAA7-E00 | CABLE COMP FUEL CAP | 1 | $55.77 USD | View product → | |
| 3 | 3051A-LKG5-E00 | COIL ASSY IGN | 1 | $133.95 USD | View product → | |
| 4 | 30700-LGM5-900 | CAP ASSY NOISE SUPPRESOR | 1 | $63.75 USD | View product → | |
| 5 | 31600-ZXA6-M01 | REG RECT COMP | 1 | $233.85 USD | View product → | |
| 6 | 32100-BAA5-E00 | HARNESS WIRE | 1 | $327.12 USD | View product → | |
| 7 | 32103-BAD6-800 | COVER DUST | 1 | — | Part details → | |
| 8 | 35101-AHG1-E00 | KEY SET LOCK& COMB | 1 | — | Part details → | |
| 9 | 35102-AGE2-E00 | COLLAR MAIN SW | 1 | $17.85 USD | View product → | |
| 10 | 35380-ABE1-E00 | SENSOR ANGLE DETECT (D106) | 1 | $114.06 USD | View product → | |
| 11 | 35850-KHB4-90F | SET START MAG | 1 | $68.52 USD | View product → | |
| 12 | 38110-BAA7-E00 | HORN COMP | 1 | $76.02 USD | View product → | |
| 13 | 38500-LGL3-90F | RELAY ASSY LIGHT/D113(12V 20A) | 2 | — | Part details → | |
| 14 | 3860A-AFB6-600 | CONTROL ASSY AUTO LIGHTING | 1 | — | Part details → | |
| 15 | 38700-AGE2-305 | KEYLESS SET | 1 | — | Part details → | |
| 16 | 38703-AGE2-E00 | REMOTE CONTROL | 2 | $373.23 USD | View product → | |
| 17 | 39100-ACD5-E00 | EMI FILTER FAN MOTOR | 1 | $88.77 USD | View product → | |
| 18 | 502-00063 | BLADE FUSE MINI 30A | 2 | — | Part details → | |
| 19 | 502-00149 | BLADE FUSE MINI 15A | 3 | $2.04 USD | View product → | |
| 20 | 502-00151 | BLADE FUSE MINI 10A | 3 | $2.04 USD | View product → | |
| 21 | 502-00164 | BLADE FUSE MINI 5A | 2 | $3.18 USD | View product → | |
| 22 | 77235-BAA7-E00 | SEAT CATCH COMP | 2 | $47.13 USD | View product → | |
| 23 | 77240-BAA7-E00 | CABLE ASSY SEAT LOCK | 1 | $57.27 USD | View product → | |
| 24 | 90302-GFY6-940 | BOLT-WASH 5*16 | 2 | $1.86 USD | View product → | |
| 25 | 90304-ZZA6-E00 | NUT CAP 6MM | 2 | — | Part details → | |
| 26 | 90651-ALJ8-E10 | CLIP CABLE | 1 | $1.17 USD | View product → | |
| 27 | 90651-LEA2-900 | CLIP TUBE | 1 | $6.24 USD | View product → | |
| 28 | 90651-LGM9-900 | CLIP CABLE | 1 | $1.26 USD | View product → | |
| 29 | 90651-LKG7-E00 | CLIP WIRE HARN | 1 | $8.07 USD | View product → | |
| 30 | 90656-KUDU-900-N1R | BAND HARNESS WIRE (Black) | 4 | $4.92 USD | View product → | |
| 31 | 93401-04025-06 | BOLT WASHER 4*25 | 2 | $13.95 USD | View product → | |
| 32 | 93500-KHC4-90A | SCREW PAN 5*10 | 1 | $8.19 USD | View product → | |
| 33 | 94050-06060 | NUT FLANGE 6MM | 4 | $4.92 USD | View product → | |
| 34 | 94050-08060 | NUT FLANGE 8MM | 1 | $5.31 USD | View product → | |
| 35 | 95701-LEA5-E00 | BOLT TORQUE 8*25 | 2 | $14.31 USD | View product → | |
| 36 | 96700-06010-16 | SOCKET BOLT 6*10 (C) | 4 | — | Part details → |
