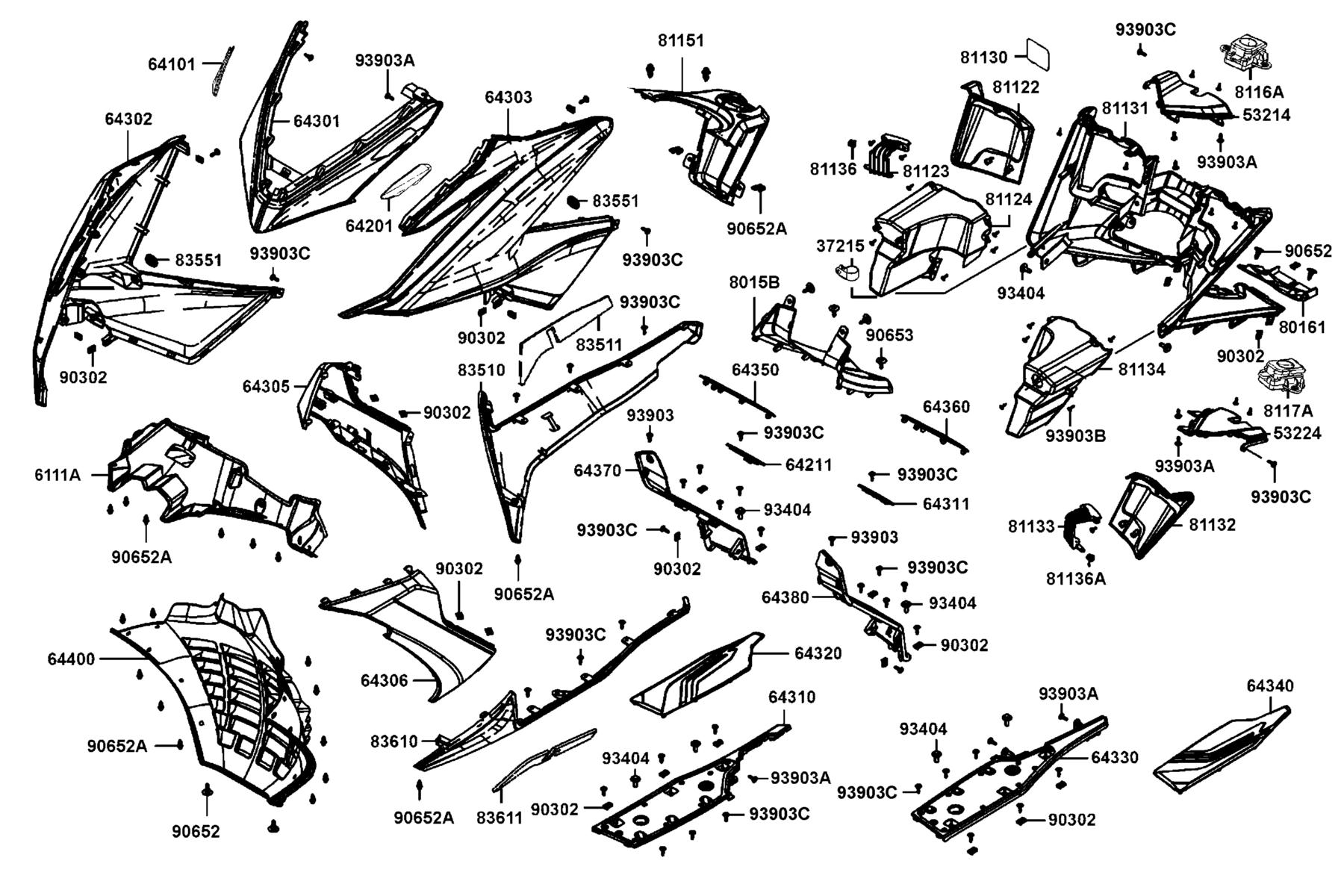

F05 — Front Cover●Floor Panel
The Front Cover●Floor Panel diagram contains 51 genuine OEM parts for the KYMCO AK550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 37215-LHJ3-900 | CLAMPER | 1 | $1.47 USD | View product → | |
| 2 | 53214-LGC6-E00 | LEG SHIELD UP R SIDE | 1 | $8.43 USD | View product → | |
| 3 | 53224-LGC6-E00 | LEG SHIELD UP L SIDE | 1 | $6.33 USD | View product → | |
| 4 | 6111A-LGC6-E00-N1R | FENDER ASSY FRONT INNER (Black) | 1 | $24.36 USD | View product → | |
| 5 | 64101-LGC6-E00 | RUBBER R FR COVER | 1 | $7.35 USD | View product → | |
| 6 | 64201-LGC6-E00 | RUBBER L FR COVER | 1 | $7.35 USD | View product → | |
| 7 | 64211-LGC6-E00-N1R | LID OBD COUPLER (Black) | 1 | $2.97 USD | View product → | |
| 8 | 64301-LGC6-E00-T01 | COVER FRONT | 1 | $100.77 USD | View product → | |
| 9 | 64302-LGC6-E00-CVP | MOLDING A R SIDE | 1 | $155.01 USD | View product → | |
| 10 | 64303-LGC6-E00-CVP | MOLDING A L SIDE | 1 | $154.74 USD | View product → | |
| 11 | 64305-LGC6-E00-NEP | SKIRT R SIDE | 1 | $19.41 USD | View product → | |
| 12 | 64306-LGC6-E00-NEP | SKIRT L SIDE | 1 | $87.30 USD | View product → | |
| 13 | 64310-LGC6-E00-N1R | PANEL A R FLOOR (Black) | 1 | $5.91 USD | View product → | |
| 14 | 64311-LGC6-E00-N1R | LID RESERVE TANK (Black) | 1 | $2.28 USD | View product → | |
| 15 | 64320-LGC6-E00-N1R | MAT R FLOOR (Black) | 1 | $1.89 USD | View product → | |
| 16 | 64330-LGC6-E00-N1R | PANEL A L FLOOR (Black) | 1 | $26.70 USD | View product → | |
| 17 | 64340-LGC6-E00-N1R | MAT L FLOOR (Black) | 1 | $2.01 USD | View product → | |
| 18 | 64350-LGC6-E00-N1R | MAT R LEG SHIELD (Black) | 1 | $6.81 USD | View product → | |
| 19 | 64360-LGC6-E00-N1R | MAT L LEG SHIELD (Black) | 1 | $1.14 USD | View product → | |
| 20 | 64370-LGC6-E00-N1R | PANEL B R FLOOR (Black) | 1 | $24.36 USD | View product → | |
| 21 | 64380-LGC6-E00-N1R | PANEL B L FLOOR (Black) | 1 | $24.36 USD | View product → | |
| 22 | 64400-LGC6-E00-N1R | COWL UNDER (Black) | 1 | $19.26 USD | View product → | |
| 23 | 8015B-LGC6-E00-N1R | COVER ASSY. CENTER (Black) | 1 | $15.84 USD | View product → | |
| 24 | 80161-LGC6-E00 | LID LEG SHIELD | 1 | $7.50 USD | View product → | |
| 25 | 81122-LGC6-E00 | LID R FR INNER BOX | 1 | $8.52 USD | View product → | |
| 26 | 81123-LGC6-E00 | HINGE R FR INNER BOX | 1 | $3.84 USD | View product → | |
| 27 | 81124-LGC6-E00 | BOX R FR INNER BOX | 1 | $11.91 USD | View product → | |
| 28 | 81130-LGC6-E00 | SEAL FR INNER BOX | 1 | $2.97 USD | View product → | |
| 29 | 81131-LGC6-E00 | LEG SHIELD | 1 | $6.42 USD | View product → | |
| 30 | 81132-LGC6-E00 | LID L FR INNER BOX | 1 | $8.52 USD | View product → | |
| 31 | 81133-LGC6-E00 | HINGE L FR INNER BOX | 1 | $3.84 USD | View product → | |
| 32 | 81134-LGC6-E00 | BOX L FR INNER BOX | 1 | $11.91 USD | View product → | |
| 33 | 81136-ACD5-E00 | SPRING FR INNER BOX / R | 1 | $1.59 USD | View product → | |
| 34 | 81136-LEA7-E00 | SPRING FR INNER BOX L | 1 | $33.72 USD | View product → | |
| 35 | 81151-LGC6-E00-T01 | COVER KEY | 1 | $365.01 USD | View product → | |
| 36 | 8116A-LGC6-E00 | LOCK ASSY. R FR BOX | 1 | $14.13 USD | View product → | |
| 37 | 8117A-LGC6-E00 | LOCK ASSY L FR BOX | 1 | $14.13 USD | View product → | |
| 38 | 83510-LGC6-E00-CVP | COVER R SIDE | 1 | $79.53 USD | View product → | |
| 39 | 83511-LGC6-E00 | SPONGE R SIDE COVER | 1 | $22.65 USD | View product → | |
| 40 | 83551-LGC6-E00 | GROMMER COVER | 2 | $2.28 USD | View product → | |
| 41 | 83610-LGC6-E00-CVP | COVER L SIDE | 1 | $81.96 USD | View product → | |
| 42 | 83611-LGC6-E00 | SPONGE L SIDE COVER | 1 | $35.25 USD | View product → | |
| 43 | 90302-SA4-0040 | NUT SPRING 4MM | 24 | $4.26 USD | View product → | |
| 44 | 90652-LCA4-E00 | CLIP MUDGUARD | 6 | $4.92 USD | View product → | |
| 45 | 90652-LFB5-900 | CLIP MUDGUARD | 22 | $7.17 USD | View product → | |
| 46 | 90653-LGC6-E00 | CLIP MUDGUARD | 4 | $1.95 USD | View product → | |
| 47 | 93404-06012-06 | BOLT WASHER 6X12 | 8 | $2.61 USD | View product → | |
| 48 | 93903-14460 | SCREW TAPPING 4*16 | 2 | $4.17 USD | View product → | |
| 49 | 93903-24360 | SCREW TAPPING 4*12 | 5 | $4.92 USD | View product → | |
| 50 | 93903-34360 | SCREW TAPPING 4X12 | 22 | $4.29 USD | View product → | |
| 51 | 93903-GFY6-900 | SCREW TAPPING 4*14 | 38 | $2.61 USD | View product → |
