F10 — Fuel Tank

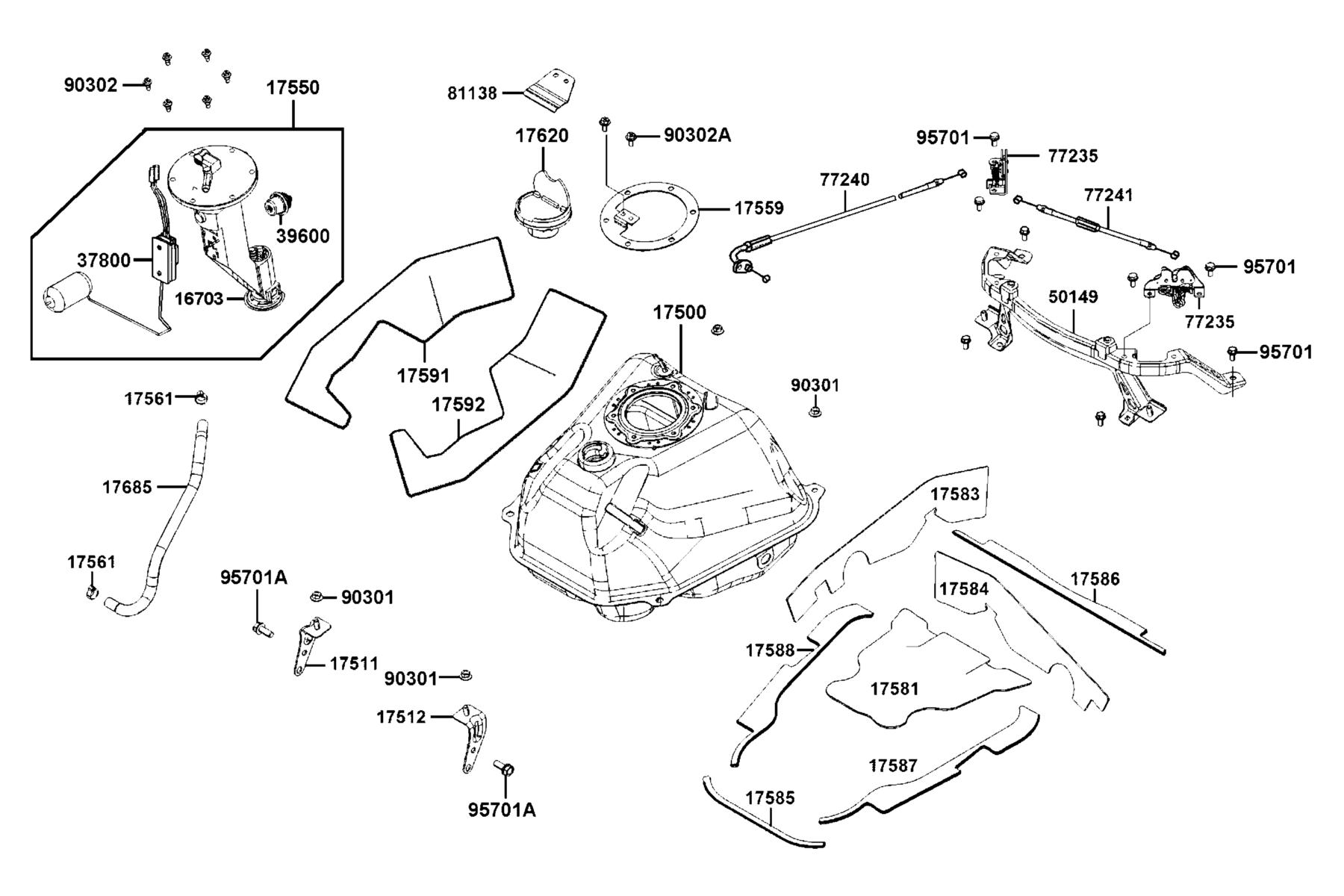

The Fuel Tank diagram contains 33 genuine OEM parts for the KYMCO AK550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 16703-LHJ8-800 | FUEL FILTER ASSY | 1 | $50.55 USD | View product → | |
| 2 | 17500-LGC6-E00 | TANK COMP FUEL | 1 | $406.86 USD | View product → | |
| 3 | 17511-LGC6-E00 | STAY R FUEL TANK | 1 | $12.45 USD | View product → | |
| 4 | 17512-LGC6-E00 | STAY L FUEL TANK | 1 | $12.45 USD | View product → | |
| 5 | 17550-LGC6-E00 | PUMP ASS'Y FUEL | 1 | $513.66 USD | View product → | |
| 6 | 17553-LGC6-E00 | JOINT | 1 | — | Part details → | |
| 7 | 17559-LGC6-E00 | STAY FUEL CAP CATCH | 1 | $17.07 USD | View product → | |
| 8 | 17561-LGC6-E00 | O RING | 1 | — | Part details → | |
| 9 | 17561-LKB9-900 | CLIP 12.5 | 2 | $8.10 USD | View product → | |
| 10 | 17562-LGC6-E00 | O RING | 1 | — | Part details → | |
| 11 | 17581-LGC6-E00 | HEAT GUARD FUEL TANK BOTTOM | 1 | $79.02 USD | View product → | |
| 12 | 17583-LGC6-E00 | HEAT GUARD FUEL TANK R | 1 | $75.69 USD | View product → | |
| 13 | 17584-LGC6-E00 | HEAT GUARD FUEL TANK L | 1 | $68.07 USD | View product → | |
| 14 | 17585-LGC6-E00 | HEAT GUARD D FUEL TANK SIDE | 1 | $4.05 USD | View product → | |
| 15 | 17586-LGC6-E00 | HEAT GUARD A FUEL TANK SIDE | 1 | $5.22 USD | View product → | |
| 16 | 17587-LGC6-E00 | HEAT GUARD B FUEL TANK SIDE | 1 | $15.09 USD | View product → | |
| 17 | 17588-LGC6-E00 | HEAT GUARD C FUEL TANK SIDE | 1 | $15.09 USD | View product → | |
| 18 | 17591-LGC6-E00 | HEAT GUARD R，FUEL TANK TOPPER | 1 | $60.12 USD | View product → | |
| 19 | 17592-LGC6-E00 | HEAT GUARD L，FUEL TANK TOPPER | 1 | $60.12 USD | View product → | |
| 20 | 17620-LGC6-E00 | CAP COMP FUEL FILLER | 1 | $111.42 USD | View product → | |
| 21 | 17685-LGC6-M90 | TUBE， FUEL PUMP | 1 | $70.80 USD | View product → | |
| 22 | 37800-LGC6-E00 | FUEL UNIT | 1 | $55.05 USD | View product → | |
| 23 | 39600-ACH6-900 | REGULATOR FUEL | 1 | $72.54 USD | View product → | |
| 24 | 50149-LGC6-E00 | STAY SEAT CATCH | 1 | $135.48 USD | View product → | |
| 25 | 77235-LGC6-E00 | CATCH COMP.???SEAT | 2 | $38.88 USD | View product → | |
| 26 | 77240-LGC6-E00 | CABLE ASSY. SEAT LOCK | 1 | $37.95 USD | View product → | |
| 27 | 77241-LGC6-E00 | CABLE COMP. SEAT CATCH | 1 | $15.09 USD | View product → | |
| 28 | 81138-LGC6-E00 | SET LOCK | 1 | $6.39 USD | View product → | |
| 29 | 90301-6D34-671 | NUT FLANGE 6MM | 4 | $3.00 USD | View product → | |
| 30 | 90302-GFY6-940 | BOLT-WASH 5*16 | 6 | $1.86 USD | View product → | |
| 31 | 90302-LLB1-E00 | BOLT-WASH 5X12 | 2 | $2.61 USD | View product → | |
| 32 | 95701-06012-06 | BOLT FLANGE 6X12 | 8 | $1.86 USD | View product → | |
| 33 | 95701-08016-06 | BOLT FLANGE 8*16 | 2 | $4.53 USD | View product → |
