F12 — Body Cover●Luggage Box

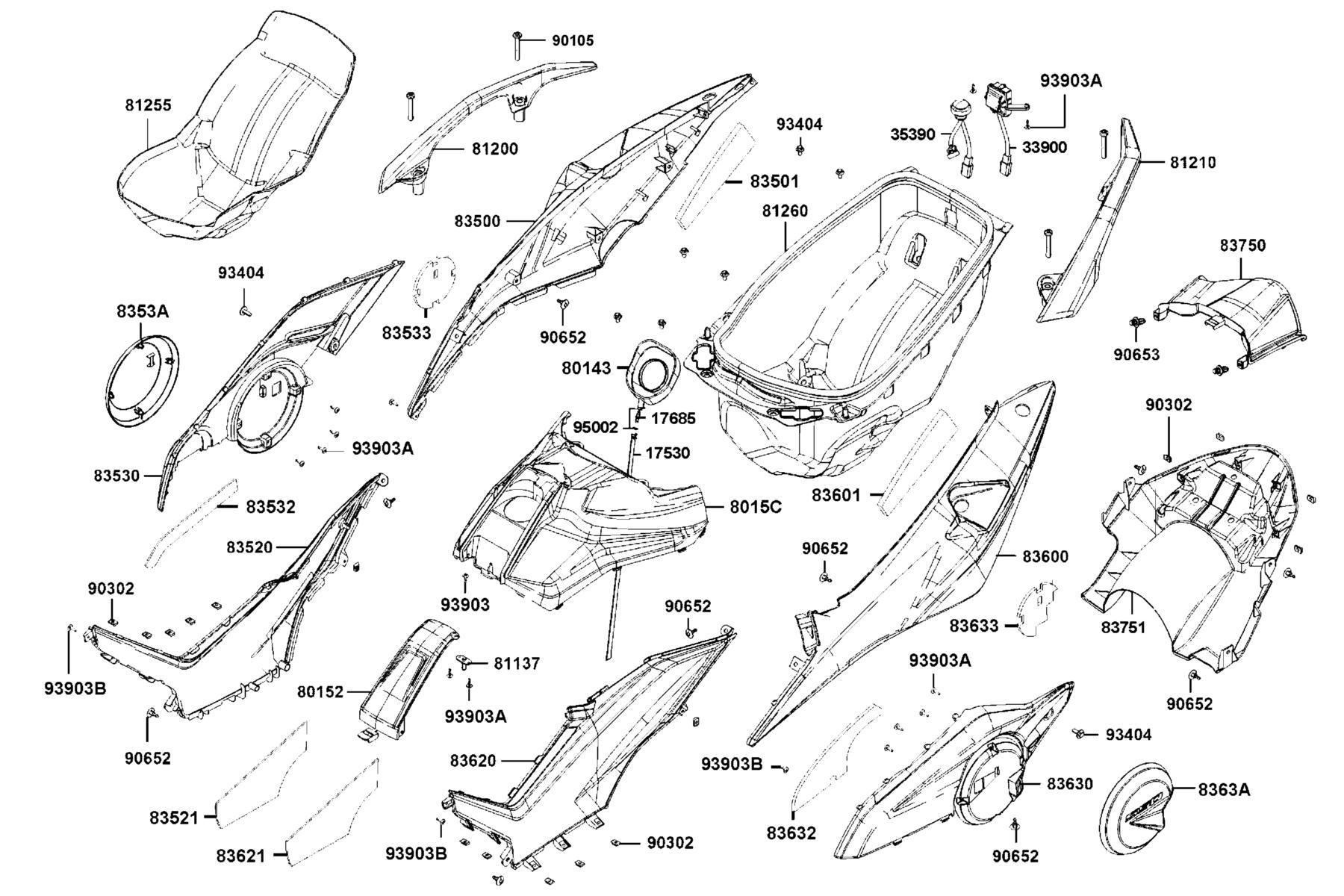

The Body Cover●Luggage Box diagram contains 40 genuine OEM parts for the KYMCO AK550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17530-KGB5-900 | TUBE ASSY DRAIN | 1 | $12.45 USD | View product → | |
| 2 | 17685-KZCZ-900 | JOINT TUBE | 1 | $5.67 USD | View product → | |
| 3 | 33900-LGC6-E00 | LIGHT ASSY.. LUGGAGE BOX | 1 | $51.90 USD | View product → | |
| 4 | 35390-LHG7-E00 | SENSOR LUGGAGE BOX LIGHT | 1 | $165.09 USD | View product → | |
| 5 | 80143-LGC6-E00 | RUBBER FUEL CAP | 1 | $33.09 USD | View product → | |
| 6 | 80152-LGC6-E00-T01 | LID FUEL CAP MAINT | 1 | $68.58 USD | View product → | |
| 7 | 8015C-LGC6-E00-N1R | COVER B ASSY.???CENTER (Black) | 1 | $11.85 USD | View product → | |
| 8 | 81137-LGC6-E00 | HOOK FUEL COVER | 1 | $24.33 USD | View product → | |
| 9 | 81200-LGC6-E00-CVP | CARRIER R REAR | 1 | $140.34 USD | View product → | |
| 10 | 81210-LGC6-E00-CVP | CARRIER L REAR | 1 | $133.65 USD | View product → | |
| 11 | 81255-LGC6-E00 | PAD LUGGAGE | 1 | $133.26 USD | View product → | |
| 12 | 81260-LGC6-M30 | BOX ASSY LUGGAGE | 1 | $147.84 USD | View product → | |
| 13 | 83500-LGC6-E00-CVP | COVER R BODY | 1 | $139.86 USD | View product → | |
| 14 | 83501-LGC6-E00 | SPONGE R BODY COVER | 1 | $10.74 USD | View product → | |
| 15 | 83520-LGC6-E00-N1R | BOARD A R SIDE (Black) | 1 | $25.20 USD | View product → | |
| 16 | 83521-LGC6-E00 | SPONGE BOARD A R SIDE | 1 | $22.65 USD | View product → | |
| 17 | 83530-LGC6-E00-ZBP | BOARD B R SIDE | 1 | $99.66 USD | View product → | |
| 18 | 83532-LGC6-E00 | SPONGE A BOARD B R SIDE | 1 | $11.49 USD | View product → | |
| 19 | 83533-LGC6-E00 | SPONGE B BOARD B R SIDE | 1 | $20.13 USD | View product → | |
| 20 | 8353A-LGC6-E01-T01 | GRILLE ASSY R BOARD | 1 | — | Part details → | |
| 21 | 83600-LGC6-E00-CVP | COVER L SIDE | 1 | $146.85 USD | View product → | |
| 22 | 83601-LGC6-E00 | SPONGE L BODY COVER | 1 | $10.74 USD | View product → | |
| 23 | 83620-LGC6-E00-N1R | BOARD A???L SIDE (Black) | 1 | $17.55 USD | View product → | |
| 24 | 83621-LGC6-E00 | SPONGE BOARD A L SIDE | 1 | $31.74 USD | View product → | |
| 25 | 83630-LGC6-E00-ZBP | BOARD B L SIDE | 1 | $93.57 USD | View product → | |
| 26 | 83632-LGC6-E00 | SPONGE A BOARD B L SIDE | 1 | $30.90 USD | View product → | |
| 27 | 83633-LGC6-E00 | SPONGE B BOARD B L SIDE | 1 | $13.62 USD | View product → | |
| 28 | 8363A-LGC6-E00-T01 | GRILLE ASSY. L BOARD | 1 | $99.24 USD | View product → | |
| 29 | 8363A-LGC6-E01-T01 | GRILLE ASSY L BOARD | 1 | — | Part details → | |
| 30 | 83750-LGC6-E00-CVP | COVER B RR CENTER | 1 | $48.81 USD | View product → | |
| 31 | 83751-LGC6-E00-N1R | COVER B.RR CENTER (Black) | 1 | $5.16 USD | View product → | |
| 32 | 90105-LGC6-E00 | BOLT-WASH 8MM | 4 | $9.09 USD | View product → | |
| 33 | 90302-SA4-0040 | NUT SPRING 4MM | 12 | $4.26 USD | View product → | |
| 34 | 90652-LCA4-E00 | CLIP MUDGUARD | 10 | $4.92 USD | View product → | |
| 35 | 90653-LKB9-900 | CLIP MUDGUARD | 2 | $2.82 USD | View product → | |
| 36 | 93404-06012-06 | BOLT WASHER 6X12 | 6 | $2.61 USD | View product → | |
| 37 | 93903-14460 | SCREW TAPPING 4*16 | 1 | $4.17 USD | View product → | |
| 38 | 93903-24360 | SCREW TAPPING 4*12 | 12 | $4.92 USD | View product → | |
| 39 | 93903-GFY6-900 | SCREW TAPPING 4*14 | 4 | $2.61 USD | View product → | |
| 40 | 95002-02080 | CLIP B8 TUBE | 2 | $1.86 USD | View product → |
