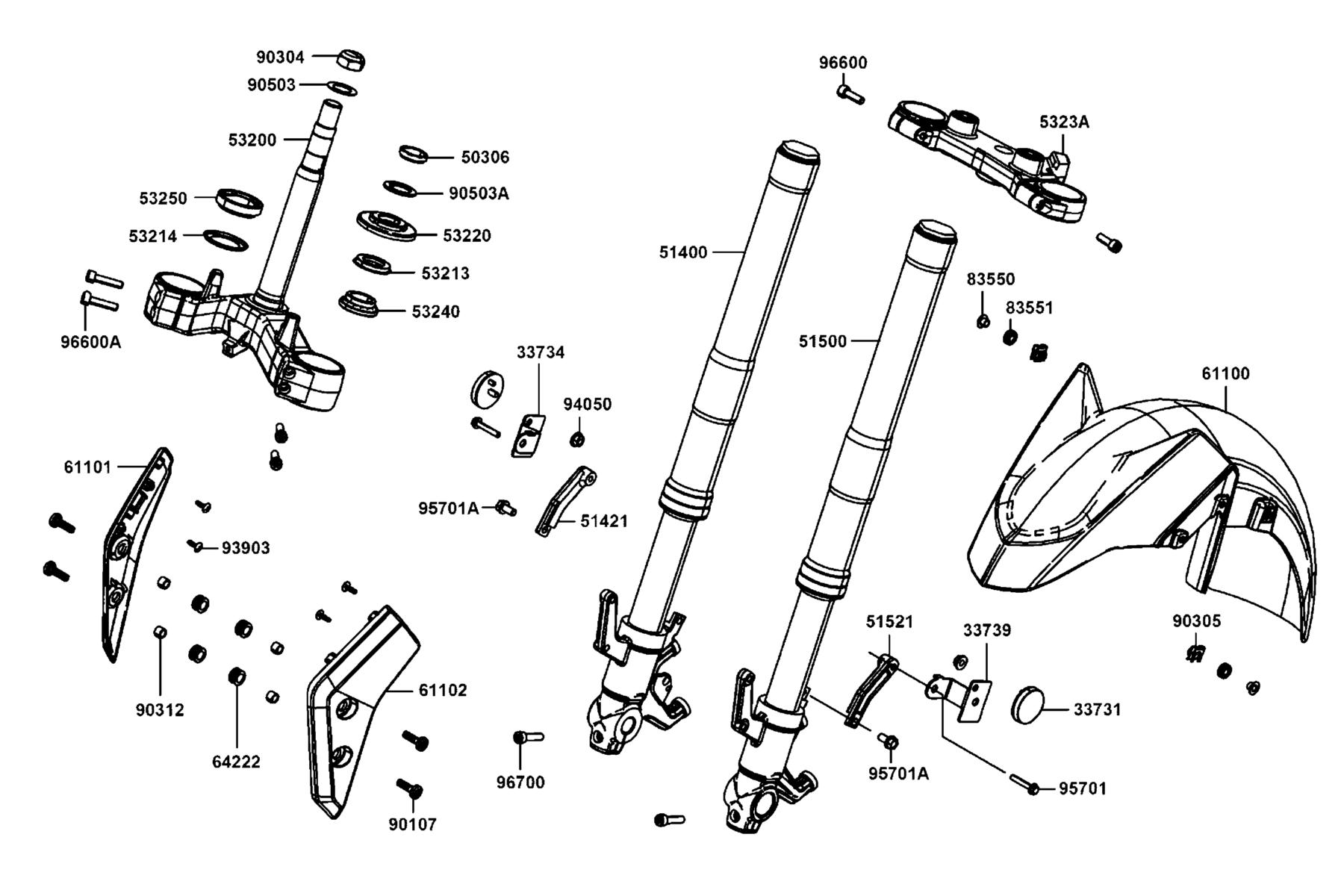

F06 — Front Cushion
The Front Cushion diagram contains 34 genuine OEM parts for the KYMCO AK550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33731-LHJ8-900 | REFLEX REFLECTOR. SIDE | 2 | $9.27 USD | View product → | |
| 2 | 33734-LGC6-E00 | STAY RH REFLEX REFLECTOR | 1 | $6.48 USD | View product → | |
| 3 | 33739-LGC6-E00 | STAY LH REFLEX REFLECTOR | 1 | $6.48 USD | View product → | |
| 4 | 50306-1F96-001 | NUT STRG STEM LOCK | 1 | $17.28 USD | View product → | |
| 5 | 51400-LGC6-E00-T01 | FORK ASSY FR R | 1 | $582.20 USD | View product → | |
| 6 | 51421-LGC6-E00-NEA | STAY FR FENDER R | 1 | $6.24 USD | View product → | |
| 7 | 51500-LGC6-E00-T01 | FORK ASSY FR L | 1 | $582.20 USD | View product → | |
| 8 | 51521-LGC6-E00-NEA | STAY FR FENDER L | 1 | $28.05 USD | View product → | |
| 9 | 53200-LGC6-E00 | STEM COMP STRG | 1 | $353.88 USD | View product → | |
| 10 | 53213-LBA2-E00 | DUST SEAL STRG HEAD TOP | 1 | $11.31 USD | View product → | |
| 11 | 53214-LBA2-E00 | DUST SEAL STRG (HEAD) | 1 | $13.17 USD | View product → | |
| 12 | 53220-LGC6-E00 | THREAD COMP. STRG HEAD TOP | 1 | $24.66 USD | View product → | |
| 13 | 5323A-LGC6-E00 | BRIDGE ASSY FR FORK | 1 | $260.73 USD | View product → | |
| 14 | 53240-LEA7-90A | BEARING TOP STRG | 1 | $78.84 USD | View product → | |
| 15 | 53250-LEA7-90A | BEARING BOT STRG | 1 | $78.84 USD | View product → | |
| 16 | 61100-LGC6-E00-DLA | FENDER A FRONT (Mat Blue / Mat Black) | 1 | $199.65 USD | View product → | |
| 17 | 61101-LGC6-E00-NEP | FENDER COVER R SIDE | 1 | $36.93 USD | View product → | |
| 18 | 61102-LGC6-E00-NEP | FENDER COVER L SIDE | 1 | $8.19 USD | View product → | |
| 19 | 64222-LLJ3-E00 | RUBBER WIND SCREEN | 4 | $3.66 USD | View product → | |
| 20 | 83550-KEC8-900 | COLLAR | 2 | $10.35 USD | View product → | |
| 21 | 83551-KEC8-900 | GROMMET COVER | 2 | $6.09 USD | View product → | |
| 22 | 90107-LEA7-E00 | BOLT SPECIAL 8MM | 4 | $25.65 USD | View product → | |
| 23 | 90304-KKE5-E00 | NUT. STRG. STEM | 1 | $53.43 USD | View product → | |
| 24 | 90305-LBA2-E00 | NUT CLIP 6MM | 2 | $3.78 USD | View product → | |
| 25 | 90312-LLJ3-E00 | COLLAR WIND SCREEN | 4 | $12.12 USD | View product → | |
| 26 | 90503-KKE5-E00 | WASHER STEERING STEM NUT | 1 | $15.45 USD | View product → | |
| 27 | 90503-LEA7-E00 | WASHER STRG STEM NUT | 1 | $23.31 USD | View product → | |
| 28 | 93903-24360 | SCREW TAPPING 4*12 | 4 | $4.92 USD | View product → | |
| 29 | 94050-06060 | NUT FLANGE 6MM | 2 | $4.92 USD | View product → | |
| 30 | 95701-06040-06 | BOLT FLANGE 6*40 | 2 | $2.61 USD | View product → | |
| 31 | 95701-08016-06 | BOLT FLANGE 8*16 | 2 | $4.53 USD | View product → | |
| 32 | 96600-08025-06 | SOCKET BOLT 8X25 | 2 | $6.54 USD | View product → | |
| 33 | 96600-08035-06 | SOCKET BOLT 8X35 | 4 | $8.67 USD | View product → | |
| 34 | 96700-KED9-900 | BOLT SOCKET 8*30 | 2 | $4.92 USD | View product → |
