E09 — Gear Case Front

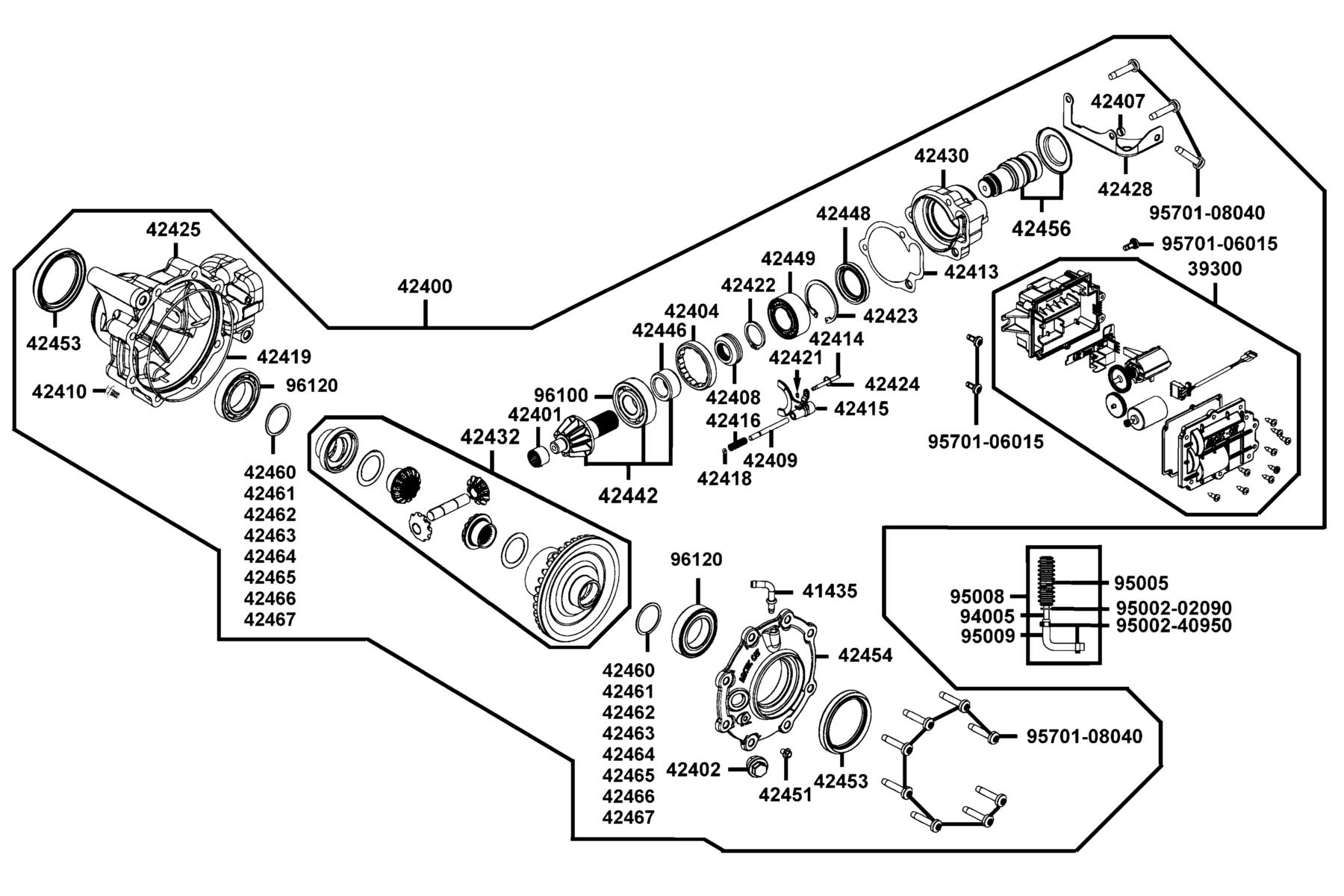

The Gear Case Front diagram contains 47 genuine OEM parts for the KYMCO MAXXER 450i (2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 39300-LFA5-E00 | 2*4 ACTUATOR ASM | 1 | $403.16 USD | View product → | |
| 2 | 41435-LFA5-900 | BARB 90 DEG | 1 | $72.93 USD | View product → | |
| 3 | 42400-LGC3-900 | GEARCASE FRONT (3.1) ASSEMBLY | 1 | $1962.84 USD | View product → | |
| 4 | 42402-LFA5-900 | PLUG FILL | 1 | $110.16 USD | View product → | |
| 5 | 42404-LFA5-900 | COLLAR LOCK M64X1.5 RH | 1 | $125.97 USD | View product → | |
| 6 | 42407-LFA5-900 | PIN DOWEL | 1 | $32.73 USD | View product → | |
| 7 | 42408-LFA5-900 | COUPLER DRIVE | 1 | $153.39 USD | View product → | |
| 8 | 42410-LFA5-900 | PLUG DRAIN MAG | 1 | $75.12 USD | View product → | |
| 9 | 42413-LFA5-900 | GASKET FLANGE | 1 | $23.64 USD | View product → | |
| 10 | 42414-LFA5-900 | SHAFT SELECTOR | 1 | $132.06 USD | View product → | |
| 11 | 42415-LFA5-900 | FORK SELECTOR | 1 | $165.69 USD | View product → | |
| 12 | 42416-LFA5-900 | SPRING RETURN 4WD | 1 | $2.73 USD | View product → | |
| 13 | 42418-LFA5-900 | O-RING 3*2MM | 1 | $0.81 USD | View product → | |
| 14 | 42419-LFA5-900 | O-RING 150*2MM | 1 | $18.06 USD | View product → | |
| 15 | 42421-LFA5-900 | RING RETAINING (4mm EXT) | 1 | $13.17 USD | View product → | |
| 16 | 42422-LFA5-900 | RING RETAINING ONE | 1 | $28.35 USD | View product → | |
| 17 | 42423-LFA5-900 | RING RETAINING | 1 | $32.10 USD | View product → | |
| 18 | 42424-LFA5-900 | O-RING ACTUATOR | 1 | $6.24 USD | View product → | |
| 19 | 42425-LFA5-900 | HOUSING GEARCASE-FRONT MACH | 1 | $454.98 USD | View product → | |
| 20 | 42428-LFA5-900 | BRACKET ACTUATOR WELDT | 1 | $100.83 USD | View product → | |
| 21 | 42430-LFA5-900 | HOUSING PINION MACH | 1 | $214.17 USD | View product → | |
| 22 | 42432-LFA5-900 | GEAR(34 TOOTH 3.1)-WELDMENT | 1 | $770.46 USD | View product → | |
| 23 | 42442-LFA5-900 | PINION(11 TOOTH)-ASSEMBLY | 1 | $400.35 USD | View product → | |
| 24 | 42446-LFA5-900 | COLLAR RETAINING | 1 | $45.36 USD | View product → | |
| 25 | 42448-LFA5-900 | SEAL 38*55*14 | 1 | $49.26 USD | View product → | |
| 26 | 42451-LFA5-900 | PLUG OIL LEVEL | 1 | $47.76 USD | View product → | |
| 27 | 42453-LGC3-900 | OIL SEAL 48*84*9 | 1 | $87.45 USD | View product → | |
| 28 | 42454-LFA5-900 | COVER GEARCASE-FR MACH | 1 | $183.75 USD | View product → | |
| 29 | 42456-LFA5-900 | SHAFT INPUT ASSEMBLY | 1 | $175.62 USD | View product → | |
| 30 | 42460-LFA5-900 | SHIM 41*49*1.0 | 2 | $20.64 USD | View product → | |
| 31 | 42461-LFA5-900 | SHIM 41*49*1.1 | 2 | $20.64 USD | View product → | |
| 32 | 42462-LFA5-900 | SHIM 41*49*1.2 | 2 | $18.57 USD | View product → | |
| 33 | 42463-LFA5-900 | SHIM 41*49*1.3 | 2 | $20.64 USD | View product → | |
| 34 | 42464-LFA5-900 | SHIM 41*49*1.4 | 1 | $20.64 USD | View product → | |
| 35 | 42465-LFA5-900 | SHIM 41*49*1.5 | 2 | $20.64 USD | View product → | |
| 36 | 42466-LFA5-900 | SHIM 41*49*1.6 | 2 | $20.64 USD | View product → | |
| 37 | 42467-LFA5-900 | SHIM 41*49*1.7 | 2 | $20.64 USD | View product → | |
| 38 | 90110-LFA5-900 | BOLT SPECIAL 6X12 | 1 | $25.35 USD | View product → | |
| 39 | 94005-PWB1-900 | HOSE BARB INTAKE MANIFOLD | 1 | $4.17 USD | View product → | |
| 40 | 95002-02090 | CLIP B9 TUBE | 1 | $4.92 USD | View product → | |
| 41 | 95002-40950-08 | CLAMP D9.5 TUBE | 2 | $6.06 USD | View product → | |
| 42 | 95005-PWB1-900 | BREATH TUBE RR GEAR ASSY | 1 | $32.10 USD | View product → | |
| 43 | 95008-PWB1-900 | HOSE VENT-GEARCASE(80mm) | 1 | $37.98 USD | View product → | |
| 44 | 95009-LFA5-900 | HOSE | 1 | $0.99 USD | View product → | |
| 45 | 95701-08040-06 | BOLT FLANGE 8X40 | 11 | $9.06 USD | View product → | |
| 46 | 96100-63050-00 | BRG BALL RADIAL 6305 | 1 | $49.86 USD | View product → | |
| 47 | 96120-60080-00 | BEARING BALL 6008Z | 2 | $130.89 USD | View product → |
