F21 — Frame Body

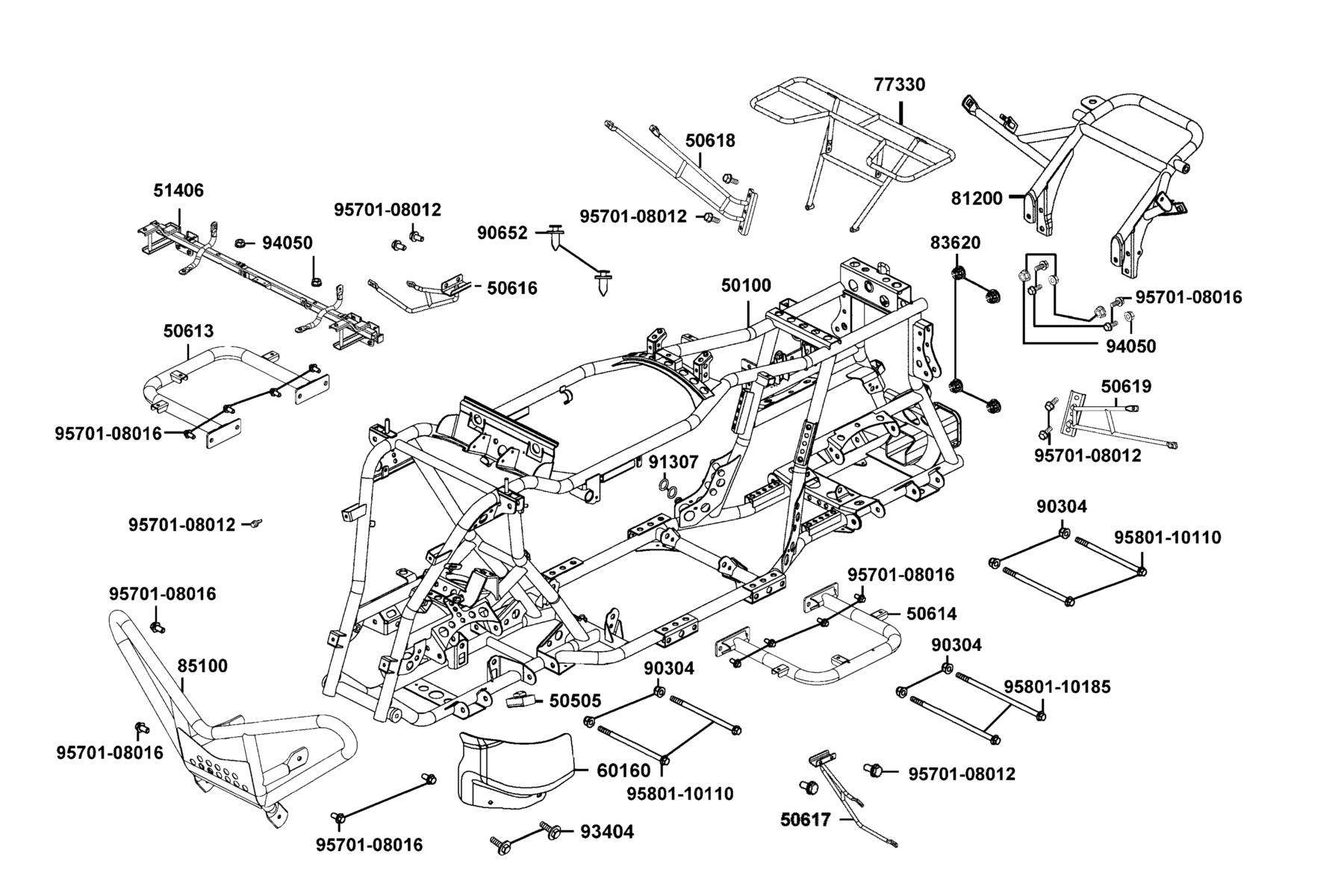

The Frame Body diagram contains 23 genuine OEM parts for the KYMCO MAXXER 450i (2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 50100-LGC7-900 | BODY COMP FRAME | 1 | $1423.20 USD | View product → | |
| 2 | 50505-KEBE-900 | STOPPER RUBBER | 1 | $4.92 USD | View product → | |
| 3 | 50613-LGN5-E00 | FOOTREST R-WELDMENT | 1 | $115.92 USD | View product → | |
| 4 | 50614-LGN5-E00 | FOOTREST L-WELDMENT | 1 | $115.92 USD | View product → | |
| 5 | 50616-LGN5-E00 | STAY R FRONT FENDER | 1 | $82.44 USD | View product → | |
| 6 | 50617-LGN5-E00 | STAY L FRONT FENDER | 1 | $82.44 USD | View product → | |
| 7 | 50618-LGN5-E00 | STAY R REAR FENDER | 1 | $33.69 USD | View product → | |
| 8 | 50619-LGN5-E00 | STAY L REAR FENDER | 1 | $91.65 USD | View product → | |
| 9 | 51406-LGC7-M04 | TUBE COMP HEADLIGHT | 1 | $207.51 USD | View product → | |
| 10 | 60160-LGC7-E01-N1R | PROTECTOR HOSE (Black) | 1 | — | Part details → | |
| 11 | 77330-LGC7-Y60-MFS | REAR CARRIER LUGGAGE | 1 | $454.05 USD | View product → | |
| 12 | 81200-LGC7-900-MFS | GRIP REAR | 1 | $237.27 USD | View product → | |
| 13 | 83620-LFA5-E00 | CAP PIPE | 4 | $28.47 USD | View product → | |
| 14 | 85100-LGC7-E60-MFS | BUMPER. FRONT | 1 | $261.27 USD | View product → | |
| 15 | 90304-GLW0-90A | NUT U FLANGE 10MM | 1 | $9.39 USD | View product → | |
| 16 | 90652-LDB5-900 | CLIP MUDGUARD | 2 | $5.31 USD | View product → | |
| 17 | 91307-PWB1-900 | O-RING 10.82X1.778 | 2 | $4.92 USD | View product → | |
| 18 | 93404-06016-06 | BOLT WASHER 6*16 | 2 | $7.89 USD | View product → | |
| 19 | 94050-08060 | NUT FLANGE 8MM | 6 | $5.31 USD | View product → | |
| 20 | 95701-08012-06 | BOLT FLANGE 8*12 | 9 | $6.24 USD | View product → | |
| 21 | 95701-08016-06 | BOLT FLANGE 8*16 | 16 | $4.53 USD | View product → | |
| 22 | 95801-10110-06 | BOLT FLANGE 10*110 | 4 | $16.38 USD | View product → | |
| 23 | 95801-10185-06 | BOLT FLANGE 10X185 | 2 | $32.76 USD | View product → |
