F01 — Head Light

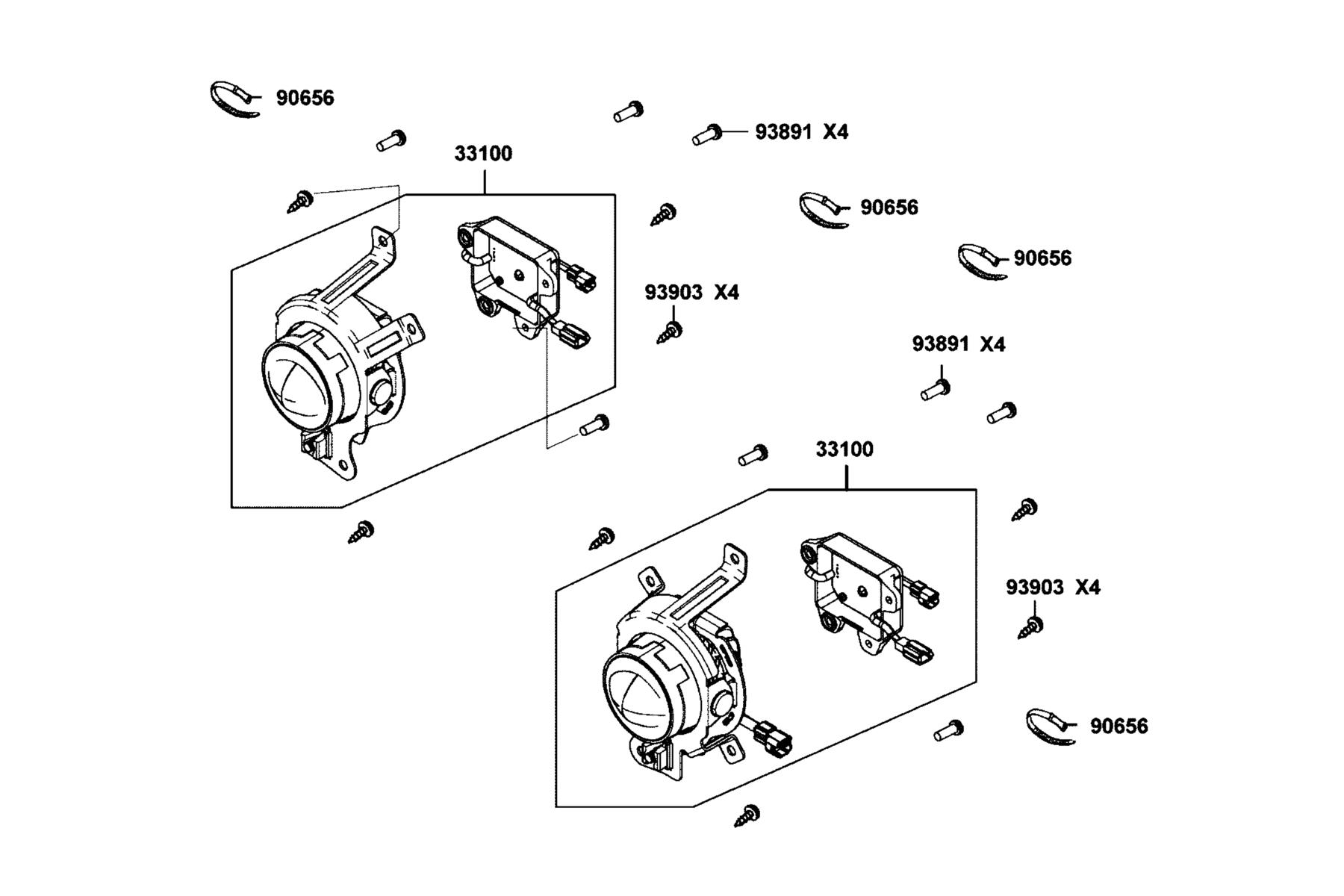

The Head Light diagram contains 6 genuine OEM parts for the KYMCO MAXXER 450i (2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33100-LGC7-M04 | LIGHT ASS'Y, HEAD | 2 | — | Part details → | |
| 2 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 4 | $3.93 USD | View product → | |
| 3 | 93404-06016-06 | BOLT WASHER 6*16 | 8 | $7.89 USD | View product → | |
| 4 | 93891-05016-06 | SCREW WASHER 5* 16 | 8 | $1.86 USD | View product → | |
| 5 | 93903-35360 | SCREW TAPPING 5*16 | 8 | $3.78 USD | View product → | |
| 6 | 94591-KFBF-900 | CLIP 2*70 | 1 | $3.78 USD | View product → |
