E02 — Cylinder Head Cover ● Cylinder Head

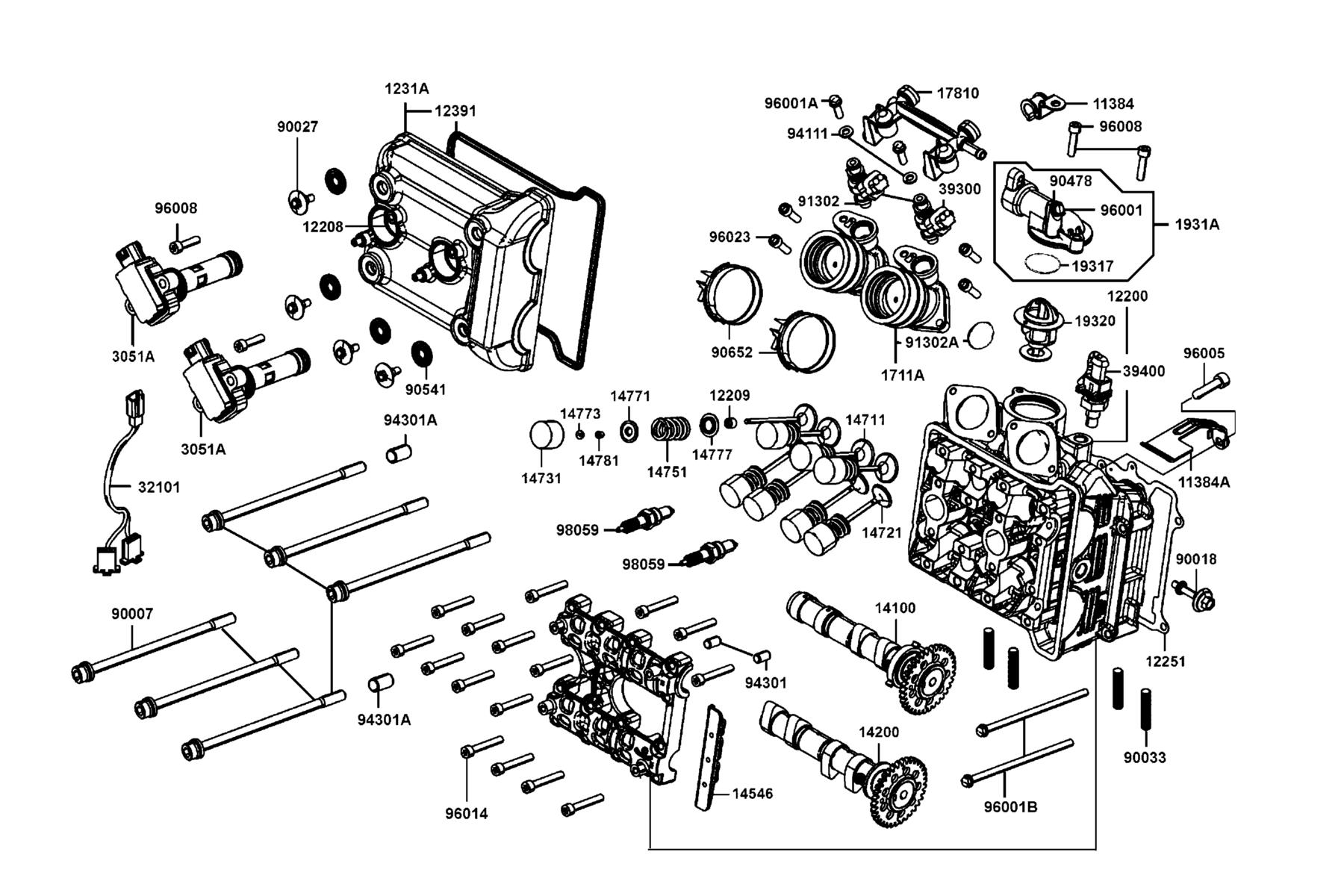

The Cylinder Head Cover ● Cylinder Head diagram contains 69 genuine OEM parts for the KYMCO AK550 ST. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11384-LEA7-E05 | CLIP WATER PIPE | 1 | $17.37 USD | View product → | |
| 2 | 11384-LGC6-E02 | CLAMPER HOSE STOPPER | 1 | $9.57 USD | View product → | |
| 3 | 12200-LGC6-305 | HEAD COMP CYLINDER | 1 | $490.64 USD | View product → | |
| 4 | 12208-LGC6-E00 | SEAL.TUBE SPARK | 2 | $3.54 USD | View product → | |
| 5 | 12209-LEA3-900 | SEAL VALVE STEM | 8 | $25.35 USD | View product → | |
| 6 | 12251-LGC6-E00 | GASKET CYLINDER HEAD | 1 | $93.30 USD | View product → | |
| 7 | 1231A-LGC6-E00 | COVER ASSY CYLN HEAD | 1 | $115.86 USD | View product → | |
| 8 | 12391-LGC6-E00 | SEAL HEAD COVER | 1 | $30.96 USD | View product → | |
| 9 | 14100-LGC6-E00 | CAMSHAFT COMP INLET | 0 | $306.33 USD | View product → | |
| 10 | 14200-LGC6-E00 | CAMSHAFT COMP EXHAUST | 1 | $73.41 USD | View product → | |
| 11 | 14546-LGC6-E00 | CHAIN GUIDE UPPER ASM | 1 | $37.02 USD | View product → | |
| 12 | 14711-LGC6-E00 | VALVE. INLET | 4 | $35.79 USD | View product → | |
| 13 | 14721-LGC6-E00 | VALVE. EXHAUST | 4 | $60.27 USD | View product → | |
| 14 | 14731-LGC6-E00 | LIFTER VALVE | 8 | $58.53 USD | View product → | |
| 15 | 14751-LGC6-E00 | SPRING VALVE | 8 | $28.17 USD | View product → | |
| 16 | 14771-LGC6-C00 | RETAINER ALVE SPRING | 8 | $5.19 USD | View product → | |
| 17 | 14773-LGC6-E00-01 | SHIM 1.50 | 1 | $15.81 USD | View product → | |
| 18 | 14773-LGC6-E00-02 | SHIM 1.55 | 1 | $15.81 USD | View product → | |
| 19 | 14773-LGC6-E00-03 | SHIM 1.575 | 1 | $15.03 USD | View product → | |
| 20 | 14773-LGC6-E00-04 | SHIM 1.60 | 1 | $15.03 USD | View product → | |
| 21 | 14773-LGC6-E00-05 | SHIM 1.625 | 1 | $15.81 USD | View product → | |
| 22 | 14773-LGC6-E00-06 | SHIM 1.65 | 1 | $15.03 USD | View product → | |
| 23 | 14773-LGC6-E00-07 | SHIM 1.675 | 1 | $15.81 USD | View product → | |
| 24 | 14773-LGC6-E00-08 | SHIM 1.70 | 1 | $10.53 USD | View product → | |
| 25 | 14773-LGC6-E00-09 | SHIM 1.725 | 1 | $15.81 USD | View product → | |
| 26 | 14773-LGC6-E00-10 | SHIM 1.75 | 1 | $15.81 USD | View product → | |
| 27 | 14773-LGC6-E00-11 | SHIM 1.775 | 1 | $15.81 USD | View product → | |
| 28 | 14773-LGC6-E00-12 | SHIM 1.80 | 1 | $15.81 USD | View product → | |
| 29 | 14773-LGC6-E00-13 | SHIM 1.825 | 1 | $15.81 USD | View product → | |
| 30 | 14773-LGC6-E00-14 | SHIM 1.85 | 1 | $15.81 USD | View product → | |
| 31 | 14773-LGC6-E00-15 | SHIM 1.875 | 1 | $15.03 USD | View product → | |
| 32 | 14773-LGC6-E00-16 | SHIM 1.90 | 1 | $15.03 USD | View product → | |
| 33 | 14773-LGC6-E00-17 | SHIM 1.925 | 1 | $15.03 USD | View product → | |
| 34 | 14773-LGC6-E00-18 | SHIM 1.95 | 1 | $15.03 USD | View product → | |
| 35 | 14773-LGC6-E00-19 | SHIM 2.0 | 1 | $15.03 USD | View product → | |
| 36 | 14777-LGC6-E00 | SEAT VALVE SPG | 8 | $8.43 USD | View product → | |
| 37 | 14781-LGC6-C00 | COTTER VALVE | 16 | $1.95 USD | View product → | |
| 38 | 1711A-AKB8-E00 | PIPE ASSY.. INLET | 1 | $72.48 USD | View product → | |
| 39 | 17810-LGC6-E00 | RAIL COMP FUEL SUPPLY | 1 | $50.97 USD | View product → | |
| 40 | 19317-LBA2-E00 | RING 48.3X2 | 1 | $9.39 USD | View product → | |
| 41 | 19319-LGC6-E00 | BREATHABLE SCREW_M6X12 | 1 | $3.54 USD | View product → | |
| 42 | 1931A-LGC6-E00 | COVER ASSY THERMOSTAT | 1 | $49.20 USD | View product → | |
| 43 | 19320-KED9-90A | THERMOSTAT | 1 | $173.04 USD | View product → | |
| 44 | 3051A-LGC6-E00 | COIL ASSY IGN | 1 | $234.00 USD | View product → | |
| 45 | 32101-LGC6-E00 | SUB HARNESS??? COIL | 1 | $41.43 USD | View product → | |
| 46 | 39300-KKE5-800 | INJECTOR UNIT FUEL | 1 | $266.64 USD | View product → | |
| 47 | 39310-KKE5-305 | RING INJECTOR SET | 2 | $136.02 USD | View product → | |
| 48 | 39400-LEA6-800 | WATER TEMP SENSOR | 1 | $109.50 USD | View product → | |
| 49 | 90007-LGC6-E00 | BOLT WASHER 9X160 | 6 | $25.95 USD | View product → | |
| 50 | 90018-KKE5-E00 | BOLT ASSY HEAD COVER | 1 | $28.74 USD | View product → | |
| 51 | 90027-PUA5-E00 | JACK SCREW M6 VALVE COVER 6*17 | 4 | $7.56 USD | View product → | |
| 52 | 90033-KGB4-C00 | BOLT STUD M8X40 (C) | 4 | $14.31 USD | View product → | |
| 53 | 90085-KKE5-E00 | BOLT SEALING 18MM | 2 | $34.23 USD | View product → | |
| 54 | 90478-7L00-001 | WASHER A 6MM | 1 | $4.92 USD | View product → | |
| 55 | 90541-PUA5-E00 | PROFILE SEALING WASHER | 4 | $10.38 USD | View product → | |
| 56 | 90652-GFY6-910 | BAND 49 AIR/C CONNECTING TUBE | 2 | $10.14 USD | View product → | |
| 57 | 90807-PRA1-E00 | PLUG DIN 906 M8*1 | 1 | $3.54 USD | View product → | |
| 58 | 91302-KKE5-800 | SEAL RING | 1 | $37.11 USD | View product → | |
| 59 | 91302-LDB2-E00 | O-RING 37*3 | 1 | $4.92 USD | View product → | |
| 60 | 94111-06800 | WASHER SPRING 6MM | 2 | $4.92 USD | View product → | |
| 61 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → | |
| 62 | 94301-12200 | DOWEL PIN 12*20 | 2 | $6.39 USD | View product → | |
| 63 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 2 | $12.12 USD | View product → | |
| 64 | 96001-06130-06 | BOLT FLANGE SH 6*130 | 2 | $6.24 USD | View product → | |
| 65 | 96005-PRA1-E00 | BOLT M6*12 | 1 | $1.95 USD | View product → | |
| 66 | 96008-PRA1-E00 | BOLT M6*25 | 1 | $3.66 USD | View product → | |
| 67 | 96014-PRA1-E00 | BOLT M6*40 | 16 | $3.66 USD | View product → | |
| 68 | 96023-PRA1-E00 | BOLT M6*20 | 4 | $1.95 USD | View product → | |
| 69 | 98059-57916-00 | SPARK PLUG (CR7E) | 2 | $38.37 USD | View product → |
