F09 — Seat

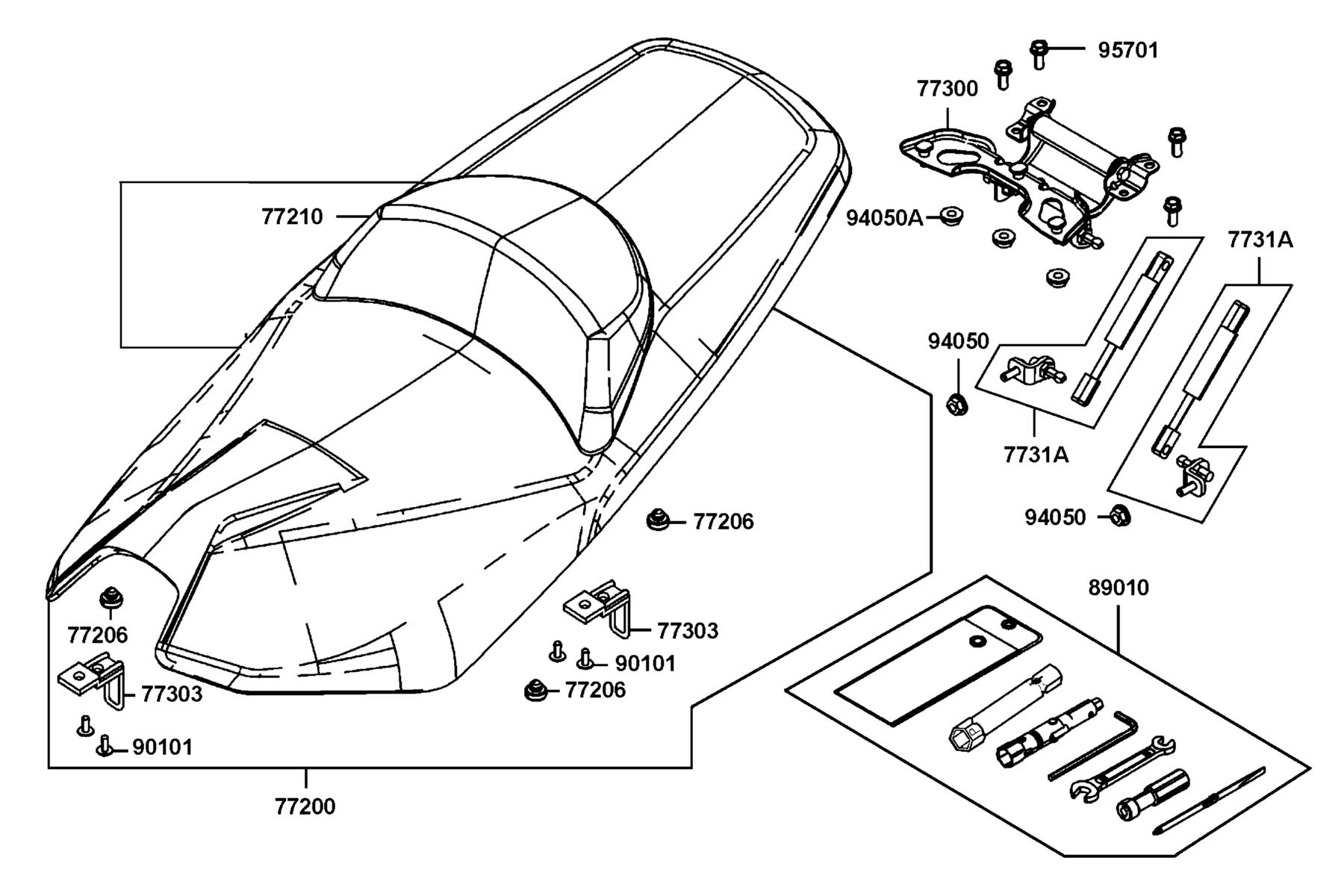

The Seat diagram contains 11 genuine OEM parts for the KYMCO AK550 ST. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 77200-AKB8-309-T01 | SEAT ASSY | 1 | $462.18 USD | View product → | |
| 2 | 77206-KGBG-900 | RUBBER SEAT CUSH | 3 | $7.53 USD | View product → | |
| 3 | 77210-AKB8-E00 | BACK SEAT ASSY | 1 | $387.39 USD | View product → | |
| 4 | 77300-AKB8-E00 | HINGE ASSY SEAT | 1 | $127.59 USD | View product → | |
| 5 | 77303-LHJ8-900 | HOOK SEAT LOCK | 2 | $9.90 USD | View product → | |
| 6 | 7731A-AKB8-E00 | STAY ASSY DAMPER | 1 | $116.70 USD | View product → | |
| 7 | 89010-LGC6-E00 | TOOL SET | 1 | $30.96 USD | View product → | |
| 8 | 90101-KGC4-E00 | SCREW SPECIAL 6*15 | 4 | $4.92 USD | View product → | |
| 9 | 94050-06060 | NUT FLANGE 6MM | 2 | $4.92 USD | View product → | |
| 10 | 94050-06080 | NUT FLANGE 6MM | 3 | $2.31 USD | View product → | |
| 11 | 95701-08035-06 | BOLT FLANGE 8*35 | 4 | $5.88 USD | View product → |
