E05 — Right Crankcase Cover●Shaft Main●Shaft Counter

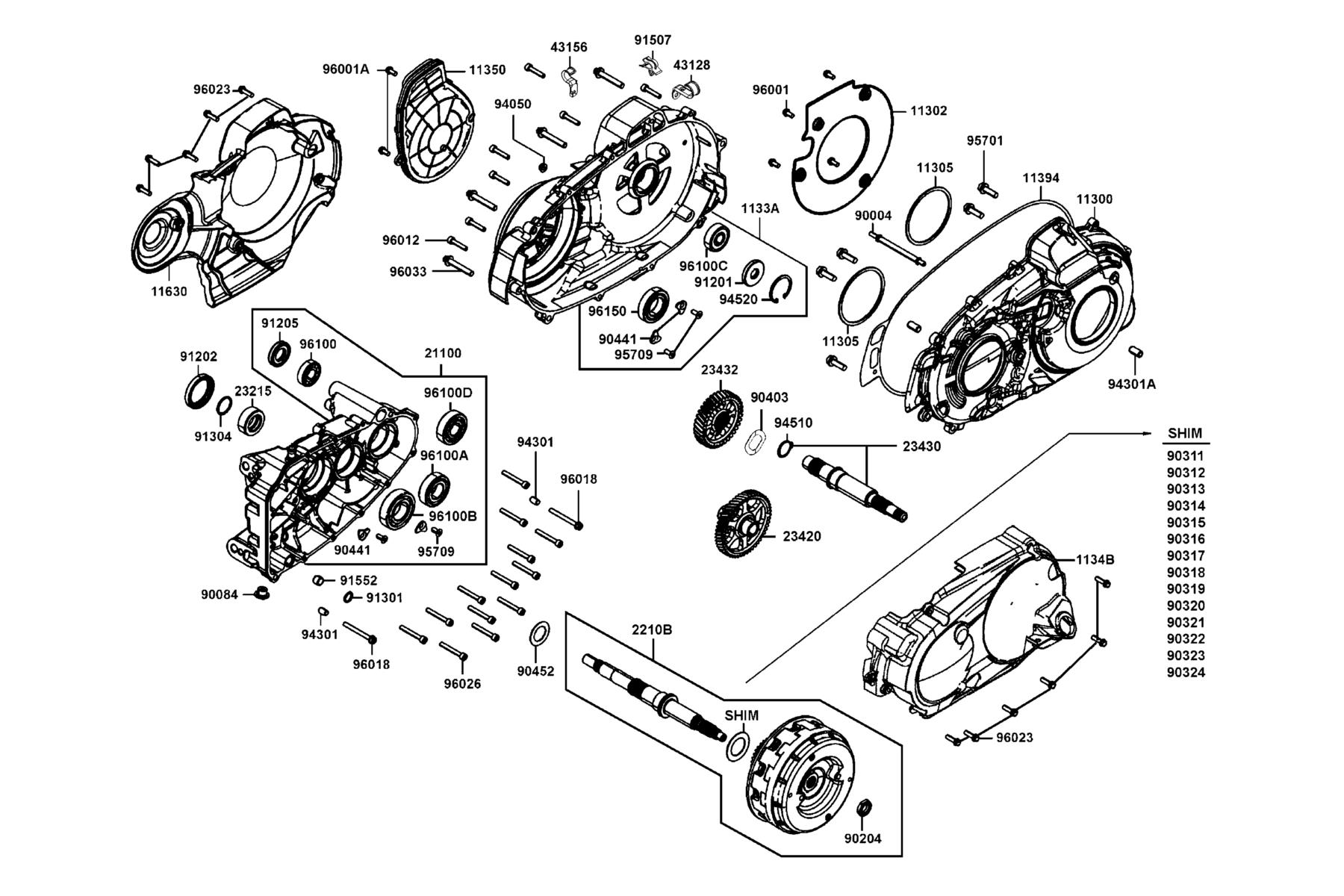

The Right Crankcase Cover●Shaft Main●Shaft Counter diagram contains 62 genuine OEM parts for the KYMCO AK550 ST. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11300-LGC6-E00 | CASE CVT | 1 | $322.38 USD | View product → | |
| 2 | 11302-LGC6-E00 | PLATE AIR INTAKE | 1 | $35.19 USD | View product → | |
| 3 | 11305-LGC6-E00 | GASKET CVT CASE | 1 | $4.89 USD | View product → | |
| 4 | 1133A-LGC6-E00 | COVER COMP CVT | 1 | $407.34 USD | View product → | |
| 5 | 1134B-LGC6-E00-N1R | COVER COMP.??? L COVER (Black) | 1 | $29.01 USD | View product → | |
| 6 | 11350-LGC6-E00 | ELEMENT COMP CVT COVER | 1 | $23.82 USD | View product → | |
| 7 | 11394-LGC6-E00 | GASKET.CVT COVER | 1 | $53.85 USD | View product → | |
| 8 | 11630-LGC6-E00-N1R | COVER COMP.??? R COVER (Black) | 1 | $26.37 USD | View product → | |
| 9 | 21100-LGC6-E00 | CASE COMP.R MISSION | 1 | $473.85 USD | View product → | |
| 10 | 2210B-LGC6-E02 | WET CLUTCH ASSY | 1 | $1016.74 USD | View product → | |
| 11 | 23215-LGC6-E00 | SPACER FIXED DRIVE | 1 | $29.49 USD | View product → | |
| 12 | 23420-LGC6-E00 | SHAFT COMP COUNTER | 1 | $287.46 USD | View product → | |
| 13 | 23430-LGC6-E00 | SHAFT COMP FINAL | 1 | $177.48 USD | View product → | |
| 14 | 23432-LGC6-E00 | GEAR FINAL | 1 | $108.06 USD | View product → | |
| 15 | 43128-AKB8-E00 | CLAMPER HOSE&CABLE | 1 | — | Part details → | |
| 16 | 43156-AKB8-E00 | CLAMPER RR HOSE | 1 | — | Part details → | |
| 17 | 90004-LGC6-E00 | BOLT SPECIAL | 1 | $12.00 USD | View product → | |
| 18 | 90204-LGC6-E00 | NUT FLANGE M16X1.0 | 1 | $14.73 USD | View product → | |
| 19 | 90311-PWB1-900 | SHIM DRIVEN BEVEL GEAR A (0.575~0.625) | 1 | $6.24 USD | View product → | |
| 20 | 90312-PWB1-900 | SHIM DRIVEN BEVEL GEAR B (0.625~0.675) | 1 | $6.24 USD | View product → | |
| 21 | 90313-PWB1-900 | SHIM DRIVEN BEVEL GEAR C (0.675~0.725) | 1 | $6.24 USD | View product → | |
| 22 | 90314-PWB1-900 | SHIM DRIVEN BEVEL GEAR D (0.725~0.775) | 1 | $6.24 USD | View product → | |
| 23 | 90315-PWB1-900 | SHIM DRIVEN BEVEL GEAR E (0.775~0.825) | 1 | $6.24 USD | View product → | |
| 24 | 90316-PWB1-900 | SHIM DRIVEN BEVEL GEAR F (0.825~0.875) | 1 | $6.24 USD | View product → | |
| 25 | 90317-PWB1-900 | SHIM DRIVEN BEVEL GEAR G (0.875~0.925) | 1 | $6.24 USD | View product → | |
| 26 | 90318-PWB1-900 | SHIM DRIVEN BEVEL GEAR H (0.925~0.975) | 1 | $6.24 USD | View product → | |
| 27 | 90319-PWB1-900 | SHIM DRIVEN BEVEL GEAR I (0.975~1.025) | 1 | $6.24 USD | View product → | |
| 28 | 90320-PWB1-900 | SHIM DRIVEN BEVEL GEAR J (1.025~1.075) | 1 | $6.24 USD | View product → | |
| 29 | 90321-PWB1-900 | SHIM DRIVEN BEVEL GEAR K (1.075~1.125) | 1 | $6.24 USD | View product → | |
| 30 | 90322-PWB1-900 | SHIM DRIVEN BEVEL GEAR L (1.125~1.175) | 1 | $12.09 USD | View product → | |
| 31 | 90323-PWB1-900 | SHIM DRIVEN BEVEL GEAR M (1.175~1.225) | 1 | $6.24 USD | View product → | |
| 32 | 90324-PWB1-900 | SHIM DRIVEN BEVEL GEAR N (1.225~1.275) | 1 | $6.24 USD | View product → | |
| 33 | 90403-LGC6-E00 | WAVE WASHER 25MM | 1 | $3.66 USD | View product → | |
| 34 | 90441-LKF5-E00 | PLATE BRG HOLD | 4 | $30.63 USD | View product → | |
| 35 | 90452-LBA7-900 | WASHER THRUST 25MM | 1 | $7.53 USD | View product → | |
| 36 | 91201-LGC6-E00 | OIL SEAL 15X42X7 | 1 | $5.61 USD | View product → | |
| 37 | 91202-LGC6-E00 | OIL SEAL 42X55X8 | 1 | $18.33 USD | View product → | |
| 38 | 91205-LGC6-E00 | OIL SEAL 22X40X7 | 1 | $13.29 USD | View product → | |
| 39 | 91301-LGC6-E00 | O RING | 1 | $3.66 USD | View product → | |
| 40 | 91304-LGC6-E00 | O RING 25.5X2.5 | 1 | $5.61 USD | View product → | |
| 41 | 91507-LEA7-E00 | CLIP | 1 | $7.17 USD | View product → | |
| 42 | 91552-LGC6-E00 | COLLAR 13MM | 1 | $6.48 USD | View product → | |
| 43 | 94050-06060 | NUT FLANGE 6MM | 1 | $4.92 USD | View product → | |
| 44 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → | |
| 45 | 94301-10200 | DOWEL PIN 10*20 | 2 | $6.39 USD | View product → | |
| 46 | 94510-25000 | CIR CLIP EX 25 | 1 | $3.78 USD | View product → | |
| 47 | 94520-42000 | CIR CLIP IN 42MM | 1 | $10.53 USD | View product → | |
| 48 | 95701-08025-06 | BOLT FLANGE 8*25 | 5 | $5.31 USD | View product → | |
| 49 | 95709-PRA1-E00 | SCREW COUNTERSUNK M6*12 | 4 | $2.31 USD | View product → | |
| 50 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 4 | $1.95 USD | View product → | |
| 51 | 96001-06014-06 | BOLT FLANGE SH 6X14 | 2 | $4.92 USD | View product → | |
| 52 | 96012-PRA1-E00 | BOLT M6*30 | 7 | $2.82 USD | View product → | |
| 53 | 96018-PRA1-E00 | BOLT M6*60 | 2 | $4.77 USD | View product → | |
| 54 | 96023-PRA1-E00 | BOLT M6*20 | 11 | $1.95 USD | View product → | |
| 55 | 96026-PRA1-E00 | BOLT M6*45 | 13 | $7.56 USD | View product → | |
| 56 | 96033-PRA1-E00 | BOLT M8*50 | 3 | $4.77 USD | View product → | |
| 57 | 96100-30203-10 | BEARING BALL RADIAL | 1 | $94.86 USD | View product → | |
| 58 | 96100-62050-00 | BEARING BALL RADIAL 6205 | 1 | $58.29 USD | View product → | |
| 59 | 96100-62060-00 | BRG RADIAL BALL 6206 | 1 | $59.16 USD | View product → | |
| 60 | 96100-63020-00 | BRG BALL RADIAL 6302 | 1 | $47.01 USD | View product → | |
| 61 | 96100-63040-00 | BRG BALL RADIAL 6304 | 1 | $53.61 USD | View product → | |
| 62 | 96150-60060-10 | BEARING BALL RADIAL 6006 | 1 | $80.70 USD | View product → |
