F24 — Canister

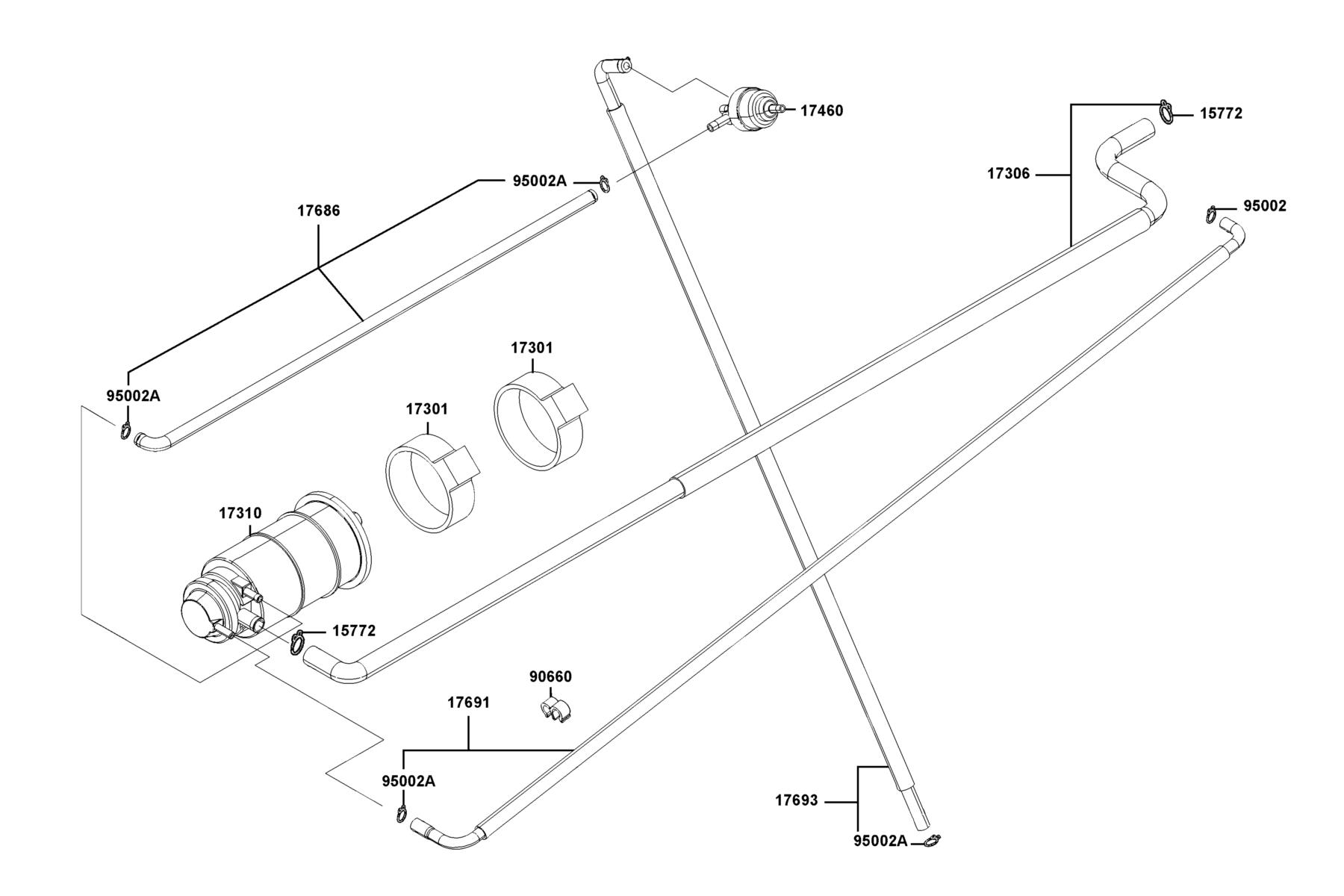

The Canister diagram contains 11 genuine OEM parts for the KYMCO AK550 ST. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 15772-5L00-013 | CLIP B14.5 TUBE | 2 | $4.92 USD | View product → | |
| 2 | 17301-LEA7-M31 | RUBBER CANISTER MOUNT | 2 | $15.87 USD | View product → | |
| 3 | 17306-AKB8-M30 | TUBE ASSY CANISTER-AIR/C | 1 | $81.69 USD | View product → | |
| 4 | 17310-LGC6-E01 | CANISTER COMP | 1 | $64.59 USD | View product → | |
| 5 | 17460-AGA6-M01 | VALVE COMP VAPOR CONTROL | 1 | $43.62 USD | View product → | |
| 6 | 17686-AKB8-M30 | TUBE FUEL FILLER/CANISTER | 1 | $26.16 USD | View product → | |
| 7 | 17691-AKB8-E00 | TUBE ASSY | 1 | $37.86 USD | View product → | |
| 8 | 17693-AKB8-M30 | TUBE ASSY | 1 | $67.29 USD | View product → | |
| 9 | 90660-PWA2-900 | CLAMP TUBE | 1 | $4.92 USD | View product → | |
| 10 | 95002-02070 | CLIP B7 TUBE | 2 | $1.86 USD | View product → | |
| 11 | 95002-02080 | CLIP B8 TUBE | 4 | $1.86 USD | View product → |
