F04 — Master Cylinder

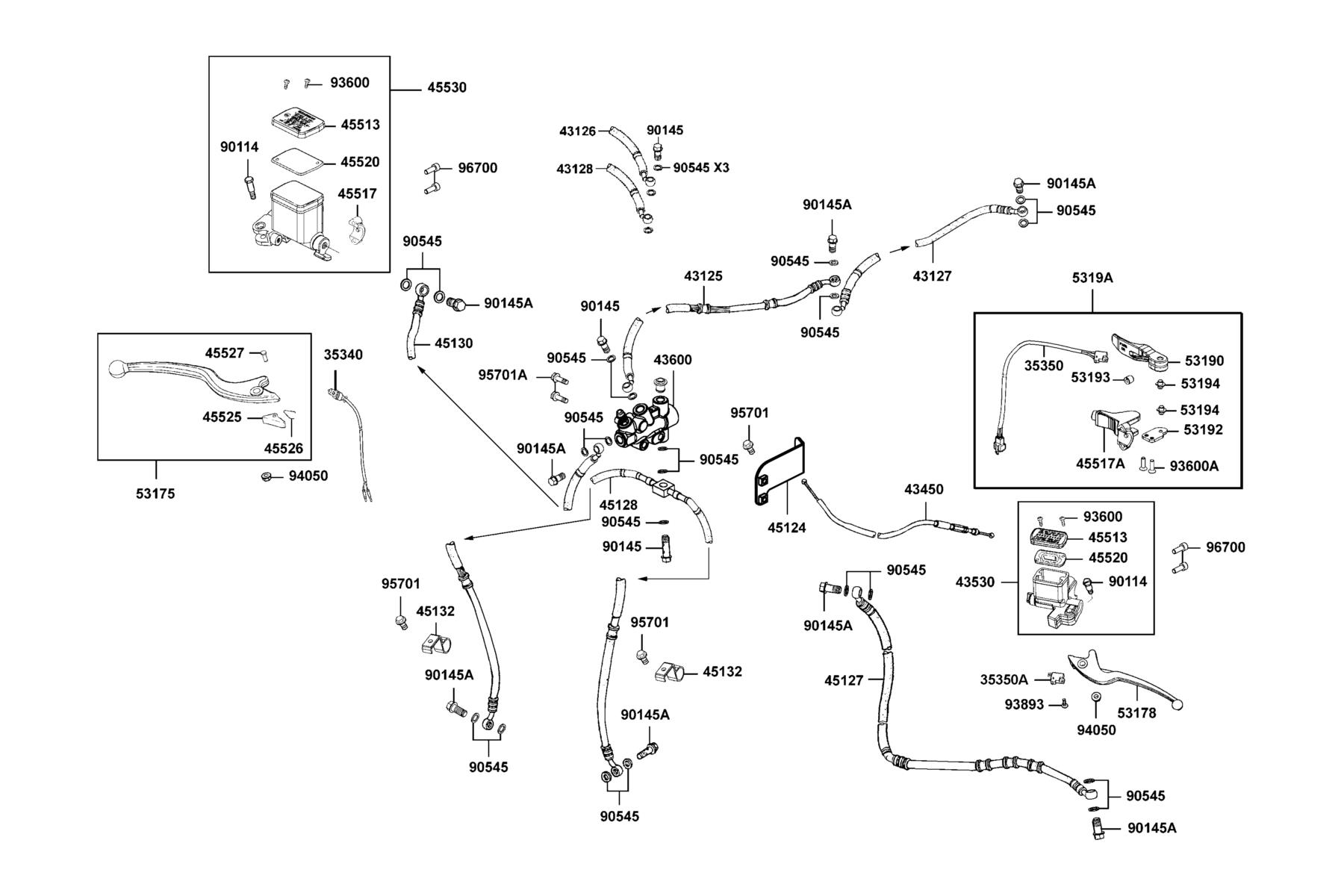

The Master Cylinder diagram contains 43 genuine OEM parts for the KYMCO MXU 550i EPS (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 35340-LDB5-900 | SW ASSY FR STOP | 1 | $44.85 USD | View product → | |
| 2 | 35350-AGA8-E00 | SW ASSY STOP | 1 | $76.41 USD | View product → | |
| 3 | 35350-KNBN-901 | SW ASSY RR STOP | 1 | $38.34 USD | View product → | |
| 4 | 43125-AAJ5-E00 | HOSE ASSY， BRAKE (FOOT TO PGV) | 1 | $194.16 USD | View product → | |
| 5 | 43126-AEC8-E00 | HOSE ASSY??? RR BRAKE R | 1 | $121.17 USD | View product → | |
| 6 | 43127-AEC8-E00 | HOSE ASSY??? RR BEAKE (FOOT TO PGV) | 1 | $96.81 USD | View product → | |
| 7 | 43128-AEC8-E00 | HOSE ASSY??? RR BRAKE L | 1 | $114.30 USD | View product → | |
| 8 | 43450-AEC8-E00 | CABLE??? PARKING BRAKE | 1 | $113.37 USD | View product → | |
| 9 | 43530-LFE9-306 | MASTER CYLINDER ASSY RR | 1 | $231.69 USD | View product → | |
| 10 | 43600-LDB5-E00 | PGV ASSY | 1 | $204.18 USD | View product → | |
| 11 | 45124-AAJ5-E00 | STAY PGV | 1 | $14.25 USD | View product → | |
| 12 | 45127-AEC8-E00 | HOSE ASSY RR BRAKE | 1 | $165.87 USD | View product → | |
| 13 | 45128-AAJ5-E00 | HOSE ASSY BRAKE - JUNCTION | 1 | $235.68 USD | View product → | |
| 14 | 45130-ALC1-E00 | HOSE ASSY??? FR BRAKE-RH | 1 | $103.02 USD | View product → | |
| 15 | 45132-LBA7-900 | CLAMPER FR BRAKE HOSE | 2 | $16.14 USD | View product → | |
| 16 | 45513-KKC4-900 | CAP M/C | 2 | $2.82 USD | View product → | |
| 17 | 45517-KFAF-910 | HOLDER M/C | 2 | $17.43 USD | View product → | |
| 18 | 45517-KFAF-910(wrong) | HOLDER M/C | 2 | $13.41 USD | View product → | |
| 19 | 45517-PRB3-900 | BRACKET PARK BRK | 1 | $55.95 USD | View product → | |
| 20 | 45520-KKC4-900 | DIAPHRAGM | 2 | $1.08 USD | View product → | |
| 21 | 45525-LBA7-900 | STOPPER | 1 | $23.40 USD | View product → | |
| 22 | 45526-LBA7-900 | SPRING | 1 | $9.39 USD | View product → | |
| 23 | 45527-LBA7-900 | PIN PARK | 1 | $9.39 USD | View product → | |
| 24 | 45530-LDB5-306 | CYLINDER SET FR | 1 | $228.45 USD | View product → | |
| 25 | 53175-LDB5-305-M2A | LEVER SET BRK | 1 | $137.31 USD | View product → | |
| 26 | 53178-KEBE-900-M2A | LEVER L STRG HNDL | 1 | $49.50 USD | View product → | |
| 27 | 53190-ALC1-E00 | LEVER | 1 | $51.33 USD | View product → | |
| 28 | 53192-PRB3-900 | STAY | 1 | $6.24 USD | View product → | |
| 29 | 53193-PRB3-900 | STOPPER | 1 | $5.58 USD | View product → | |
| 30 | 53194-PRB3-900 | PIVOT | 2 | $3.27 USD | View product → | |
| 31 | 5319A-AGA8-E00 | BRAKE ASSY PARKING | 1 | $175.62 USD | View product → | |
| 32 | 90114-1F66-007 | BOLT HANDLE LEVER | 2 | $4.92 USD | View product → | |
| 33 | 90145-LBA2-E00 | OIL BOLT 10*33 | 2 | $29.10 USD | View product → | |
| 34 | 90145-LEA3-E00 | OIL BOLT 10*22 | 1 | $22.86 USD | View product → | |
| 35 | 90545-3L00-001 | WASHER OIL BOLT | 24 | $2.91 USD | View product → | |
| 36 | 90545-3L00-001(wrong) | WASHER OIL BOLT | 24 | $3.78 USD | View product → | |
| 37 | 93600-04012-1G | SCREW FLAT 4*12 | 4 | $5.67 USD | View product → | |
| 38 | 93600-PRB3-900 | SCREW 6X12 | 2 | $1.95 USD | View product → | |
| 39 | 93893-04012-18 | SCREW WASHER 4*12 | 1 | $1.86 USD | View product → | |
| 40 | 94050-06060 | NUT FLANGE 6MM | 2 | $4.92 USD | View product → | |
| 41 | 95701-06012-06 | BOLT FLANGE 6X12 | 2 | $1.86 USD | View product → | |
| 42 | 95701-06040-06 | BOLT FLANGE 6*40 | 2 | $2.61 USD | View product → | |
| 43 | 96700-06020-06 | SOCKET BOLT 6X20 | 4 | $16.68 USD | View product → |
