F10 — Fuel Tank

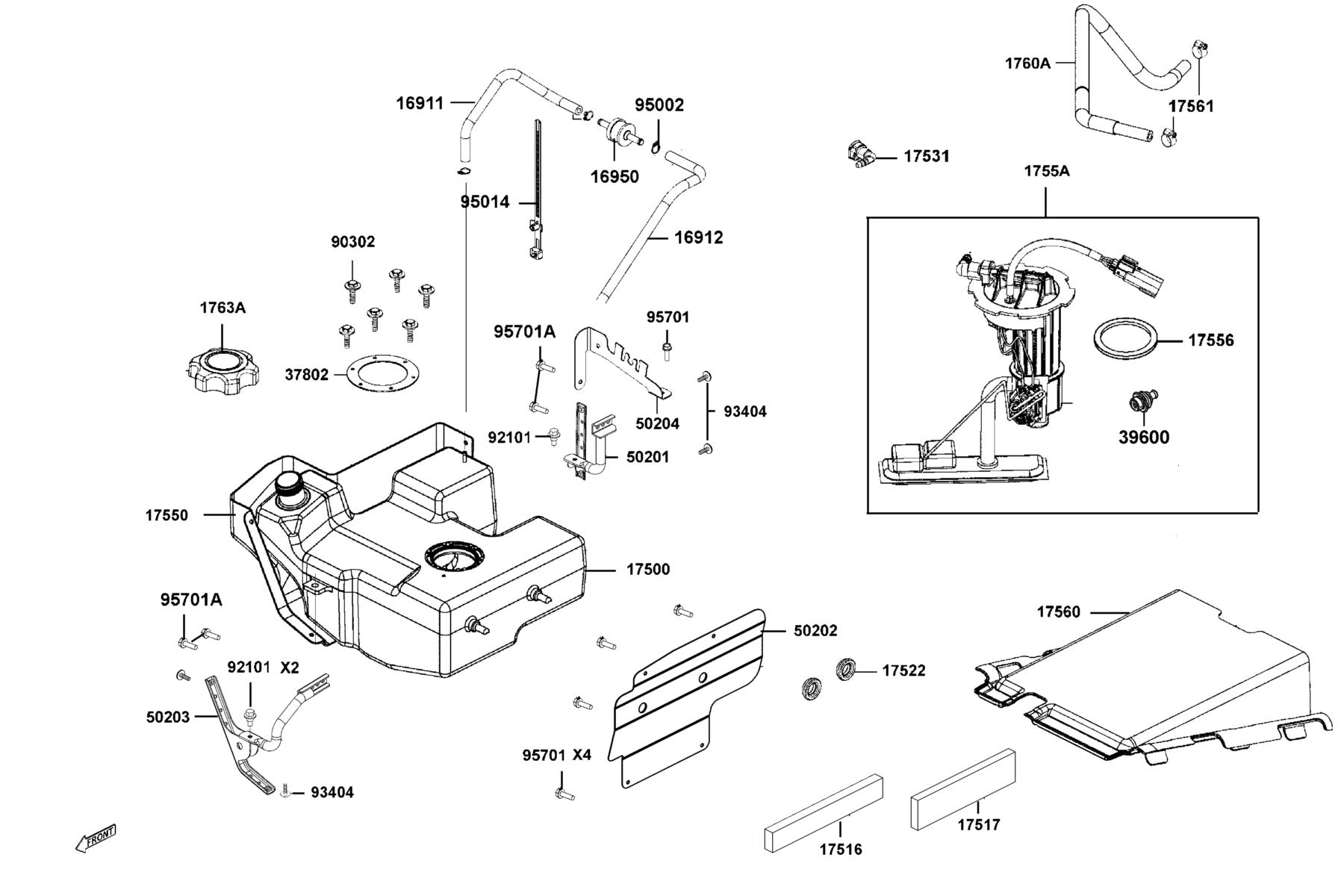

The Fuel Tank diagram contains 28 genuine OEM parts for the KYMCO MXU 550i EPS (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 16911-AGA8-M00 | HOSE ASSY BREATHER | 1 | $37.56 USD | View product → | |
| 2 | 16912-AGA8-E00 | HOSE ASSY.BREATHER | 1 | $24.33 USD | View product → | |
| 3 | 16950-PRA9-920 | VALVE CHECK | 1 | $50.10 USD | View product → | |
| 4 | 17500-AGA8-M00 | TANK, FUEL | 1 | $508.32 USD | View product → | |
| 5 | 17516-AGA8-E00 | SPONGE FUEL TANK | 1 | $36.51 USD | View product → | |
| 6 | 17517-AGA8-E00 | SPONGE FUEL TANK | 1 | $14.73 USD | View product → | |
| 7 | 17522-PWB1-900 | GROMMET FUEL TANK | 2 | $5.31 USD | View product → | |
| 8 | 17531-LGC7-E01 | CONNECTOR FUEL PUMP-90 DEGREE | 1 | $52.50 USD | View product → | |
| 9 | 17550-AGA8-M00-N1R | PROTECTOR COVER FUEL TANK (Black) | 1 | $65.58 USD | View product → | |
| 10 | 17556-ZXA6-M01 | PACKING PUMP | 1 | $54.66 USD | View product → | |
| 11 | 1755A-AGA8-M01 | FUEL PUMP ASSEMBLY | 1 | $600.58 USD | View product → | |
| 12 | 17560-AGA8-E00-N1R | SHIELD.HEAT (Black) | 1 | $61.77 USD | View product → | |
| 13 | 17561-LGE5-E00 | CLIP 13.5 | 2 | $17.37 USD | View product → | |
| 14 | 1760A-AGA7-M01 | TUBE ASSY FUEL TANK | 1 | $141.27 USD | View product → | |
| 15 | 1763A-AGA8-E00 | CAP ASSY???FUEL TANK | 1 | $32.97 USD | View product → | |
| 16 | 37802-LGC3-E00 | MOUNT FUEL PUMP | 1 | $25.65 USD | View product → | |
| 17 | 39600-ACH6-900 | REGULATOR FUEL | 1 | $72.54 USD | View product → | |
| 18 | 50201-AGA8-E00 | RR PIPE FUEL TANK | 1 | $44.04 USD | View product → | |
| 19 | 50202-AGA8-E00 | PLATE. FUEL TANK | 1 | $53.64 USD | View product → | |
| 20 | 50203-AGA8-E00 | FR. PIPE. FUEL TANK | 1 | $51.84 USD | View product → | |
| 21 | 50204-AGA8-E00 | BRKT CANISTER | 1 | $4.26 USD | View product → | |
| 22 | 90302-GFY6-940 | BOLT-WASH 5*16 | 6 | $1.86 USD | View product → | |
| 23 | 92101-PWB1-900 | SCREW FUEL TANK | 2 | $15.45 USD | View product → | |
| 24 | 93404-06016-06 | BOLT WASHER 6*16 | 4 | $7.89 USD | View product → | |
| 25 | 95002-02100 | CLIP B15 TUBE | 3 | $4.92 USD | View product → | |
| 26 | 95014-PRB3-900 | STRAP CABLE | 1 | $9.51 USD | View product → | |
| 27 | 95701-06016-06 | BOLT FLANGE 6X16 | 5 | $1.65 USD | View product → | |
| 28 | 95701-08016-06 | BOLT FLANGE 8*16 | 4 | $4.53 USD | View product → |
