F29 — Aicv

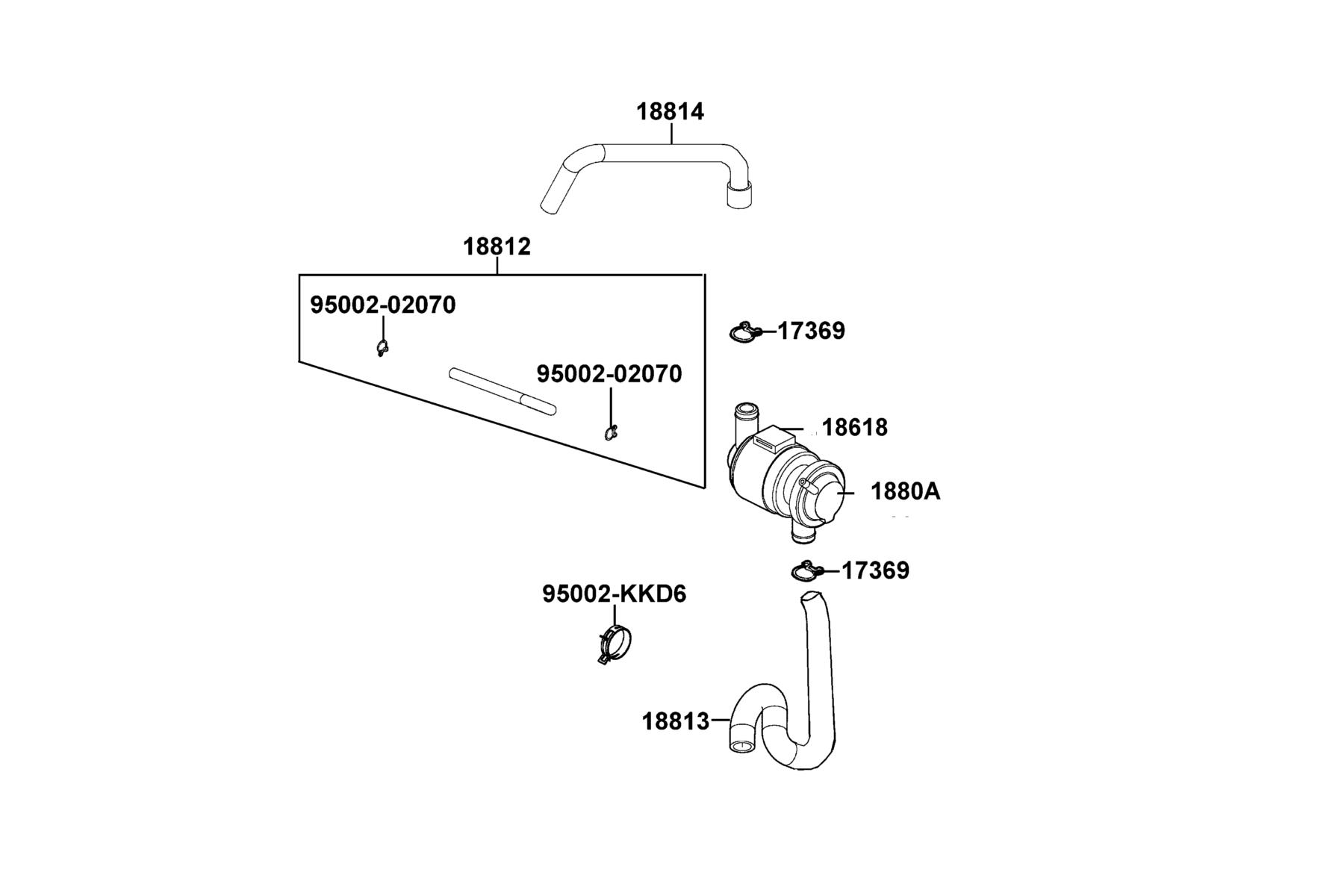

The Aicv diagram contains 8 genuine OEM parts for the KYMCO MXU 550i EPS (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17369-KDB4-671 | CLIP BREATHER TUBE | 2 | $10.14 USD | View product → | |
| 2 | 18618-LLF5-90A | RUBBER AICV MOUNT | 1 | $6.78 USD | View product → | |
| 3 | 1880A-LBA2-E0A | AI/C-AICV ASSY | 1 | $95.61 USD | View product → | |
| 4 | 18812-LDB5-E00 | TUBE ASSY VACUUM | 1 | $42.84 USD | View product → | |
| 5 | 18813-LDB5-E00 | DUCT AICV-REED VALVE | 1 | $41.73 USD | View product → | |
| 6 | 18814-LDB5-E00 | DUCT AIR-AICV | 1 | $41.73 USD | View product → | |
| 7 | 95002-02070 | CLIP B7 TUBE | 2 | $1.86 USD | View product → | |
| 8 | 95002-KKD6-E05 | CLAMP D18 TUBE | 1 | $17.28 USD | View product → |
