F12 — Fender Rear

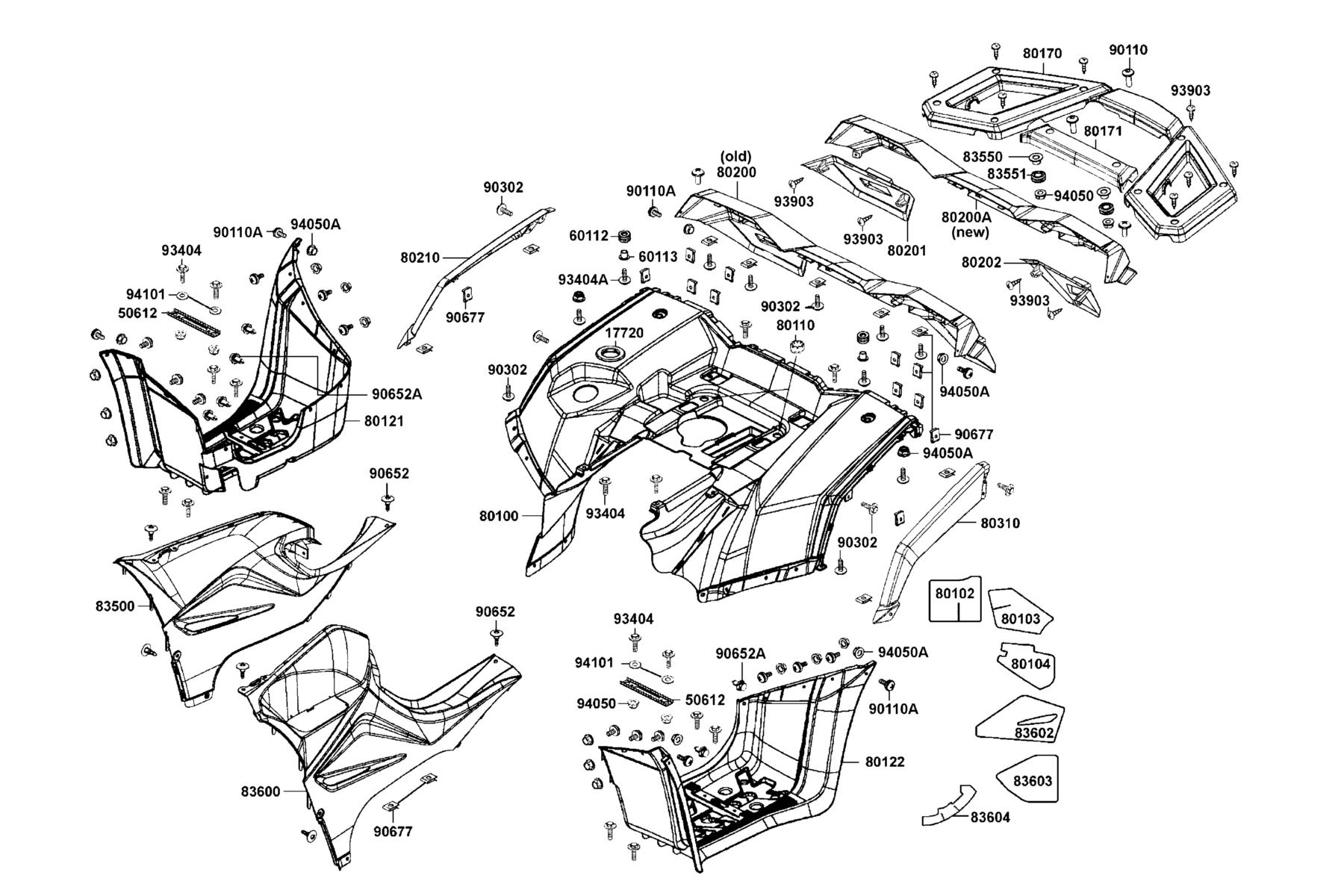

The Fender Rear diagram contains 38 genuine OEM parts for the KYMCO MXU 550i EPS (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17720-LBA7-900 | TRAY TANK COVER | 1 | $17.07 USD | View product → | |
| 2 | 50612-LDB5-E00 | RNFCT FLOOR | 2 | $25.56 USD | View product → | |
| 3 | 60112-PWB1-900 | GROMMET | 2 | $4.29 USD | View product → | |
| 4 | 60113-PWB1-900 | SPACER STELL | 2 | $12.48 USD | View product → | |
| 5 | 80100-AGA8-600-VEP | FENDER REAR | 1 | $465.27 USD | View product → | |
| 6 | 80102-AGA8-E00 | SHIELD A.LH | 1 | $22.38 USD | View product → | |
| 7 | 80103-AGA8-E00 | SHIELD B.LH | 1 | $27.90 USD | View product → | |
| 8 | 80104-AGA8-E00 | SHIELD C.LH | 1 | $31.95 USD | View product → | |
| 9 | 80110-LBA7-900 | RUBBER REAR FENDER | 2 | $3.66 USD | View product → | |
| 10 | 80121-ALC1-E00-N1R | MUDGUARD R FLOOR (Black) | 1 | $109.95 USD | View product → | |
| 11 | 80122-ALC1-E00-N1R | MUDGUARD L FLOOR (Black) | 1 | $109.95 USD | View product → | |
| 12 | 80170-AGA8-E01-N1R | PANEL.REAR RACK (Black) | 1 | $118.95 USD | View product → | |
| 13 | 80171-AGA8-E00-N1R | COVER,RR PANEL FR (Black) | 1 | $35.55 USD | View product → | |
| 14 | 80200-AGA8-E00-N1R | MUDGUARD REAR (Black) | 1 | $74.34 USD | View product → | |
| 15 | 80200-AGA8-E01-N1R | MUDGUARD REAR (Black) | 1 | $71.55 USD | View product → | |
| 16 | 80201-AGA8-E00-N1R | MUDGUARD REAR END R (Black) | 1 | — | Part details → | |
| 17 | 80202-AGA8-E00-N1R | MUDGUARD REAR END L (Black) | 1 | — | Part details → | |
| 18 | 80210-AGA8-E00-N1R | REAR MUDGUARD.RH SIDE (Black) | 1 | $25.68 USD | View product → | |
| 19 | 80310-AGA8-E00-N1R | REAR MUDGUARD.LH SIDE (Black) | 1 | $23.85 USD | View product → | |
| 20 | 83500-AGA8-E00-N1R | PANEL RH SIDE (Black) | 1 | $117.21 USD | View product → | |
| 21 | 83550-KEC8-900 | COLLAR | 2 | $10.35 USD | View product → | |
| 22 | 83551-KEC8-900 | GROMMET COVER | 2 | $6.09 USD | View product → | |
| 23 | 83600-AGA8-E00-N1R | PANEL.LH SIDE ( BLACK ) (Black) | 1 | $157.20 USD | View product → | |
| 24 | 83602-AGA8-E00 | SHIELD E.LH | 1 | $34.35 USD | View product → | |
| 25 | 83603-AGA8-E00 | SHIELD F LH | 1 | $13.56 USD | View product → | |
| 26 | 83604-AGA8-E00 | SHIELD G LH | 1 | — | Part details → | |
| 27 | 90110-KED9-900 | SCREW PAN 6*18 | 2 | $5.34 USD | View product → | |
| 28 | 90110-PWB1-900 | SCREW SPECIAL 6X20 | 20 | $7.17 USD | View product → | |
| 29 | 90302-PWA1-900 | BOLT-WASH 5*16 | 13 | $4.92 USD | View product → | |
| 30 | 90652-LCA4-E00 | CLIP MUDGUARD | 6 | $4.92 USD | View product → | |
| 31 | 90652-LDB5-900 | CLIP MUDGUARD | 6 | $5.31 USD | View product → | |
| 32 | 90677-GAR1-004 | NUT CLIP 5MM | 23 | $3.00 USD | View product → | |
| 33 | 93404-06016-06 | BOLT WASHER 6*16 | 16 | $7.89 USD | View product → | |
| 34 | 93404-06025-06 | BOLT WASHER 6*25 | 2 | $4.17 USD | View product → | |
| 35 | 93903-35360 | SCREW TAPPING 5*16 | 8 | $3.78 USD | View product → | |
| 36 | 94050-06080 | NUT FLANGE 6MM | 6 | $2.31 USD | View product → | |
| 37 | 94050-LDE9-E00 | NUT LOCK | 20 | $2.61 USD | View product → | |
| 38 | 94101-06800 | WASHER PLAIN 6MM | 4 | $4.92 USD | View product → |
