E07 — Clutch Assy Primary

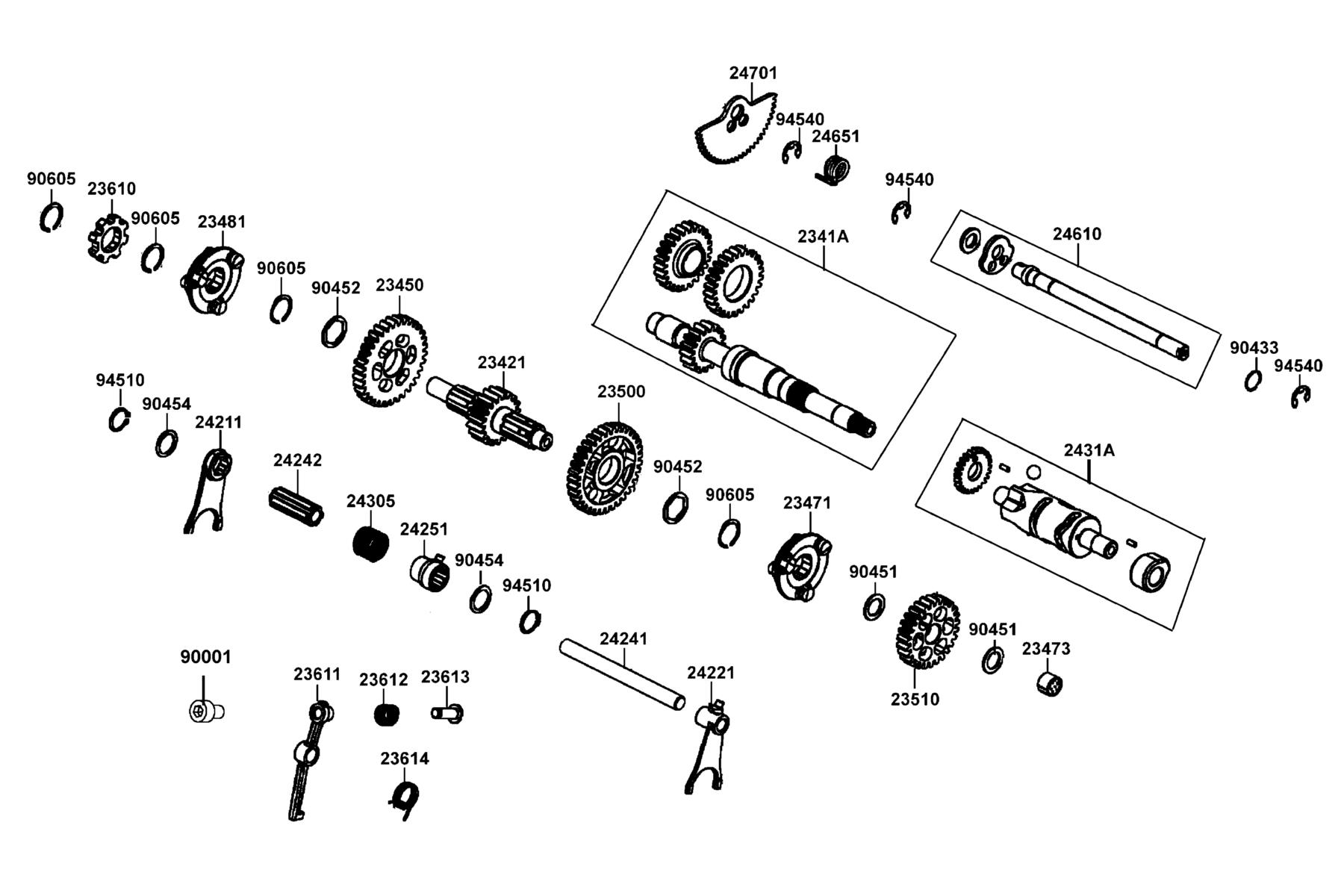

The Clutch Assy Primary diagram contains 30 genuine OEM parts for the KYMCO MXU 550i EPS (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 2341A-LDB5-900 | SHAFT ASSY DRIVE | 1 | $345.39 USD | View product → | |
| 2 | 23421-LDB5-E00 | SHAFT COUNTER 19T | 1 | $117.69 USD | View product → | |
| 3 | 23450-ZVA6-M00 | GEAR COMP BACKWARD 2ND DRIVEN 34T | 1 | $198.72 USD | View product → | |
| 4 | 23471-LDB5-E00 | SHIFT FORWARD & LOWER | 1 | $96.69 USD | View product → | |
| 5 | 23473-LDB5-E00 | COLLAR 20X17X14 | 1 | $23.40 USD | View product → | |
| 6 | 23481-LDB5-E00 | SHIFT BACKWARD | 1 | $133.77 USD | View product → | |
| 7 | 23500-LDB5-E00 | GEAR COMP LOWER DRIVEN 35T | 1 | $139.29 USD | View product → | |
| 8 | 23510-LDB5-900 | GEAR FORWARD DRIVEN 27T | 1 | $148.68 USD | View product → | |
| 9 | 23610-LDB5-E00 | STOPPER PARK | 1 | $44.85 USD | View product → | |
| 10 | 23611-LDB5-E00 | ARM PARK | 1 | $19.35 USD | View product → | |
| 11 | 23612-LDB5-E00 | SPRING A PARK | 1 | $13.95 USD | View product → | |
| 12 | 23613-LDB5-E00 | GUIDE PARK | 1 | $16.14 USD | View product → | |
| 13 | 23614-LDB5-E00 | SPRING B PARK | 1 | $4.53 USD | View product → | |
| 14 | 24211-LDB5-E00 | FORK RIGHT GEAR SHIFT | 1 | $111.48 USD | View product → | |
| 15 | 24221-LDB5-E00 | FORK LEFT GEAR SHIFT | 1 | $166.83 USD | View product → | |
| 16 | 24241-LDB5-E00 | SHAFT GEAR SHIFT FORK | 1 | $27.12 USD | View product → | |
| 17 | 24242-LDB5-E00 | COLLAR RIGHT FORK | 1 | $74.22 USD | View product → | |
| 18 | 24251-LDB5-E00 | GUIDE RIGHT FORK | 1 | $62.61 USD | View product → | |
| 19 | 24305-LDB5-E00 | SPRING RIGHT FORK | 1 | $16.14 USD | View product → | |
| 20 | 2431A-LDB5-E00 | DRUM ASSY GEAR SHIFT | 1 | $180.12 USD | View product → | |
| 21 | 24610-LDB5-E00 | SPINDLE COMP DRUM SHIFT | 1 | $95.61 USD | View product → | |
| 22 | 24651-LDB5-E00 | SPRING GEAR SHIFT RETURN | 1 | $16.38 USD | View product → | |
| 23 | 24701-LDB5-E00 | GEAR CHANGE HNDL | 1 | $56.82 USD | View product → | |
| 24 | 90001-GFY6-901 | SOCKET BOLT 6*10 | 1 | $4.53 USD | View product → | |
| 25 | 90451-LDB5-E00 | WASHER THRUST 17MM | 2 | $4.53 USD | View product → | |
| 26 | 90452-KED9-900 | WASHER 25*31*1.5 | 2 | $5.67 USD | View product → | |
| 27 | 90454-1G07-001 | WASHER THRUST 20MM B | 2 | $2.61 USD | View product → | |
| 28 | 90605-KED9-900 | SET RING 28MM | 4 | $4.53 USD | View product → | |
| 29 | 94510-20000 | CIR CLIP EX 20 | 2 | $6.39 USD | View product → | |
| 30 | 94540-12028 | E RING 12 | 3 | $4.53 USD | View product → |
