F07 — Front Wheel

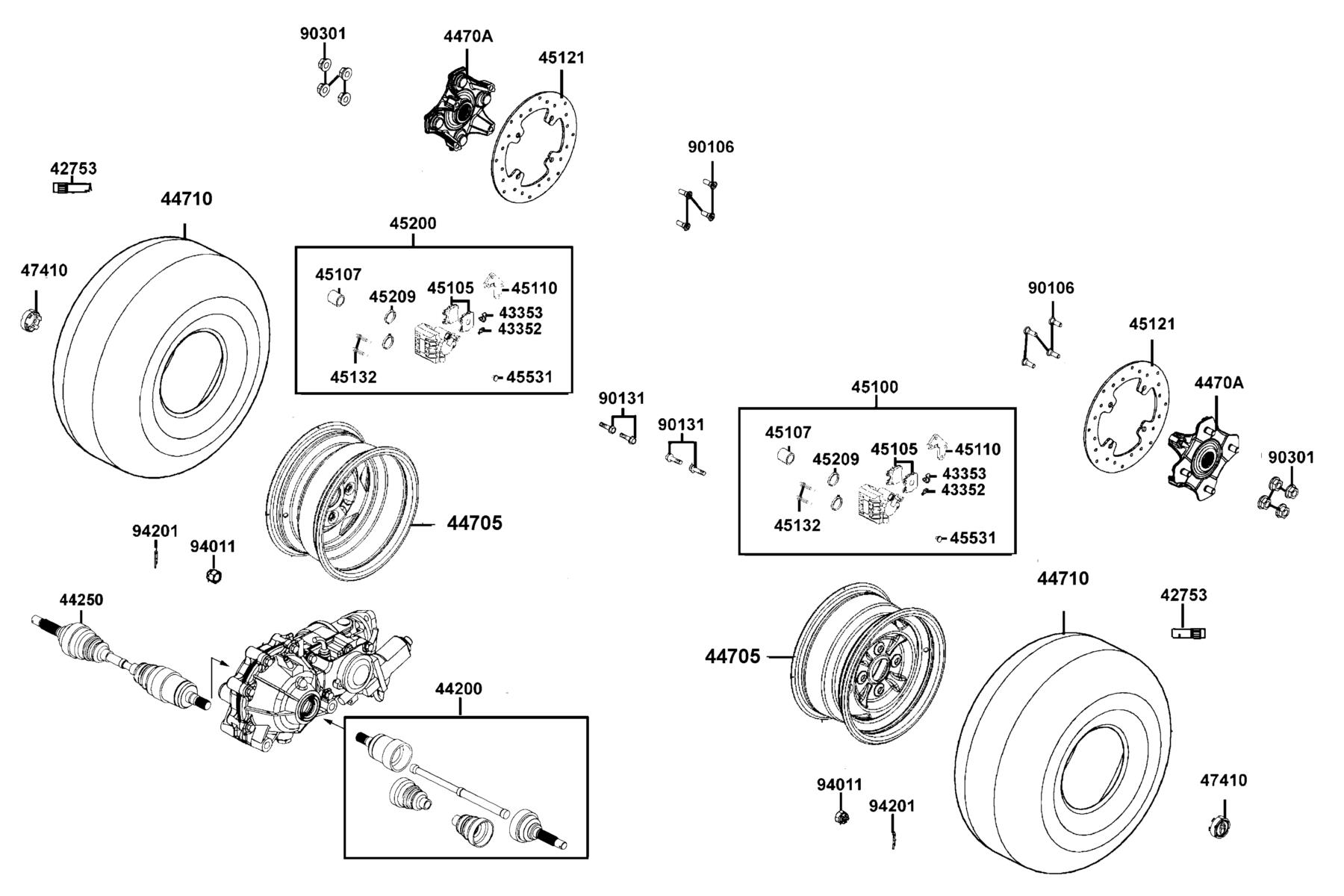

The Front Wheel diagram contains 24 genuine OEM parts for the KYMCO MXU 550i EPS (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → | |
| 2 | 43352-KKD6-E90 | SCREW BLEEDER | 2 | $12.45 USD | View product → | |
| 3 | 43353-4A61-77A | CAP BLEEDER | 2 | $5.67 USD | View product → | |
| 4 | 44200-AGA8-E00 | HALF SHAFT FRONT-RH | 1 | $383.01 USD | View product → | |
| 5 | 44250-AGA8-E00 | HALF SHAFT FRONT-LH | 1 | $557.55 USD | View product → | |
| 6 | 44705-LFE9-E00-MAS | RIM COMP FR WHEEL | 2 | $292.83 USD | View product → | |
| 7 | 4470A-LFA5-E01 | HUB ASSEMBLY | 2 | $208.53 USD | View product → | |
| 8 | 44710-LKM5-90A | TIRE ASSY FR AT25X8-12 6PR | 1 | $411.76 USD | View product → | |
| 9 | 44710-LKM5-90B | TIRE ASSY FR AT25X8-12 | 1 | $486.72 USD | View product → | |
| 10 | 45100-LFE9-E00-NJA | CALIPER ASSY FR BRK-RH (Silver) | 1 | $281.76 USD | View product → | |
| 11 | 45105-LFE9-305 | PAD SET | 2 | $137.88 USD | View product → | |
| 12 | 45107-LFE9-E00 | PISTON C/P (??32.03MM) | 2 | $47.31 USD | View product → | |
| 13 | 45110-LFE9-305 | BRACKET | 2 | $122.88 USD | View product → | |
| 14 | 45121-PWB1-900 | DISK BRAKE | 2 | $113.91 USD | View product → | |
| 15 | 45132-LDH1-E00 | BOOT | 4 | $23.40 USD | View product → | |
| 16 | 45200-LFE9-E00-NJA | CALIPER ASSY FR BRK-LH (Silver) | 1 | $281.76 USD | View product → | |
| 17 | 45209-LFE9-E00 | SEAL PISTON | 4 | $32.46 USD | View product → | |
| 18 | 45531-GAR1-951 | PLUG | 2 | $7.17 USD | View product → | |
| 19 | 47410-LDB5-E00 | CAP WHEEL SHAFT | 2 | $15.06 USD | View product → | |
| 20 | 90106-PWB1-900 | BOLT SHOULDER | 8 | $18.24 USD | View product → | |
| 21 | 90131-PRB3-900 | BOLT FLANGE 8X20 | 4 | $22.50 USD | View product → | |
| 22 | 90301-LDB5-E00 | NUT WHEEL | 8 | $18.24 USD | View product → | |
| 23 | 94011-PWB1-900 | NUT CASTLE FLANGE M22x1.5 | 2 | $52.95 USD | View product → | |
| 24 | 94201-30400 | PIN SPLIT 3*40 | 2 | $10.14 USD | View product → |
