F14 — Exhaust Muffler

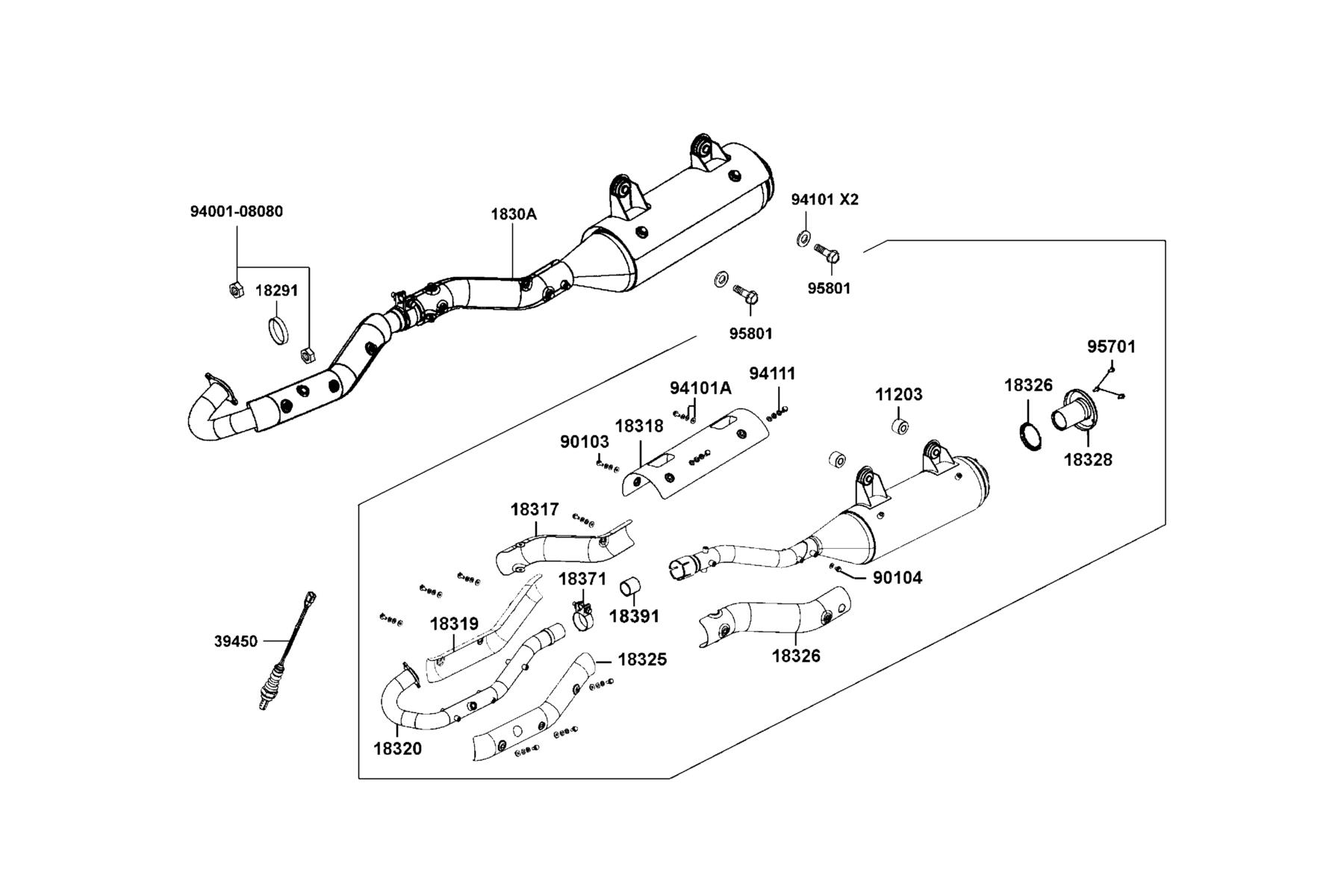

The Exhaust Muffler diagram contains 22 genuine OEM parts for the KYMCO MXU 550i EPS (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11203-LDB5-E00 | BUSH MUFFLER STAY | 2 | $34.92 USD | View product → | |
| 2 | 18291-BBC2-E00 | GASKET EXH PIPE | 1 | $10.71 USD | View product → | |
| 3 | 1830A-AGA7-M00 | MUFFLER ASSY EXH | 1 | $722.06 USD | View product → | |
| 4 | 18317-AGA7-E00 | PROTECTOR A COMP. MUFFLER | 1 | $59.13 USD | View product → | |
| 5 | 18318-ALC1-E00 | PROTECTOR MUFFLER | 1 | $116.13 USD | View product → | |
| 6 | 18319-AGA7-E00 | PROTECTOR C，COMP. MUFFLER | 1 | $156.06 USD | View product → | |
| 7 | 18320-AGA7-E00 | PIPE EXHAUST | 1 | $208.62 USD | View product → | |
| 8 | 18325-AEF2-E00 | PROTECTOR EXH. PIPE | 1 | $46.83 USD | View product → | |
| 9 | 18326-AGA7-E00 | PROTECTOR D，COMP. MUFFLER | 1 | $47.61 USD | View product → | |
| 10 | 18326-LDB5-E00 | GASKET | 1 | $36.78 USD | View product → | |
| 11 | 18328-LDB5-E00 | SPARK ARRESTOR | 1 | $127.59 USD | View product → | |
| 12 | 18371-LBA2-E00 | BAND MUFFLER | 1 | $69.90 USD | View product → | |
| 13 | 18391-LBA2-E00 | GASKET | 1 | $105.99 USD | View product → | |
| 14 | 39450-ZVA6-M00 | O2 SENSOR | 1 | $322.38 USD | View product → | |
| 15 | 90103-LDB5-E00 | BOLT. WASHER 6*12 | 15 | $43.41 USD | View product → | |
| 16 | 90104-LDB5-E00 | BOLT. WASHER 6*8 | 1 | $42.48 USD | View product → | |
| 17 | 94001-08080-0S | NUT HEX 8MM | 2 | $1.86 USD | View product → | |
| 18 | 94101-LBA2-E00 | WASHER PLATE 10.5*38*3.0 | 2 | $5.67 USD | View product → | |
| 19 | 94101-LDB5-E00 | WASHER PLAIN 6MM | 30 | $32.10 USD | View product → | |
| 20 | 94111-06800 | WASHER SPRING 6MM | 15 | $4.92 USD | View product → | |
| 21 | 95701-LGD8-900 | BOLT TORQUE 6*12 | 3 | $7.26 USD | View product → | |
| 22 | 95801-10040-06 | BOLT FLANGE 10X40 | 2 | $21.60 USD | View product → |
