F16 — Gear Assy Rr Final

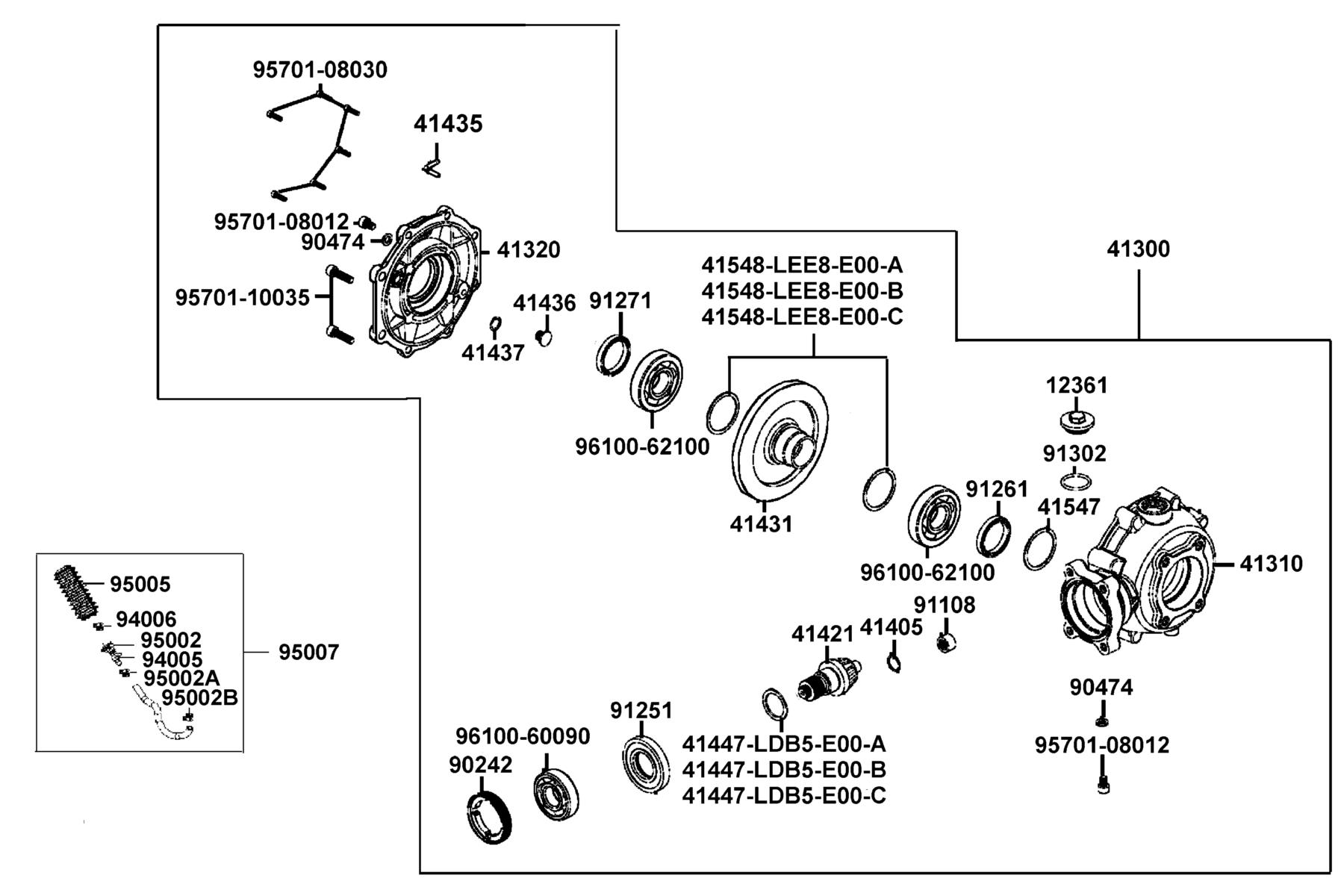

The Gear Assy Rr Final diagram contains 36 genuine OEM parts for the KYMCO MXU 550i EPS (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12361-GFY6-901 | HOLE CAP TAPPET ADJUSTING | 1 | $11.70 USD | View product → | |
| 2 | 41300-AGA8-E00 | GEAR ASSY RR FINAL | 1 | $693.26 USD | View product → | |
| 3 | 41310-AGB8-E01 | L SIDE CASE RR FINAL | 1 | $413.91 USD | View product → | |
| 4 | 41320-LFE9-E00 | R SIDE CASE RR FINAL | 1 | $186.12 USD | View product → | |
| 5 | 41405-LEE8-E00 | RING STOPPER | 1 | $17.82 USD | View product → | |
| 6 | 41421-LEE8-E00 | GEAR PINION | 1 | $179.76 USD | View product → | |
| 7 | 41431-LEE8-E00 | GEAR RING | 1 | $320.31 USD | View product → | |
| 8 | 41435-LCD9-E00 | JOINT BREATHER | 1 | $13.50 USD | View product → | |
| 9 | 41436-LCD9-E00 | PIN RING GEAR STOPPER | 1 | $17.13 USD | View product → | |
| 10 | 41437-LCD9-E00 | SHIM STOPPER PIN | 1 | $9.39 USD | View product → | |
| 11 | 41447-LDB5-E00-A | SHIM PINION GEAR A (2.035~2.065) | 1 | $16.38 USD | View product → | |
| 12 | 41447-LDB5-E00-B | SHIM PINION GEAR B (1.985~2.015) | 1 | $16.38 USD | View product → | |
| 13 | 41447-LDB5-E00-C | SHIM PINION GEAR C (1.935~1.965) | 1 | $16.38 USD | View product → | |
| 14 | 41547-LEE8-E00 | C-RING-R90 | 1 | $32.76 USD | View product → | |
| 15 | 41548-LEE8-E00-A | SHIM RING GEAR (1.435~1.465) | 2 | $12.39 USD | View product → | |
| 16 | 41548-LEE8-E00-B | SHIM RING GEAR (1.485~1.515) | 2 | $12.39 USD | View product → | |
| 17 | 41548-LEE8-E00-C | SHIM RING GEAR (1.535~1.565) | 2 | $12.39 USD | View product → | |
| 18 | 90242-LDB5-E00 | NUT LOCK 74MM | 1 | $33.00 USD | View product → | |
| 19 | 90474-3C33-001 | WASHER 8MM | 2 | $2.85 USD | View product → | |
| 20 | 91108-LEE8-E00 | BRG NEEDLE 20*22*28 (HK2220) | 1 | $13.80 USD | View product → | |
| 21 | 91251-LEE8-E00 | OIL SEAL 38.5*80*10 | 1 | $119.85 USD | View product → | |
| 22 | 91261-LEE8-E00 | OIL SEAL 48*92*10 | 1 | $60.30 USD | View product → | |
| 23 | 91271-LEE8-E00 | OIL SEAL 48*68*10 | 1 | $102.78 USD | View product → | |
| 24 | 91302-001-0210 | O-RING 30.8M/M | 1 | $6.72 USD | View product → | |
| 25 | 94005-PWB1-900 | HOSE BARB INTAKE MANIFOLD | 1 | $4.17 USD | View product → | |
| 26 | 94006-PWB1-900 | ROUTING CLIP SNAP-IN | 1 | $3.60 USD | View product → | |
| 27 | 95002-02100 | CLIP B15 TUBE | 1 | $4.92 USD | View product → | |
| 28 | 95002-40950-08 | CLAMP D9.5 TUBE | 1 | $6.06 USD | View product → | |
| 29 | 95002-41000-04 | CLAMP D 10 TUBE | 1 | $4.05 USD | View product → | |
| 30 | 95005-PWB1-900 | BREATH TUBE RR GEAR ASSY | 1 | $32.10 USD | View product → | |
| 31 | 95007-AGA8-E00 | HOSE VENT-GEARCASE | 1 | $40.11 USD | View product → | |
| 32 | 95701-08012-08 | BOLT FLANGE 8*12 | 2 | $7.53 USD | View product → | |
| 33 | 95701-08030-06 | BOLT FLANGE 8*30 | 6 | $8.49 USD | View product → | |
| 34 | 95701-10035-08G | BOLT FLANGE | 2 | $15.09 USD | View product → | |
| 35 | 96100-60090-00 | BRG RADIAL BALL 6009 | 1 | $143.34 USD | View product → | |
| 36 | 96100-62100-00 | BEARING BALL RADIAL 6210 | 2 | $158.16 USD | View product → |
