F07 — Wheel Assy Fr

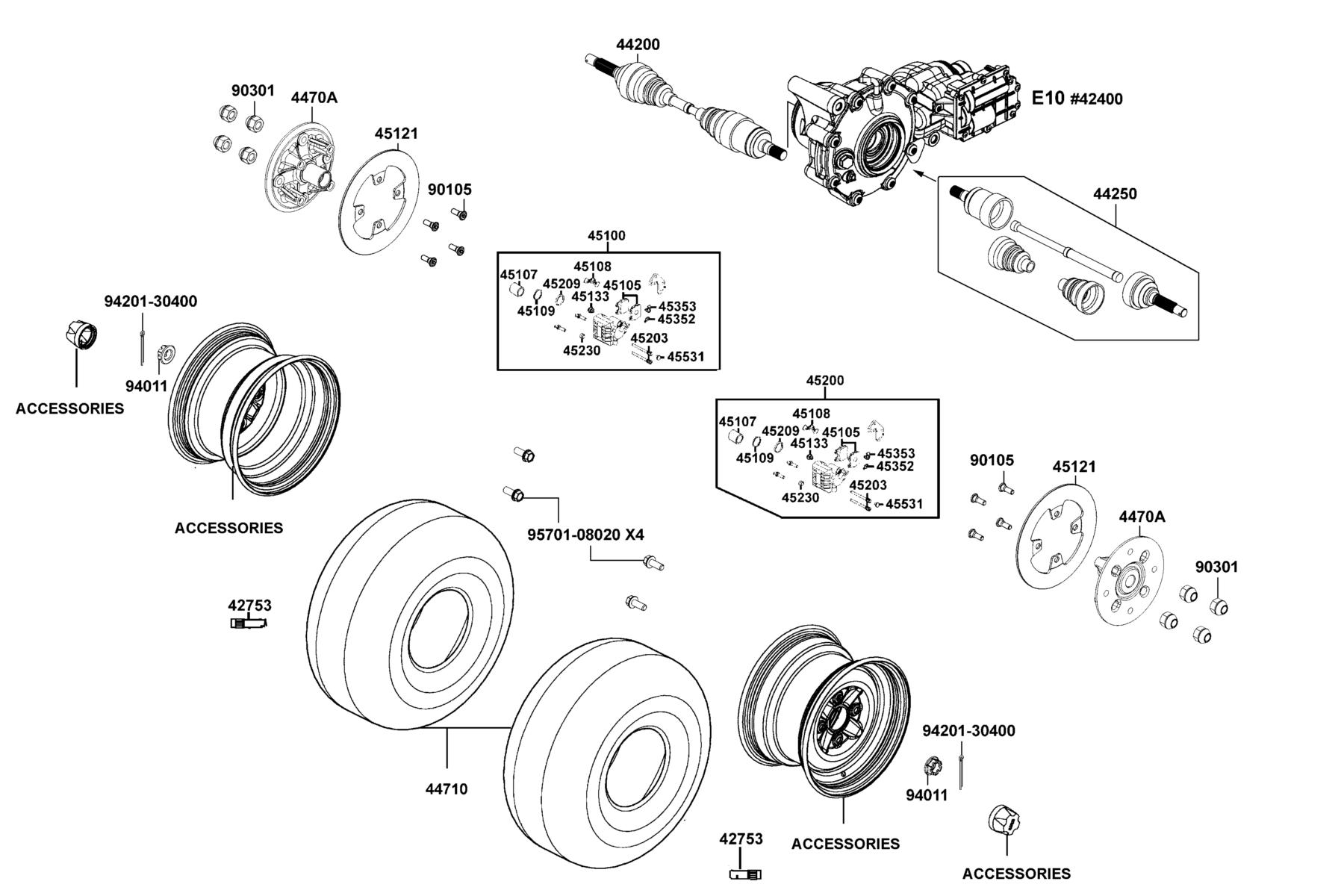

The Wheel Assy Fr diagram contains 24 genuine OEM parts for the KYMCO UXV 450i LE (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → | |
| 2 | 44200-ALE8-E00 | HALF SHAFT FR R | 1 | $401.30 USD | View product → | |
| 3 | 44250-ALE8-E00 | HALF SHAFT FR L | 1 | $595.02 USD | View product → | |
| 4 | 4470A-LEE8-900 | HUB ASSY FRONT WHEEL | 2 | $230.73 USD | View product → | |
| 5 | 44710-LEE8-90B | TIRE ASSY FR 25*8.00-12 /MAXXIS | 2 | $171.00 USD | View product → | |
| 6 | 45100-LEE8-E00-NJA | CALIPER ASSY FR R (Silver) | 1 | $245.94 USD | View product → | |
| 7 | 45105-PWA1-305 | PAD SET | 2 | $95.61 USD | View product → | |
| 8 | 45107-KFA6-900 | PISTON C/P (??33.96MM) | 2 | $31.17 USD | View product → | |
| 9 | 45108-LBA7-900 | SPRING PAD | 2 | $16.38 USD | View product → | |
| 10 | 45109-KFA6-900 | DUST SEAL | 2 | $4.92 USD | View product → | |
| 11 | 45121-LKM8-900 | DISK FR BRAKE | 2 | $213.87 USD | View product → | |
| 12 | 45133-LBA7-900 | BOOT A | 2 | $11.31 USD | View product → | |
| 13 | 45200-LEE8-E00-NJA | CALIPER ASSY FR L (Silver) | 1 | $250.68 USD | View product → | |
| 14 | 45203-LBA7-900 | PIN HANGER | 4 | $17.07 USD | View product → | |
| 15 | 45209-KFA6-900 | SEAL PISTON | 2 | $24.96 USD | View product → | |
| 16 | 45230-LBA7-900 | BUSH PIN | 2 | $12.09 USD | View product → | |
| 17 | 45352-LBA7-900 | BLEEDER | 2 | $13.95 USD | View product → | |
| 18 | 45353-LBA7-900 | CAP BLEEDER | 2 | $6.39 USD | View product → | |
| 19 | 45531-LBA7-900 | PLUG | 2 | $4.53 USD | View product → | |
| 20 | 90105-MLL0-731 | BOLT STEP HOLDER 8*24 | 8 | $9.39 USD | View product → | |
| 21 | 90301-LDB5-E00 | NUT WHEEL | 8 | $18.24 USD | View product → | |
| 22 | 94011-PWB1-900 | NUT CASTLE FLANGE M22x1.5 | 2 | $52.95 USD | View product → | |
| 23 | 94201-30400 | PIN SPLIT 3*40 | 2 | $10.14 USD | View product → | |
| 24 | 95701-08020-06 | BOLT FLANGE 8*20 | 4 | $3.78 USD | View product → |
