F08 — Wheel Assy Rr

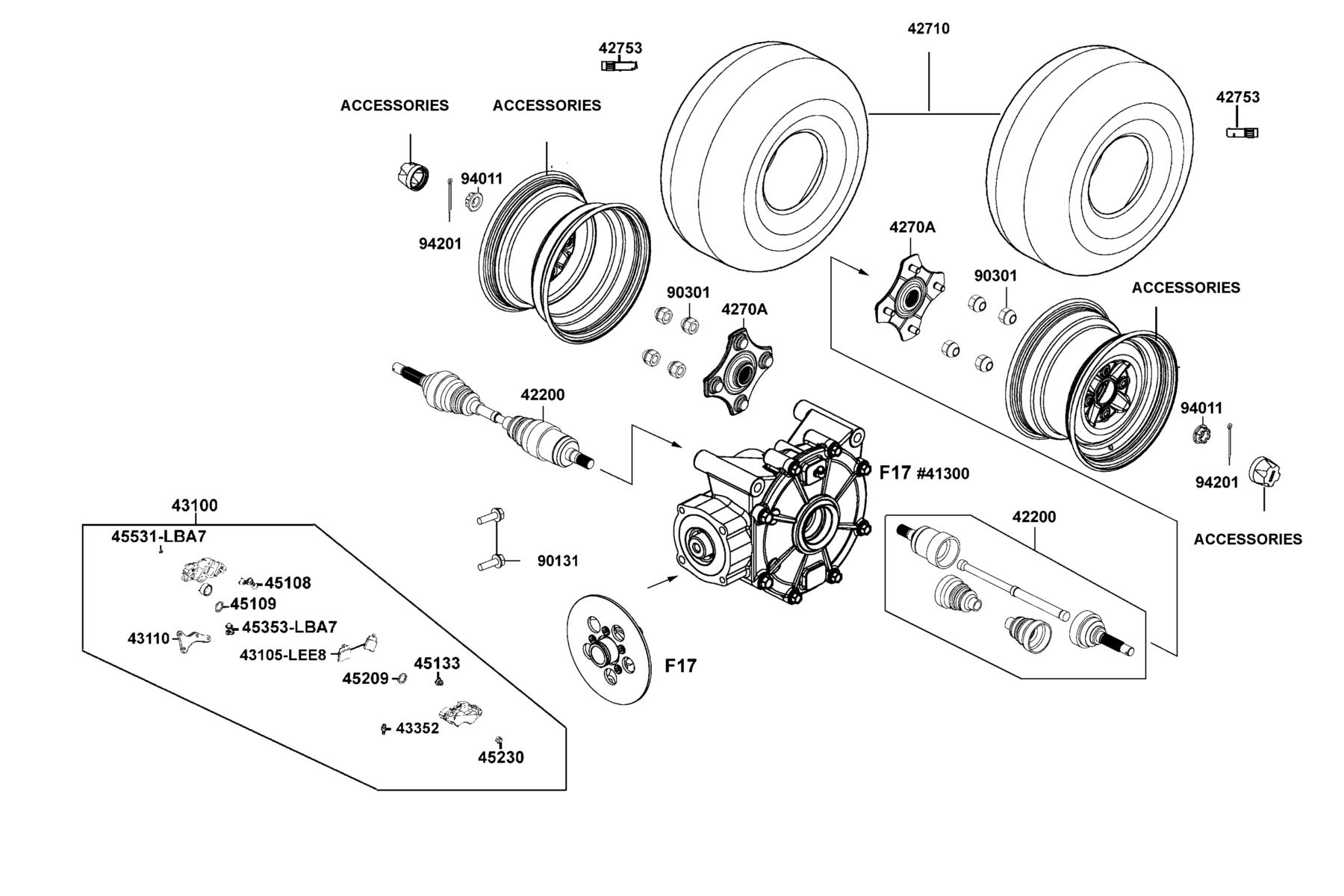

The Wheel Assy Rr diagram contains 19 genuine OEM parts for the KYMCO UXV 450i LE (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42200-ALE8-E00 | HALF SHAFT RR | 2 | $414.48 USD | View product → | |
| 2 | 4270A-LEE8-900 | HUB ASSY REAR WHEEL | 2 | $164.73 USD | View product → | |
| 3 | 42710-LEE8-90B | TIRE ASSY RR 25*10.00-12 4PR /MAXXIS | 2 | $404.97 USD | View product → | |
| 4 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → | |
| 5 | 43100-ALE8-E00-NJA | CALIPER ASSY RR BRK (Silver) | 1 | $510.03 USD | View product → | |
| 6 | 43105-LEE8-305 | PAD ASSY | 1 | $84.00 USD | View product → | |
| 7 | 43110-LFE9-305 | BRACKET ASSY | 1 | $102.78 USD | View product → | |
| 8 | 43352-KKD6-E90 | SCREW BLEEDER | 1 | $12.45 USD | View product → | |
| 9 | 45108-LBA7-900 | SPRING PAD | 1 | $16.38 USD | View product → | |
| 10 | 45109-PWA1-900 | DUST SEAL | 1 | $16.14 USD | View product → | |
| 11 | 45133-LBA7-900 | BOOT A | 1 | $11.31 USD | View product → | |
| 12 | 45209-PWA1-900 | SEAL PISTON | 1 | $13.95 USD | View product → | |
| 13 | 45230-LBA7-900 | BUSH PIN | 1 | $12.09 USD | View product → | |
| 14 | 45353-LBA7-900 | CAP BLEEDER | 1 | $6.39 USD | View product → | |
| 15 | 45531-LBA7-900 | PLUG | 1 | $4.53 USD | View product → | |
| 16 | 90131-LFB5-900 | BOLT FLANGE 8X55 | 2 | $22.86 USD | View product → | |
| 17 | 90301-LDB5-E00 | NUT WHEEL | 8 | $18.24 USD | View product → | |
| 18 | 94011-PWB1-900 | NUT CASTLE FLANGE M22x1.5 | 2 | $52.95 USD | View product → | |
| 19 | 94201-30400 | PIN SPLIT 3*40 | 2 | $10.14 USD | View product → |
