F11 — Battery

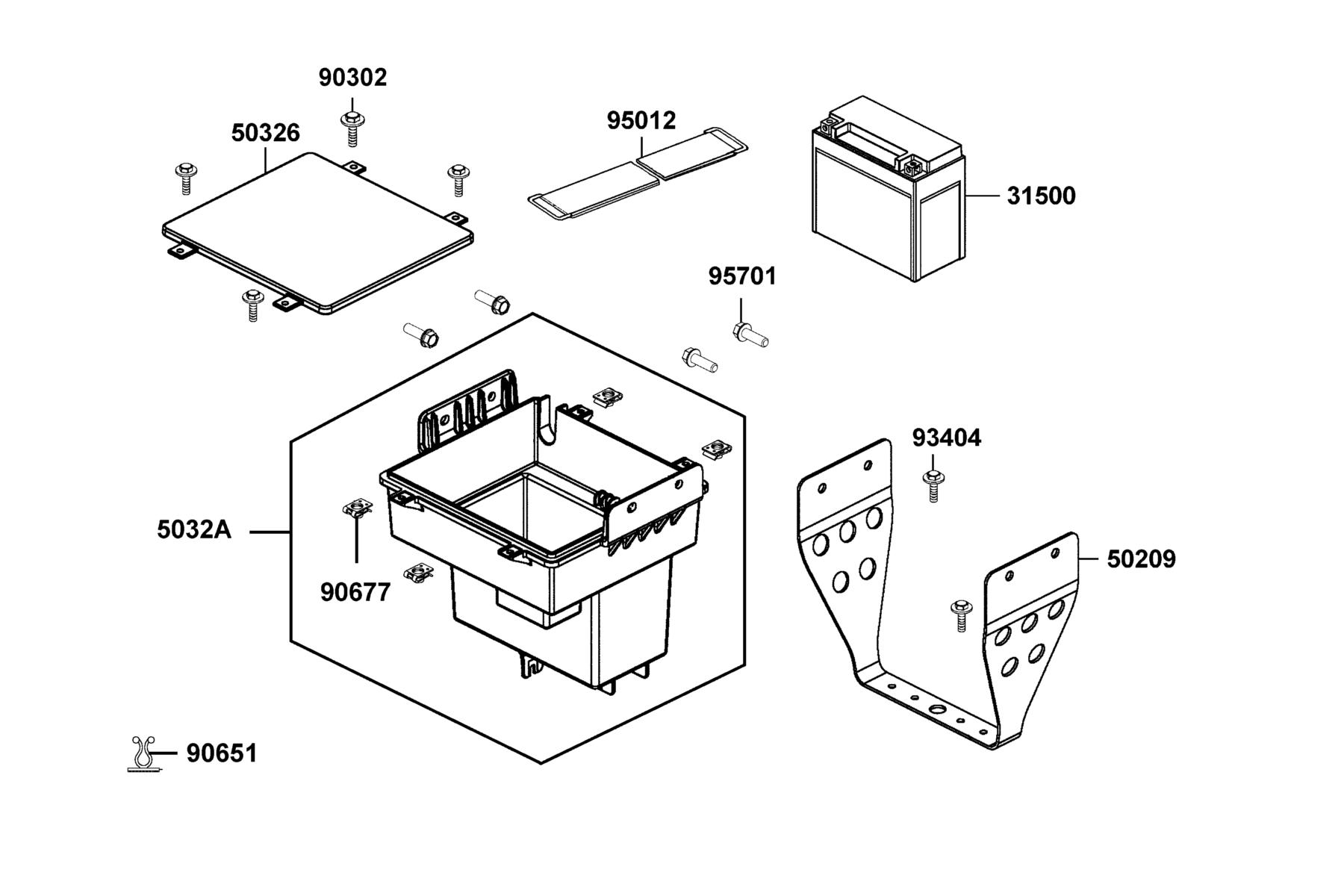

The Battery diagram contains 10 genuine OEM parts for the KYMCO UXV 450i LE (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 31500-LDB5-E0A | BATTERY YTX20L-BS | 1 | $396.00 USD | View product → | |
| 2 | 50209-ALE8-E00 | BRKT BATTERY | 1 | $138.21 USD | View product → | |
| 3 | 50326-ALE8-E00-N1R | COVER BATTERY (Black) | 1 | $39.00 USD | View product → | |
| 4 | 5032A-ALE8-E00-N1R | CASE ASS'Y BATTERY (Black) | 1 | $93.66 USD | View product → | |
| 5 | 90302-GFY6-901 | BOLT-WASH 5*12 | 4 | $3.99 USD | View product → | |
| 6 | 90651-LGM9-700 | CLIP HARNESS WIRE | 1 | $4.26 USD | View product → | |
| 7 | 90677-GAR1-004 | NUT CLIP 5MM | 4 | $3.00 USD | View product → | |
| 8 | 93404-06016-06 | BOLT WASHER 6*16 | 2 | $7.89 USD | View product → | |
| 9 | 95012-KED9-900 | BAND BATTERY | 1 | $18.72 USD | View product → | |
| 10 | 95701-08020-06 | BOLT FLANGE 8*20 | 4 | $3.78 USD | View product → |
