F24 — Half Shaft Fr/Rr

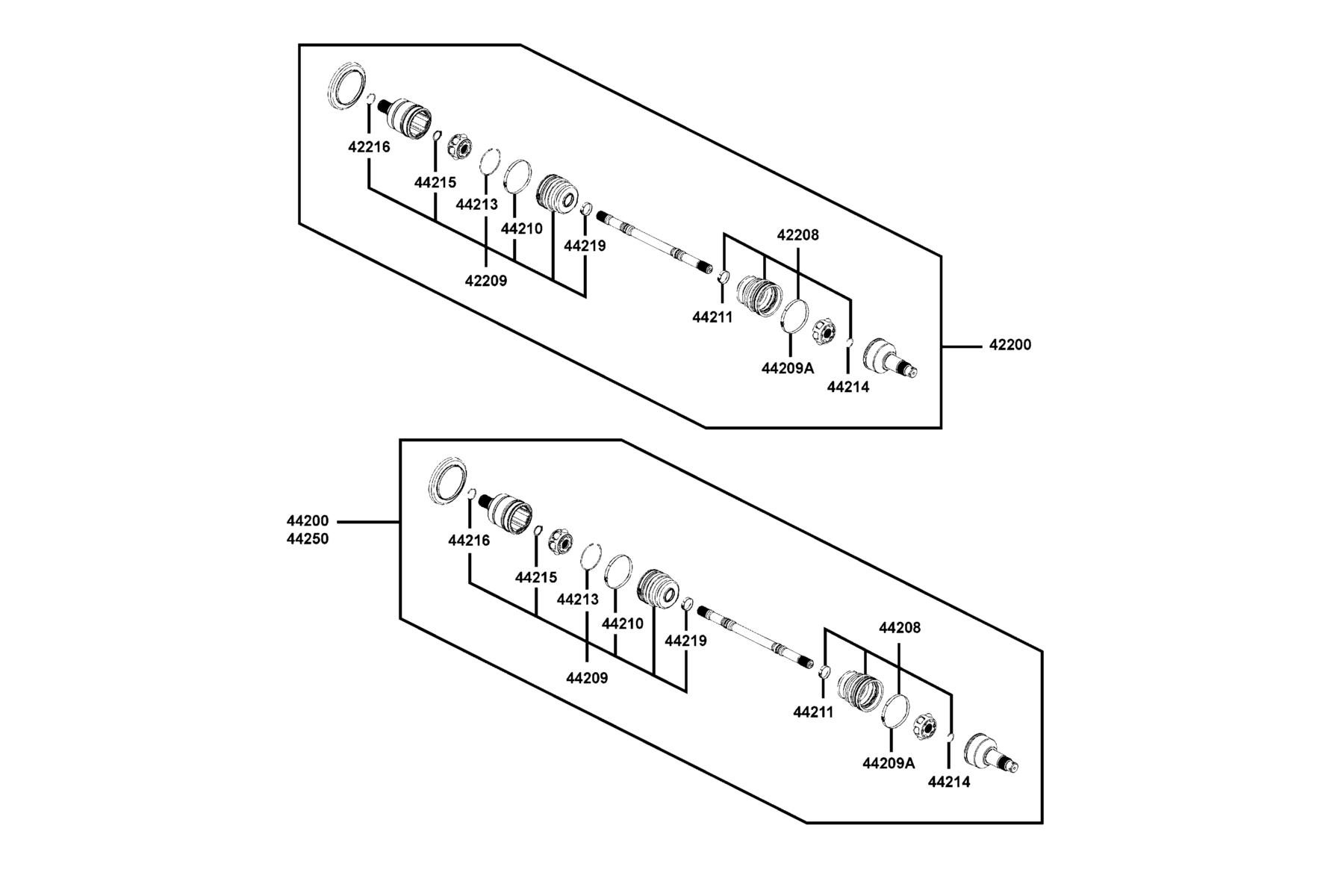

The Half Shaft Fr/Rr diagram contains 16 genuine OEM parts for the KYMCO UXV 450i LE (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42200-ALE8-E00 | HALF SHAFT RR | 1 | $414.48 USD | View product → | |
| 2 | 42208-ALC1-305 | WHEEL SIDE BOOT SERVICE KIT | 1 | $134.07 USD | View product → | |
| 3 | 42209-ALC1-305 | DIFF SIDE BOOT SERVICE KIT | 1 | $148.32 USD | View product → | |
| 4 | 42216-LEE8-E00 | CIRCLIP DOJ STEM | 1 | $44.31 USD | View product → | |
| 5 | 44200-ALE8-E00 | HALF SHAFT FR R | 1 | $401.30 USD | View product → | |
| 6 | 44208-ALC1-305 | WHEEL SIDE BOOT SERVICE KIT | 2 | $132.42 USD | View product → | |
| 7 | 44209-ALC1-305 | DIFF SIDE BOOT SERVICE KIT | 2 | $146.70 USD | View product → | |
| 8 | 44209-ALC1-E00 | BOOT BAND (L) | 3 | $35.37 USD | View product → | |
| 9 | 44210-ALC1-E00 | BOOT BAND (L) | 3 | $32.28 USD | View product → | |
| 10 | 44211-ALC1-E00 | BOOT BAND(S) | 3 | $30.03 USD | View product → | |
| 11 | 44213-PWB1-900 | CIRCLIP (DOJ MONTH) | 3 | $17.82 USD | View product → | |
| 12 | 44214-PWB1-900 | CIRCLIP | 3 | $16.68 USD | View product → | |
| 13 | 44215-PWB1-900 | SNAP RING | 3 | $37.14 USD | View product → | |
| 14 | 44216-PWB1-900 | CIRCLIP (DOJ STEM) | 1 | $15.36 USD | View product → | |
| 15 | 44219-ALC1-E00 | BOOT BAND(S) | 3 | $30.03 USD | View product → | |
| 16 | 44250-ALE8-E00 | HALF SHAFT FR L | 1 | $595.02 USD | View product → |
