F09 — Seat Assy

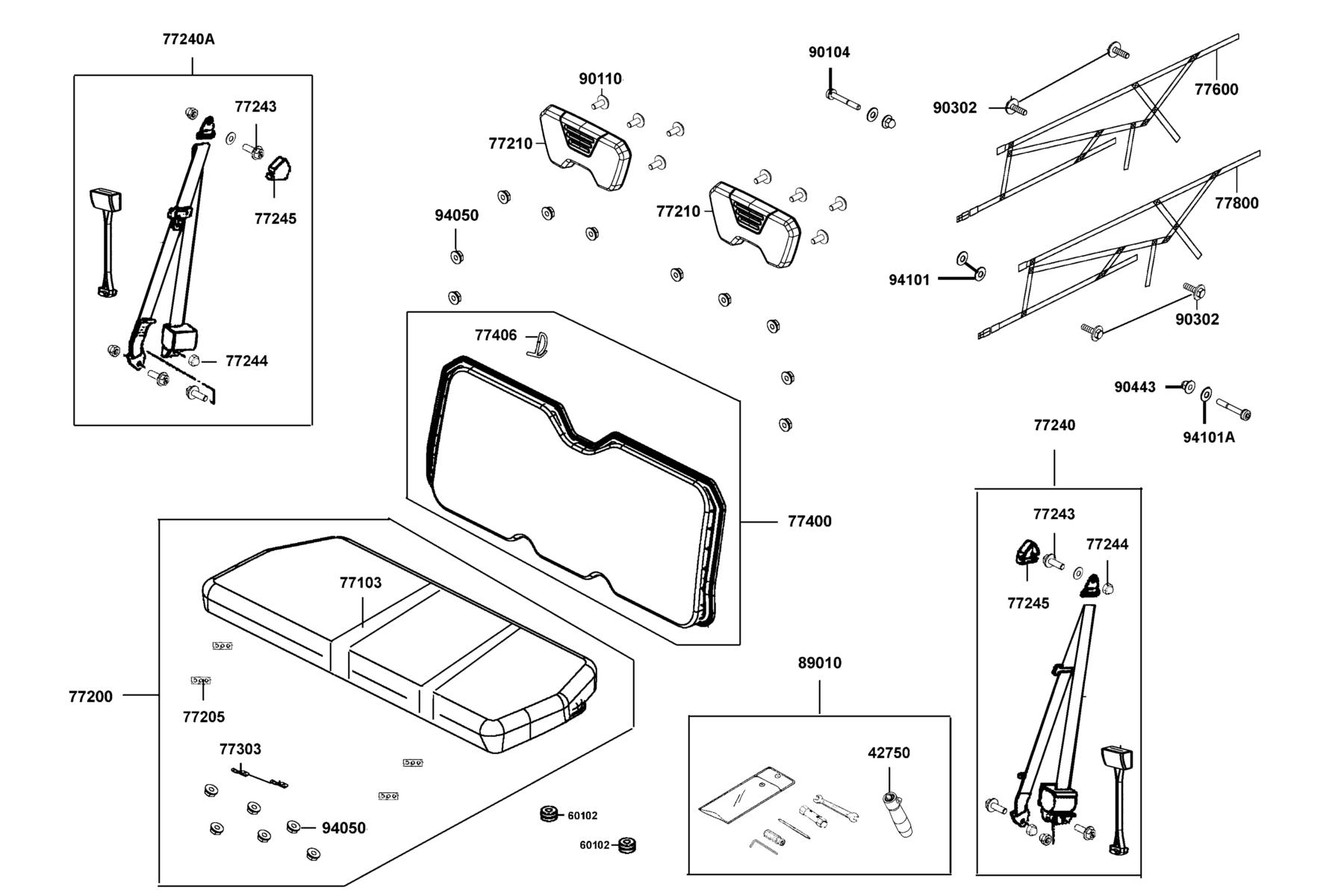

The Seat Assy diagram contains 24 genuine OEM parts for the KYMCO UXV 450i LE (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42750-LEE8-E0A | GAUGE??? AIR PRESSURE | 1 | $77.07 USD | View product → | |
| 2 | 60102-PWB1-900 | GROMMET PANEL-SIDE | 2 | $4.89 USD | View product → | |
| 3 | 77103-ALE8-E00 | BAND SEAT | 2 | $115.56 USD | View product → | |
| 4 | 77200-ALE8-E00-T01 | SEAT ASSY (REACH) | 1 | $544.00 USD | View product → | |
| 5 | 77205-2F86-001 | RUBBER B SEAT SETTING | 4 | $8.28 USD | View product → | |
| 6 | 77210-ALE8-E00-T01 | HEADREST ASSY | 2 | $126.57 USD | View product → | |
| 7 | 77240-ALE8-910 | BELT??AFETY | 1 | $411.69 USD | View product → | |
| 8 | 77240-ALE8-E01 | BELT SAFETY | 1 | $175.32 USD | View product → | |
| 9 | 77243-LEE8-E00 | BOLT | 6 | $14.79 USD | View product → | |
| 10 | 77244-LEE8-E00 | NUT FLANGE | 8 | $4.92 USD | View product → | |
| 11 | 77245-LEE8-E00 | CAP BOLT | 2 | $6.60 USD | View product → | |
| 12 | 77303-LDB5-E00 | STAY SEAT | 2 | $9.39 USD | View product → | |
| 13 | 77400-ALE8-E00-T01 | SEAT ASSY BACK (REACH) | 1 | $407.60 USD | View product → | |
| 14 | 77406-ALE8-E00 | TUBE BACK SEAT | 1 | $102.36 USD | View product → | |
| 15 | 77600-ALE8-E00 | NET ASSY R SAFETY | 1 | $333.75 USD | View product → | |
| 16 | 77800-ALE8-E00 | NET ASSY L SAFETY | 1 | $333.75 USD | View product → | |
| 17 | 89010-LEE8-E00 | TOOL SET | 1 | $122.46 USD | View product → | |
| 18 | 90104-LEA7-E00 | BOLT WASH M8*60 | 2 | $33.39 USD | View product → | |
| 19 | 90110-KEB7-900 | SCREW SPECIAL 6*14 | 8 | $6.06 USD | View product → | |
| 20 | 90302-PWB1-900 | BOLT-WASH 5*22 | 4 | $4.92 USD | View product → | |
| 21 | 90443-ABA5-E20 | NUT??? CAP??? FLANGE??? 8MM | 2 | $24.99 USD | View product → | |
| 22 | 94050-06060 | NUT FLANGE 6MM | 6 | $4.92 USD | View product → | |
| 23 | 94101-06000 | WASHER PLAIN 6MM | 2 | $4.92 USD | View product → | |
| 24 | 94101-08000 | WASHER PLAIN 8MM | 2 | $1.65 USD | View product → |
