E03 — Cylinder ● Piston

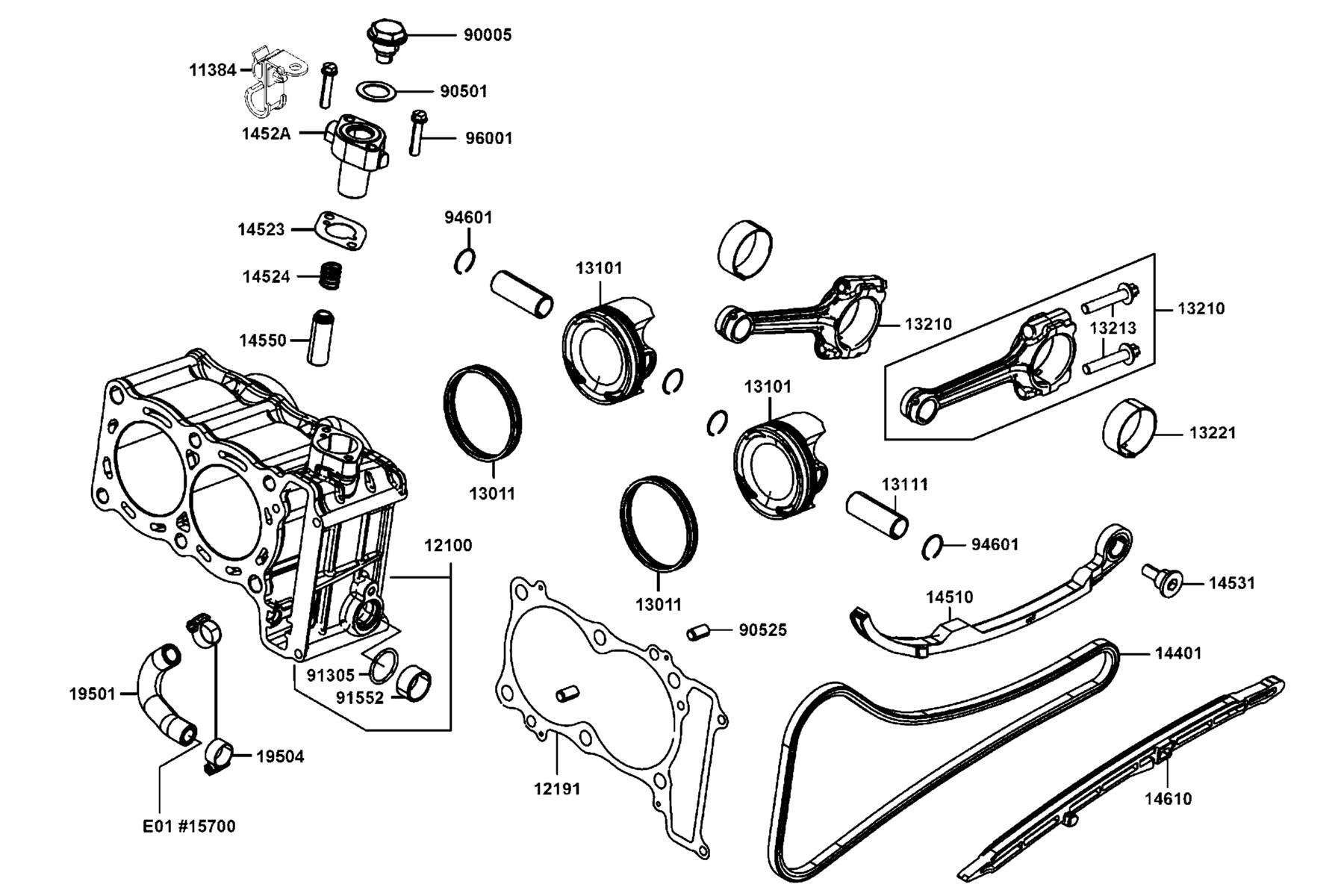

The Cylinder ● Piston diagram contains 31 genuine OEM parts for the KYMCO AK550 ST. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11384-LGC6-E03 | CLAMPER A RR BRK HOSE | 1 | $10.38 USD | View product → | |
| 2 | 12100-LGC6-E00 | CYLINDER COMP (A) | 1 | $571.12 USD | View product → | |
| 3 | 12191-LGC6-E00 | GASKET CYLINDER | 1 | $48.60 USD | View product → | |
| 4 | 13011-LGC6-E00 | RING SET PISTON | 2 | $54.42 USD | View product → | |
| 5 | 13101-LGC6-E02 | PISTON | 2 | $222.03 USD | View product → | |
| 6 | 13111-LGC6-E00 | PIN PISTON | 2 | $14.73 USD | View product → | |
| 7 | 13210-LGC6-E00-1 | CONN ROD ASSY ???p39(0~+0.008) | 2 | $545.67 USD | View product → | |
| 8 | 13210-LGC6-E00-2 | CONN ROD ASSY ???p39(+0.008~+0.016) | 2 | $544.56 USD | View product → | |
| 9 | 13213-LGC6-E00 | BOLT CONN ROD | 4 | $10.38 USD | View product → | |
| 10 | 13221-LGC6-E00-A | BEARING CONN. ROD/ YELLOW | 4 | $42.18 USD | View product → | |
| 11 | 13221-LGC6-E00-B | BEARING CONN. ROD/ BLUE | 4 | $41.43 USD | View product → | |
| 12 | 13221-LGC6-E00-C | BEARING CONN. ROD/ RED | 4 | $40.26 USD | View product → | |
| 13 | 13221-LGC6-E00-D | BEARING CONN. ROD/ GREEN | 4 | $41.43 USD | View product → | |
| 14 | 13221-LGC6-E00-E | BEARING CONN. ROD/ BLACK | 4 | $42.18 USD | View product → | |
| 15 | 14401-LGC6-E00 | CHAIN. CAM | 1 | $166.29 USD | View product → | |
| 16 | 14510-LGC6-E00 | TENSIONER. CAM CHAIN | 1 | $95.88 USD | View product → | |
| 17 | 14523-KKE5-E01 | GASKET TENSIONER LIFTER | 1 | $11.31 USD | View product → | |
| 18 | 14524-KKE5-E01 | SPRING OIL TENSIONER | 1 | $11.31 USD | View product → | |
| 19 | 1452A-ZPA3-E00 | CASE ASM LIFTER TENSIONER | 1 | $42.99 USD | View product → | |
| 20 | 14531-KHE7-900 | PIVOT CAM CHAIN TENSIONER | 1 | $16.53 USD | View product → | |
| 21 | 14550-KKE5-E02 | CHAIN TENSIONER | 1 | $200.43 USD | View product → | |
| 22 | 14610-LGC6-E00 | GUIDE COMP.. CAM CHAIN | 1 | $27.39 USD | View product → | |
| 23 | 19501-LGC6-E00 | HOSE. WATER A | 1 | $17.64 USD | View product → | |
| 24 | 19504-LBA2-E00 | CLAMP D16.8 | 2 | $13.95 USD | View product → | |
| 25 | 90005-LEH6-E00 | BOLT SPECIAL M18*1.0 | 1 | $9.27 USD | View product → | |
| 26 | 90501-LEH6-E00 | WASHER 28*18.2*1 | 1 | $11.31 USD | View product → | |
| 27 | 90525-KED9-900 | LOCK PIN 8*16 | 2 | $4.20 USD | View product → | |
| 28 | 91305-LEH6-E00 | O RING 19.8x1.9 | 1 | $11.79 USD | View product → | |
| 29 | 91552-LEH6-E00 | COLLAR 20mm | 1 | $2.31 USD | View product → | |
| 30 | 94601-17000 | CLIP PISTON PIN 17MM | 4 | $1.86 USD | View product → | |
| 31 | 96001-06028-06 | BOLT FLANGE SH 6*28 | 1 | $1.95 USD | View product → |
