E08 — Starting Motor●Generator

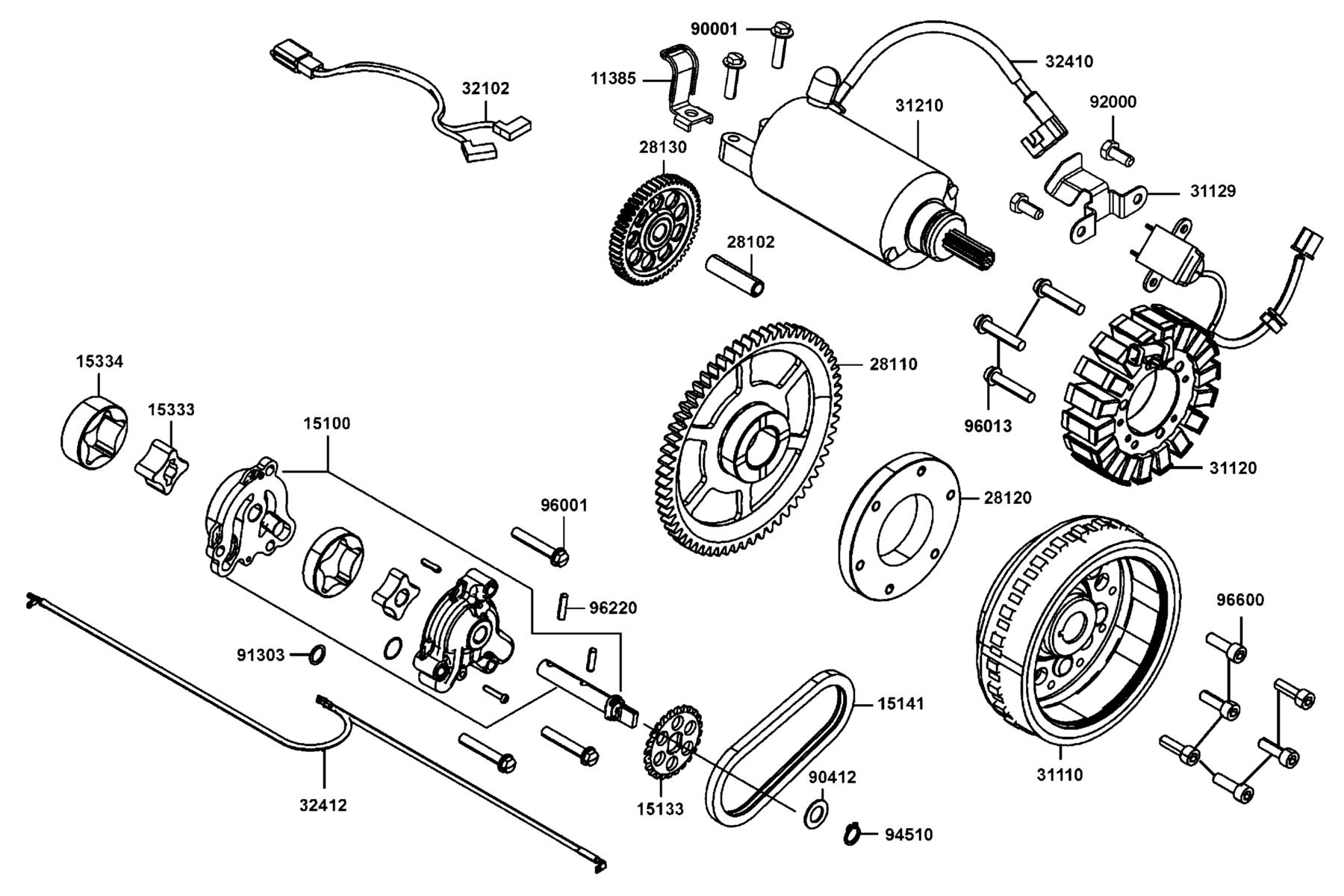

The Starting Motor●Generator diagram contains 26 genuine OEM parts for the KYMCO AK550 ST. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11385-LGC6-E00 | CLAMP BLOW BY HOSE | 1 | $7.26 USD | View product → | |
| 2 | 15100-LGC6-E00 | PUMP ASSY OIL | 1 | $131.40 USD | View product → | |
| 3 | 15133-LGC6-E00 | SPRKT OIL PUMP DRIVEN | 1 | $33.96 USD | View product → | |
| 4 | 15141-GFY6-90C | CHAIN OIL PUMP | 1 | $70.50 USD | View product → | |
| 5 | 15333-LEH6-E00 | ROTOR ENGINE INNER | 1 | $12.00 USD | View product → | |
| 6 | 15334-LEH6-E00 | ROTOR ENGINE OUTER | 1 | $16.86 USD | View product → | |
| 7 | 28102-LEA7-E00 | SHAFT STARTER REDUCTION | 1 | $35.85 USD | View product → | |
| 8 | 28110-LGC6-E01 | GEAR COMP. STARTING CLUTCH (63T) | 1 | $197.07 USD | View product → | |
| 9 | 28120-LGC6-E00 | ONE WAY CLUTCH | 1 | $273.21 USD | View product → | |
| 10 | 28130-LGC6-E01 | GEAR STARTER REDUCTION (52T/11T) | 1 | $163.29 USD | View product → | |
| 11 | 31110-LGC6-E00 | FLYWHEEL COMP (D402) | 1 | $323.61 USD | View product → | |
| 12 | 31120-LGC6-E00 | STATOR COMP (D402) | 1 | $369.45 USD | View product → | |
| 13 | 31129-LGC6-E00 | STAY STATOR COMP | 1 | $6.00 USD | View product → | |
| 14 | 31210-LGC6-E00 | MOTOR UNIT STARTER | 1 | $468.51 USD | View product → | |
| 15 | 32102-AKB8-E01 | SUB HARNESS ENGINE | 1 | $147.06 USD | View product → | |
| 16 | 32410-AKB8-E00 | CABLE. START MOTOR | 1 | $121.41 USD | View product → | |
| 17 | 32412-AKB8-E00 | CABLE EARTH | 1 | $84.36 USD | View product → | |
| 18 | 90001-GBHB-661 | BOLT FLANGE SH 6*22 | 2 | $4.92 USD | View product → | |
| 19 | 90412-3K29-001 | WASHER THRUST 10M/M | 1 | $7.53 USD | View product → | |
| 20 | 91303-PUA5-E00 | O-RING_9X1_5 | 1 | $2.82 USD | View product → | |
| 21 | 92000-05016-0G | BOLT HEX 5X16 | 2 | $11.79 USD | View product → | |
| 22 | 94510-10000 | CIR CLIP EX 10MM | 1 | $4.92 USD | View product → | |
| 23 | 96001-06035-06 | BOLT FLANGE SH 6*35 | 3 | $3.93 USD | View product → | |
| 24 | 96013-LGC6-E00 | M6X35-8.8-ZNNIV SI | 3 | $5.61 USD | View product → | |
| 25 | 96220-40158 | NEEDLE PIN 4X15.8 | 1 | $0.87 USD | View product → | |
| 26 | 96600-06015-10 | SOCKET BOLT 6X15 | 6 | $7.23 USD | View product → |
