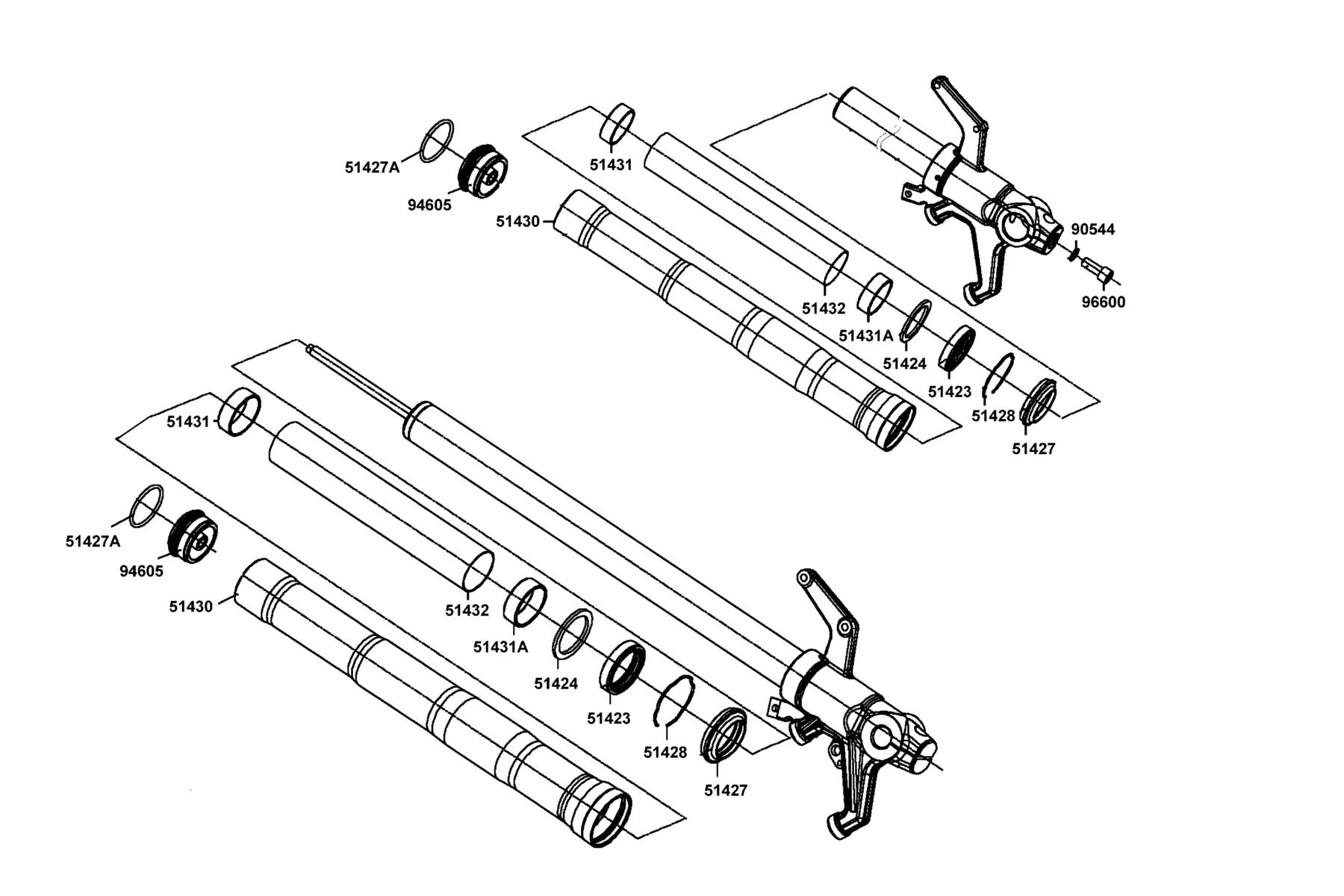

F23 — Separated Parts Of Fr Fork
The Separated Parts Of Fr Fork diagram contains 11 genuine OEM parts for the KYMCO AK550 ST. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 51423-ADF8-E00 | OIL SEAL (OUT DIA:53MM) | 2 | $18.18 USD | View product → | |
| 2 | 51424-ADF8-E00 | SPACER | 2 | $11.31 USD | View product → | |
| 3 | 51427-ADF8-E00 | DUST SEAL | 2 | $15.54 USD | View product → | |
| 4 | 51427-LGC6-E00 | O-RING | 1 | $5.46 USD | View product → | |
| 5 | 51428-KED9-900 | OIL SEAL STOPPER RING | 1 | $17.28 USD | View product → | |
| 6 | 51431-KED9-900 | GUIDE BUSH | 1 | $33.69 USD | View product → | |
| 7 | 51431-LGC6-E00 | GUIDE BUSH | 1 | $14.73 USD | View product → | |
| 8 | 51432-LGC6-E00 | DIST COLLAR | 1 | $90.30 USD | View product → | |
| 9 | 90544-KEC8-900 | PACKING | 1 | $3.00 USD | View product → | |
| 10 | 94605-LGC6-E00 | FORK BOLT | 2 | $25.95 USD | View product → | |
| 11 | 96600-LKF5-E00 | BOLT | 1 | $30.63 USD | View product → |
