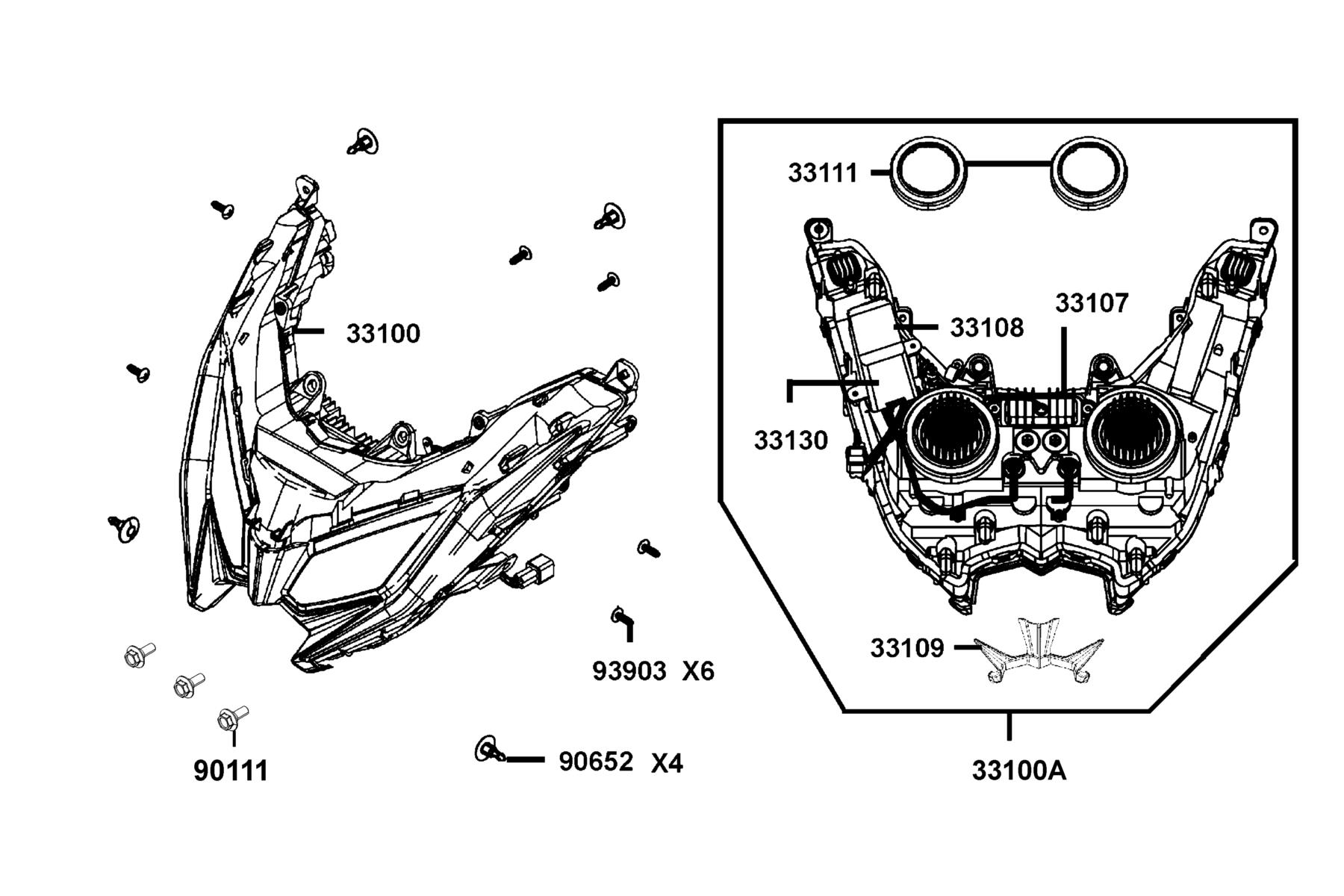

F01 — Head Light
The Head Light diagram contains 10 genuine OEM parts for the KYMCO AK550 ST. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33100-AKB8-305 | LIGHT ASSY HEAD | 1 | $787.60 USD | View product → | |
| 2 | 33100-AKB8-E00 | LIGHT ASSY HEAD | 1 | $1053.60 USD | View product → | |
| 3 | 33107-AKB8-E00 | DRIVE PCB ASSY POSITION LIGHT | 1 | $43.47 USD | View product → | |
| 4 | 33108-LGC6-E00 | DRIVE PCB ASSY HEAD LIGHT | 1 | $391.89 USD | View product → | |
| 5 | 33109-AKB8-E00-JEP | OUTER RS HEAD LIGHT | 1 | — | Part details → | |
| 6 | 33111-LGC6-E00 | COVER RUBBER | 2 | $54.66 USD | View product → | |
| 7 | 33130-AKB8-E00 | SOCKET COMP HEAD LIGHT | 1 | $74.52 USD | View product → | |
| 8 | 90111-LGE3-910 | BOLT FLANGE 6MM | 2 | $9.00 USD | View product → | |
| 9 | 90652-LCA4-E00 | CLIP MUDGUARD | 4 | $4.92 USD | View product → | |
| 10 | 93903-35260 | SCREW TAPPING 5*12 | 6 | $4.92 USD | View product → |
