E02 — Cylinder Head

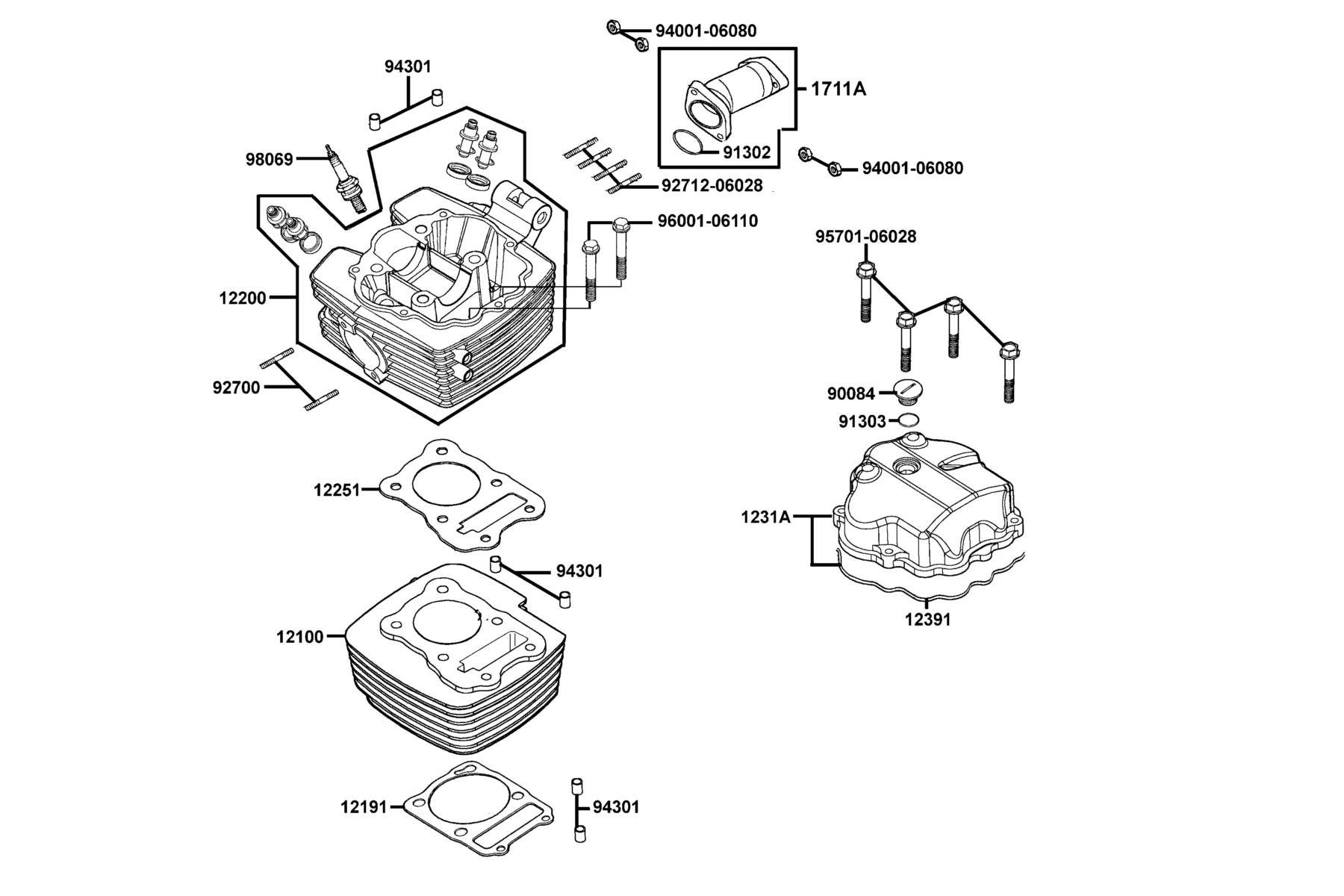

The Cylinder Head diagram contains 17 genuine OEM parts for the KYMCO MXU 150 2026 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12100-KKA8-900-NJS | CYLINDER COMP | 1 | $284.13 USD | View product → | |
| 2 | 12191-KEC8-9000 | GASKET CYLINDER | 1 | $20.40 USD | View product → | |
| 3 | 12200-KFB1-E00 | HEAD COMP CYLINDER | 1 | $325.11 USD | View product → | |
| 4 | 12251-KFB1-900 | GASKET CYLINDER HEAD | 1 | $40.86 USD | View product → | |
| 5 | 1231A-LLB1-920 | COVER ASSY HEAD | 1 | $137.40 USD | View product → | |
| 6 | 12391-KEC8-920 | PACKING CYLINDER HEAD | 1 | $73.65 USD | View product → | |
| 7 | 1711A-LCA4-900 | PIPE ASSY INLET | 1 | $73.14 USD | View product → | |
| 8 | 90084-4H28-001-NJA | CAP ACG (Silver) | 1 | $0.78 USD | View product → | |
| 9 | 91302-2L00-001 | O-RING 33.5*3 | 1 | $4.92 USD | View product → | |
| 10 | 91303-3G77-001 | O-RING 13.8*2.5 | 1 | $4.92 USD | View product → | |
| 11 | 92700-06035-3E | BOLT STUD ??? 6X35 | 2 | $2.61 USD | View product → | |
| 12 | 92712-06028-0B | BOLT STUD 6*28 | 4 | $4.68 USD | View product → | |
| 13 | 94001-06080-0S | NUT HEX 6MM | 4 | $4.92 USD | View product → | |
| 14 | 94301-10160 | DOWEL PIN 10*16 | 6 | $3.00 USD | View product → | |
| 15 | 95701-06028-06 | BOLT FLANGE 6X28 | 1 | $0.87 USD | View product → | |
| 16 | 96001-06110-06 | BOLT FLANGE SH 6*110 | 1 | $0.63 USD | View product → | |
| 17 | 98069-5771R | SPARK PLUG (DR-8EA) | 1 | $16.59 USD | View product → |
