F11 — Luggage Box

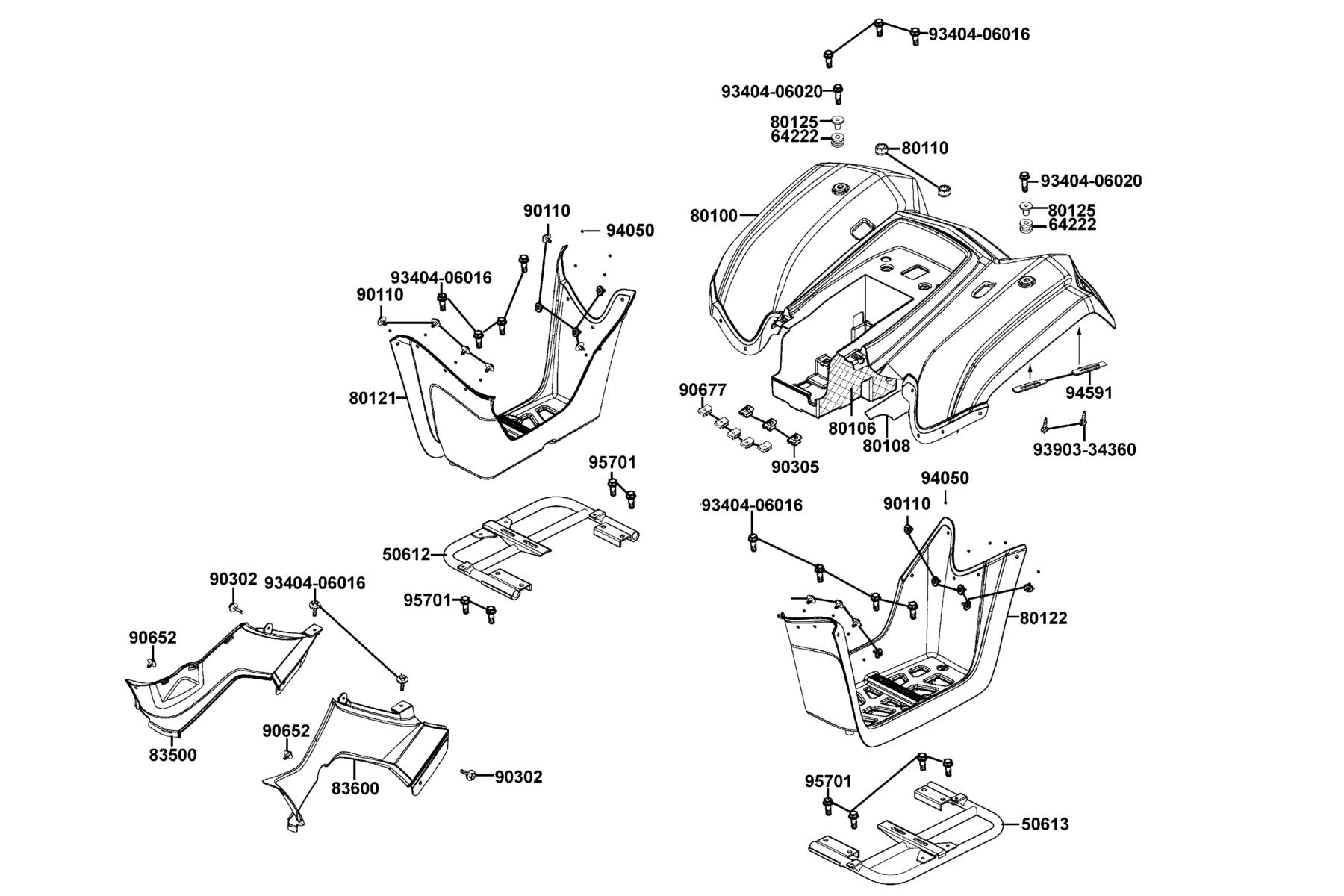

The Luggage Box diagram contains 23 genuine OEM parts for the KYMCO MXU 150 2026 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 50612-LCA4-E00 | STAY R FOLLR PANEL | 1 | $118.80 USD | View product → | |
| 2 | 50613-LCA4-E00 | STAY L FLOOR PANEL | 1 | $118.80 USD | View product → | |
| 3 | 64222-LLJ3-E00 | RUBBER WIND SCREEN | 2 | $3.66 USD | View product → | |
| 4 | 80100-LCA4-E00-GWR | FENDER RR | 1 | $274.29 USD | View product → | |
| 5 | 80106-LCA4-E00 | HEAT GUARD A RR FENDER | 1 | $31.83 USD | View product → | |
| 6 | 80108-LCA4-E00 | HEAT GUARD B RR FENDER | 1 | $14.10 USD | View product → | |
| 7 | 80110-LBA7-900 | RUBBER REAR FENDER | 2 | $3.66 USD | View product → | |
| 8 | 80121-LCA4-E00-N1R | MUDGUARD.R FLOOR (Black) | 1 | $134.01 USD | View product → | |
| 9 | 80122-LCA4-E01-N1R | MUDGUARD.L FLOOR (Black) | 1 | $134.01 USD | View product → | |
| 10 | 80125-LBD4-900 | COLLAR FLOOR | 2 | $4.56 USD | View product → | |
| 11 | 83500-LCA4-E01-N1R | COVER.R SIDE (Black) | 1 | $67.50 USD | View product → | |
| 12 | 83600-LCA4-E01-N1R | COVER.L SIDE (Black) | 1 | $27.21 USD | View product → | |
| 13 | 90110-PWB1-900 | SCREW SPECIAL 6X20 | 18 | $7.17 USD | View product → | |
| 14 | 90302-PWA1-900 | BOLT-WASH 5*16 | 2 | $4.92 USD | View product → | |
| 15 | 90305-GHK8-001 | NUT CLIP 6MM | 3 | $4.92 USD | View product → | |
| 16 | 90652-LCA4-E00 | CLIP MUDGUARD | 2 | $4.92 USD | View product → | |
| 17 | 90677-GAR1-004 | NUT CLIP 5MM | 5 | $3.00 USD | View product → | |
| 18 | 93404-06016-06 | BOLT WASHER 6*16 | 13 | $7.89 USD | View product → | |
| 19 | 93404-06020-06 | BOLT WASHER 6X20 | 2 | $3.00 USD | View product → | |
| 20 | 93903-34360 | SCREW TAPPING 4X12 | 2 | $4.29 USD | View product → | |
