E05 — Right Crankcase Cover●Generator

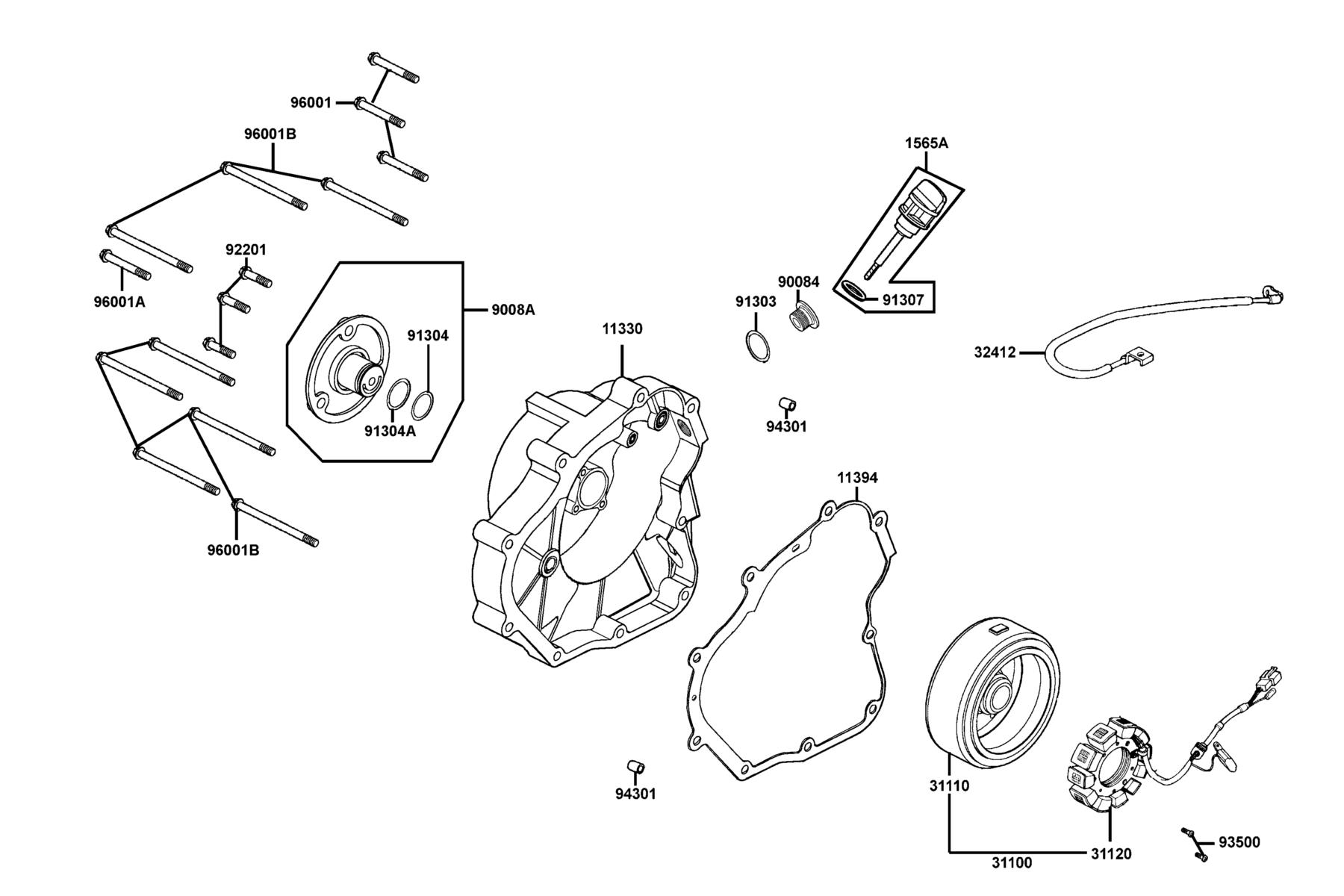

The Right Crankcase Cover●Generator diagram contains 19 genuine OEM parts for the KYMCO MXU 150 2026 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11330-LLB1-900 | COVER COMP R CRANK CASE | 1 | $173.70 USD | View product → | |
| 2 | 11394-LLB1-900 | GASKET R COVER A | 1 | $38.52 USD | View product → | |
| 3 | 1565A-GFY6-900 | GAUGE OIL LEVEL ASSY | 1 | $10.53 USD | View product → | |
| 4 | 31100-LCA4-E0B | AC GEN ASSY | 1 | $453.57 USD | View product → | |
| 5 | 31110-LCA4-E0B | FLYWHEEL COMP (D402) | 1 | $176.46 USD | View product → | |
| 6 | 31120-LCA4-E0B | STATOR COMP (D402) | 1 | $199.20 USD | View product → | |
| 7 | 32412-LLB1-900 | CABLE EARTH | 1 | $44.70 USD | View product → | |
| 8 | 90084-4H28-001-NJA | CAP ACG (Silver) | 1 | $0.78 USD | View product → | |
| 9 | 9008A-LLB1-900 | CAP R COVER | 1 | $44.04 USD | View product → | |
| 10 | 91303-3G77-001 | O-RING 13.8*2.5 | 1 | $4.92 USD | View product → | |
| 11 | 91304-GHC8-004 | O RING 23*2.4 | 1 | $4.92 USD | View product → | |
| 12 | 91304-LLB1-900 | O-RING 26.5*4 | 1 | $3.27 USD | View product → | |
| 13 | 91307-0E35-001 | O RING 18*3 | 1 | $4.92 USD | View product → | |
| 14 | 92201-05025-0G | BOLT HEX 5*25 | 1 | $6.51 USD | View product → | |
| 15 | 93500-05016-0F | SCREW PAN 5*16 | 1 | $11.79 USD | View product → | |
| 16 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → | |
| 17 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → | |
| 18 | 96001-06045-06 | BOLT FLANGE SH 6*45 | 1 | $7.23 USD | View product → | |
| 19 | 96001-06125-06 | BOLT FLANGE SH 6*125 | 1 | $4.92 USD | View product → |
